Запчасти Case IH VAC11-SERIES (054) - CLUTCH ACTUATING PARTS, VAC, VA, VAO, VAH (06) - POWER TRAIN

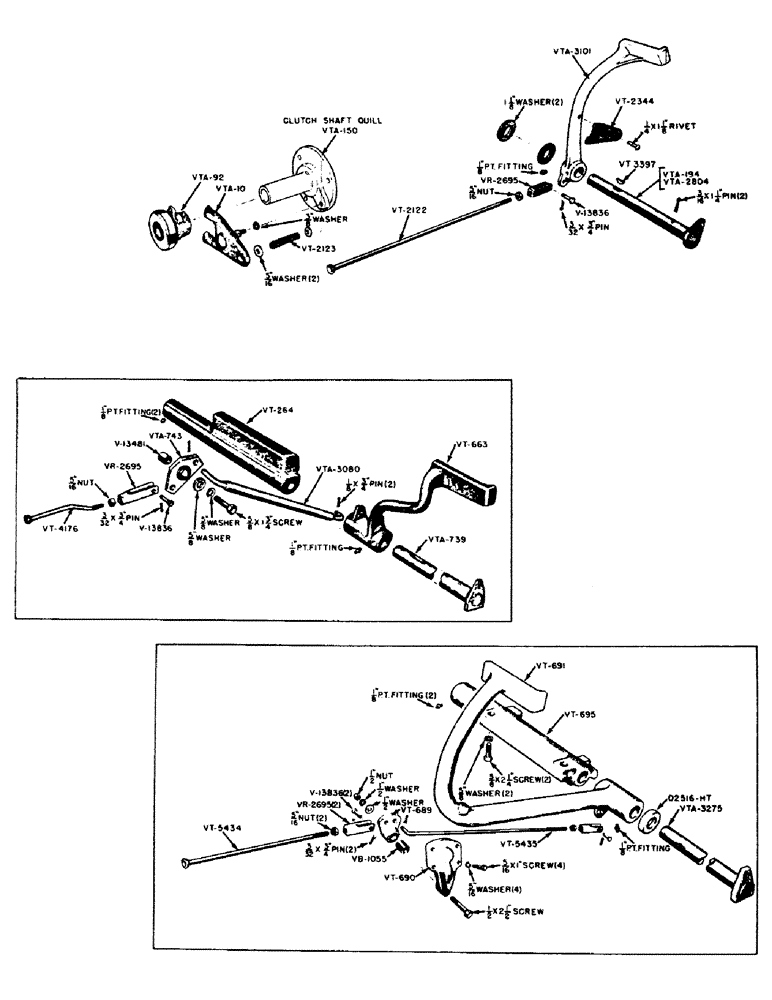

Схема запчастей Case IH VAC11-SERIES - (054) - CLUTCH ACTUATING PARTS, VAC, VA, VAO, VAH (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

O2516HT

BUSHING - shaft spacer (VAC14 only) (VAC)

1шт.

V13481

BUSHING - clutch throw-out lever (VAO)

1шт.

V13836

PIN - clevis (VAC14 uses 2) (VAC)

1-2шт.

V13836

PIN - clevis (VAC14 uses 2) (VA, VAO, VAH)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter (VAC)

1-2шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter (VA, VAO, VAH)

1шт.

VB1055

BUSHING - throw-out lever (VAC14 only) (VAC)

1шт.

VR2695

X

YOKE END (VAC14 used 2) (VAC)

1-2шт.

VR2695

X

YOKE END (VAC14 used 2) (VA, VAO, VAH)

1шт.

VT15

PEDAL - clutch (Use VTA3101)

1шт.

VT34

X

CARRIER - bearing (Use VTA92)

1шт.

VT264

HOUSING - brake shaft (VAO)

1шт.

VT267

PEDAL - clutch (Use VT663), Serial Range: -5656108

1шт.

VT653

PEDAL - clutch (Use VTA3101)

1шт.

VT663

PEDAL - clutch (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000) (VAO)

1шт.

VT689

LEVER - throw-out rod (VAC14 only) (VAC)

1шт.

VT690

FILTER CAP AND LEVER BRACKET (VAC14 only) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAC)

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" screw - cap, hex. head, U.N.C w/lockwasher and hex. nut (VAC)

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard (VAC)

1шт.

VT691

PEDAL - clutch (VAC14 only) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000) (VAC)

1шт.

VT695

HOUSING - brake shaft (VAC14 only) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000) (VAC)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher (VAC)

2шт.

VT2119

X

BEARING - release (Use VTA92)

1шт.

VT2122

X

ROD - clutch pedal (See VT5434 for VAC14) (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F., S.F. light series (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" washer - plain, S.A.E. standard (VAC, VA, VAH)

2шт.

VT2123

X

SPRING - clutch pedal rod

1шт.

VT2344

LATCH - clutch pedal (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/8" rivet - round head (VAC, VA, VAH)

1шт.

VT3397

KEY - VTA3101 pedal to shaft (VAC, VA, VAH)

1шт.

VT4176

ROD - clutch pedal (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F., S.F. light series (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/16" washer - plain, S.A.E. standard (VAO)

2шт.

VT5434

ROD - clutch pedal (VAC14 only) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F. , S.F, light series (VAC)

1шт.

NSS

NOT SOLD SEPARAT

5/16" washer - plain, S.A.W. standard (VAC)

2шт.

VT5435

THROW-OUT ROD AND PEDAL LINK (VAC14 only) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F., S.F. light series (VAC)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter (VAC)

1шт.

VTA10

X

YOKE - throw-out

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - lock

1шт.

A30215

CARRIER

RELEASE BEARING ASSEMBLY (replaced VTA92 )

1шт.

REF. VTA92 REPLACED BY A30215 AND THE BEARING IN THE CARRIER IS A29979

1шт.

VTA194

SHAFT - clutch and brake (VAC tractor before #5455000 and VAC tractors #5455500 to #5555000, VA tractors after #5555000) (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/2" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" washer - plain, S.A.E. standard

2шт.

VTA739

SHAFT - brake and clutch (VAO)

1шт.

VTA743

LEVER - clutch throw-out (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/8" washer - plain, S.A.E. standard (VAO)

1шт.

VTA2804

SHAFT - clutch and brake (VAC and VA after #5554999) (See VTA3275 for VAC14) (VAC, VA), Serial Range: 5455000-5455500

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" pin - cotter (VAC, VA)

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" washer - plain, S.A.E. standard (VAC, VA)

2шт.

VTA3080

LINK - clutch (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter (VAO)

2шт.

VTA3101

PEDAL - clutch (Includes VT2344 latch and rivet) (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000) (VAC, VA, VAH)

1шт.

VTA3275

SHAFT - clutch and brake (VAC14 only) (VAC)

1шт.

Выбрано товаров: 62
