Запчасти Case IH VAC11-SERIES (042) - ELECTRICAL LIGHTING, BEFORE TRACTOR #5400000 (04) - ELECTRICAL SYSTEMS

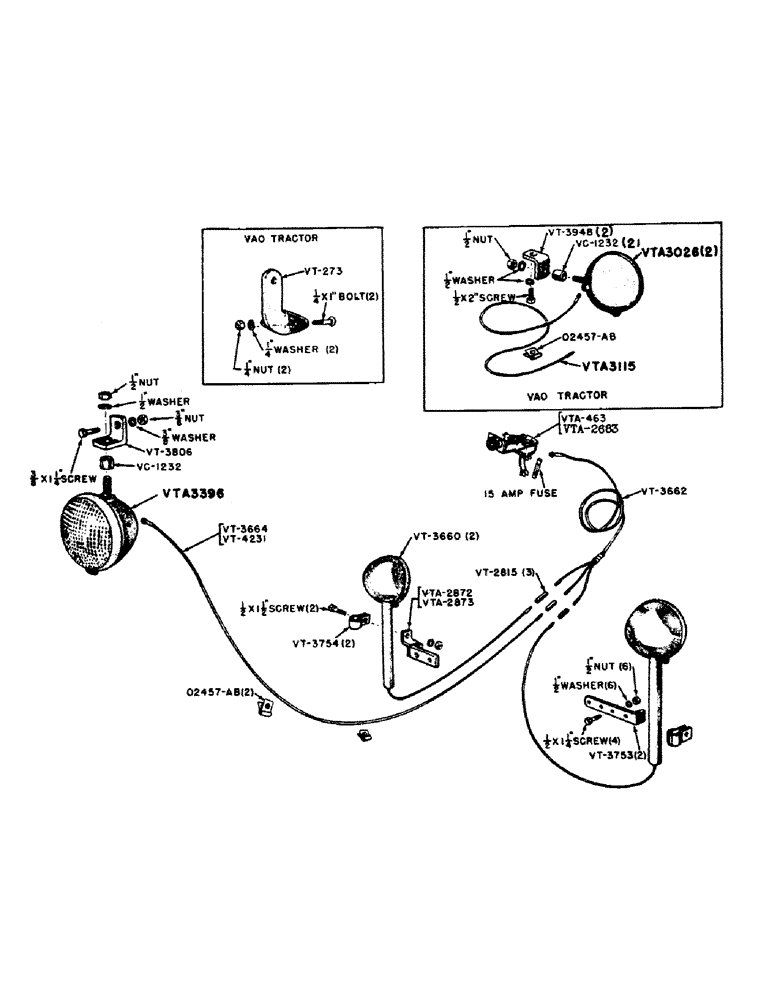

Схема запчастей Case IH VAC11-SERIES - (042) - ELECTRICAL LIGHTING, BEFORE TRACTOR #5400000 (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

O2457AB

CLIP - wire, rear light

2шт.

VC1232

BUSHING - lamp mounting (3 on VAO)

1шт.

VT273

BRACKET - mounting, tail lamp (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" carriage bolt w/hex. nut and lockwasher

2шт.

VT2815

X

CONNECTOR - light cable

3шт.

VT3660

LAMP - HEAD, R.H. and L.H. (VAC, VA, VAH)

2шт.

VT3662

CABLE - light switch to lamp cables

1шт.

VT3664

CABLE - tail lamp (VAC, VA, VAH)

1шт.

VT3753

BRACKET - mounting, head lamp (VAC, VA and VAH), Serial Range: -537000

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. hex. hd. bolt w/hex. nut and lockwasher

4шт.

VT3754

CLAMP - head lamp (VAC, VA, VAH)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex. hd. bolt w/hex. nut and lockwasher

2шт.

VT3806

BRACKET - mounting, tail lamp (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex. hd. bolt w/hex. nut and lockwasher

1шт.

VT3948

BRACKET - mounting, head lamp (VAO)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

VT4231

CABLE - tail lamp (VAO)

1шт.

VTA463

SWITCH - light, Serial Range: -5060679

1шт.

VTA2683

X

SWITCH - light, Start Serial: 5060679

1шт.

VTA2872

BRACKET - mounting, R.H. head lamp (VAC, VA and VAH), Start Serial: 536999

1шт.

VTA2873

BRACKET - mounting, L.H. head lamp (VAC, VA and VAH), Start Serial: 536999

1шт.

VTA3026

LAMP - head, R.H. and L.H. (VAO)

2шт.

NSS

NOT SOLD SEPARAT

1/2" N.C. hex. nut and lockwasher

2шт.

VTA3115

CABLE - head lamp (VAO)

1шт.

VTA3396

X

LAMP - tail and flood, combination

1шт.

Выбрано товаров: 25
