Запчасти Case IH VAC11-SERIES (034) - VTA894 CARBURETOR - ZENITH MODEL 161JX7, OUTLINE #1110 (03) - FUEL SYSTEM

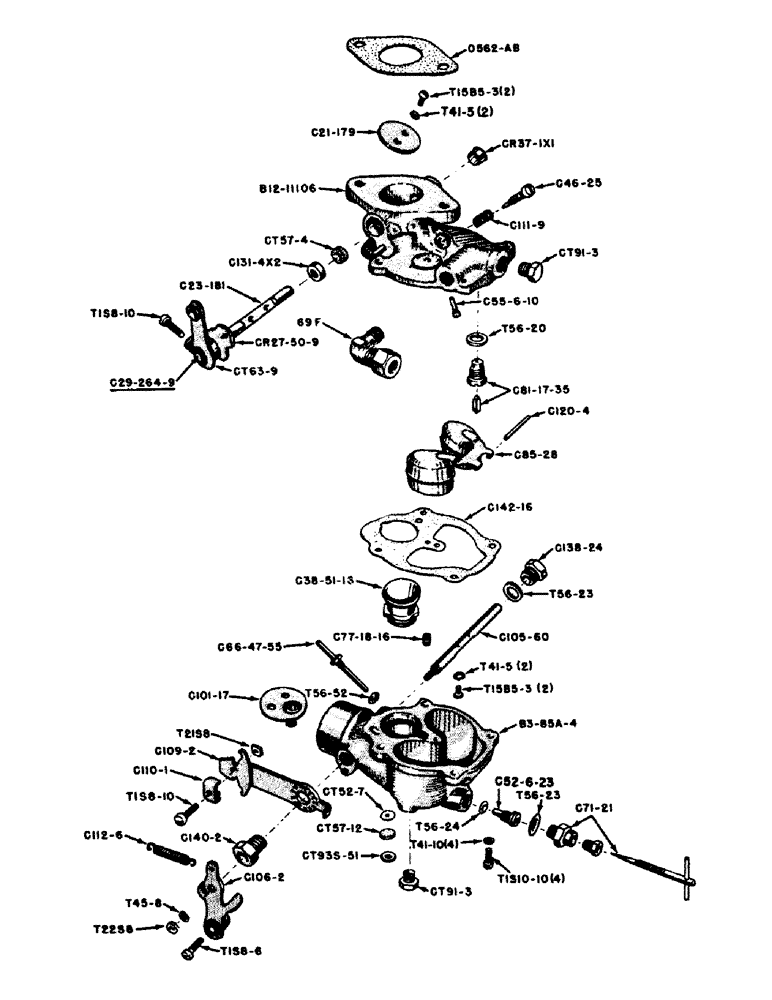

Схема запчастей Case IH VAC11-SERIES - (034) - VTA894 CARBURETOR - ZENITH MODEL 161JX7, OUTLINE #1110 (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

B12-11106

BODY - throttle, assembly

1шт.

CT57-4

WASHER - shaft packing

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

C131-4X2

RETAINER - shaft packing

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

CR37-1X1

PLUG - shaft hole

1шт.

C29-264-9

SHAFT AND LEVER - throttle

1шт.

C23-181

SHAFT - throttle

1шт.

CR27-50-9

LEVER - throttle stop

1шт.

CT63-9

TAPER PIN - lever

1шт.

T1S8-10

SCREW - lever stop

1шт.

C21-179

PLATE - throttle

1шт.

T15B5-3

SCREW - throttle plate

2шт.

Part of Service Parts Kit, P/N B51560

1шт.

T41-5

LOCKWASHER FOR T15B5-3

2шт.

C46-25

NEEDLE - idle adjusting

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

C111-9

SPRING - adjusting needle

1шт.

C85-28

FLOAT

1шт.

C120-4

AXLE - float

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

CT91-3

PLUG - 1/8" pipe (Fuel inlet)

1шт.

C142-16

GASKET -, Serial Range: bowl-body

1шт.

Part of Service Parts Kit, P/N B51560 and Gasket Kit, P/N B51491

1шт.

T1S10-10

SCREW -, Serial Range: bowl-body

4шт.

Part of Service Parts Kit, P/N B51560

1шт.

T41-10

LOCKWASHER FOR T1S10-10

4шт.

B3-85A-4

BOWL - fuel

1шт.

CT52-7

WASHER - intake drain

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

CT57-12

WASHER - drain felt

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

CT93S-51

RETAINER - felt washer

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

C105-60

SHAFT - choke

1шт.

C101-17

PLATE - choke

1шт.

T15B5-3

SCREW - choke plate

2шт.

Part of Service Parts Kit, P/N B51560

1шт.

T41-5

LOCKWASHER FOR T15B5-3

2шт.

C106-2

LEVER - choke

1шт.

T1S8-6

SCREW - swivel

1шт.

T22S8

NUT - choke shaft

1шт.

T45-8

LOCKWASHER - shaft nut

1шт.

C109-2

BRACKET - choke

1шт.

C110-1

CLAMP - bracket tube

1шт.

T1S8-10

SCREW - tube clamp

1шт.

T21S8

NUT - clamp screw

1шт.

C140-2

SCREW - bracket assembly

1шт.

C112-6

SPRING - lever

1шт.

C71-21

ADJUSTMENT - main jet

1шт.

T56-23

WASHER - adjustment fibre

1шт.

Part of Service Parts Kit, P/N B51560 and Gasket Kit, P/N B51491

1шт.

C138-24

PLUG - shaft hole

1шт.

T56-23

WASHER - shaft hole plug fibre

1шт.

Part of Service Parts Kit, P/N B51560 and Gasket Kit, P/N B51491

1шт.

CT91-3

PLUG - bowl drain (1/8" pipe)

1шт.

C38-51-16

VENTURI

1шт.

C52-6-23

JET - main

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

T56-24

WASHER - main jet fibre

1шт.

Part of Service Parts Kit, P/N B51560 and Gasket Kit, P/N B51491

1шт.

C55-6-10

JET - idle

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

C66-47-55

JET - discharge

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

T56-52

WASHER - discharge jet fibre

1шт.

Part of Service Parts Kit, P/N B51560 and Gasket Kit, P/N B51491

1шт.

C77-18-16

JET - well vent

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

C81-17-35

VALVE AND SEAT - fuel

1шт.

Part of Service Parts Kit, P/N B51560

1шт.

T56-20

WASHER - fuel valve seat fibre

1шт.

Part of Service Parts Kit, P/N B51560 and Gasket Kit, P/N B51491

1шт.

B51491

GASKET

KIT, Includes P/N's C142-16, T56-23, T56-24, T56-52 & T56-20

1шт.

B51560

KIT

service parts (Includes P/N's CT57-4, C131-4X2, T15B5-3, C46-25, C120-4, C142-16, T1S10-10, CT52-7, CT57-12, CT93S-51, T15B5-3, T56-23, T56-23, C52-6-23, T56-24,C55-6-10,C66-47-55,T56-52,C77-18-16,C81-17-35 &T56-20

1шт.

O562-AB

GASKET - flange

1шт.

Выбрано товаров: 76
