Запчасти Case IH VAC11-SERIES (032) - VT3593, VT4062 CARBURETOR - MARVEL-SCHEBLER MODEL TSX-114, TSX-253 (03) - FUEL SYSTEM

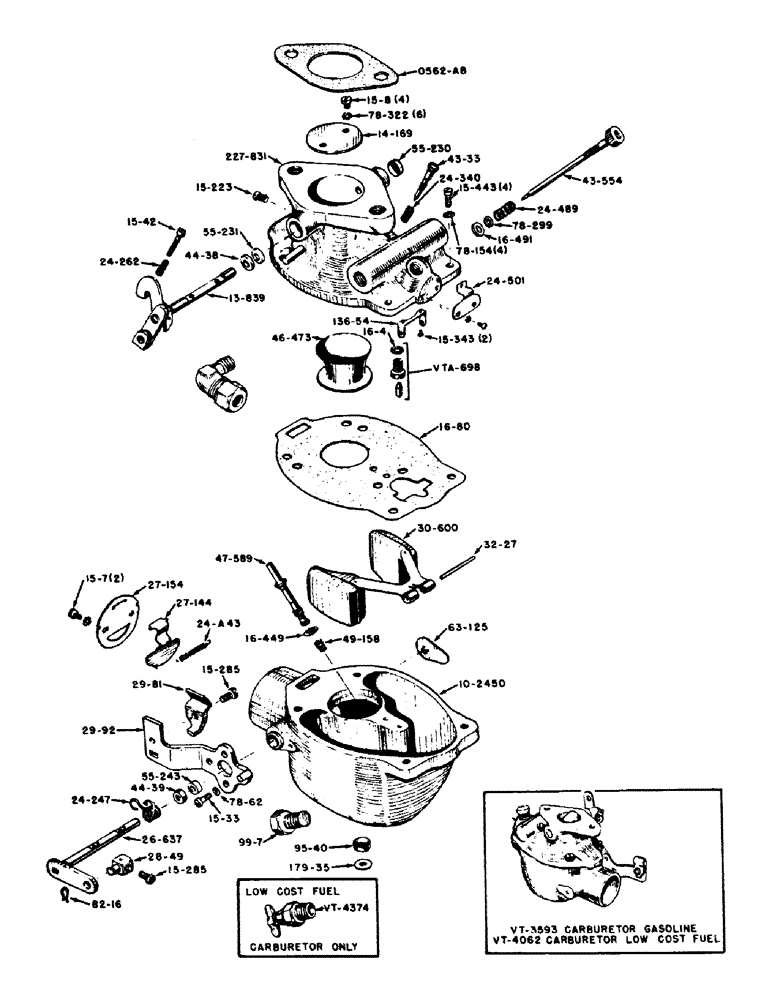

Схема запчастей Case IH VAC11-SERIES - (032) - VT3593, VT4062 CARBURETOR - MARVEL-SCHEBLER MODEL TSX-114, TSX-253 (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

10-2450

CARBURETOR BODY ASSEMBLY

1шт.

13-839

THROTTLE SHAFT - throttle stop, and lever

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

14-169

FLY - throttle

1шт.

15-7

BALL BEARING,2.25" ID x 3.5625" OD x 1.969"

SCREW

2шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

15-8

BALL

SCREW

4шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

15-33

BEARING

SCREW

1шт.

15-42

SCREW

1шт.

15-223

SCREW

1шт.

15-285

SCREW

2шт.

15-343

SCREW

2шт.

15-443

SCREW

4шт.

16-4

GASKET

1шт.

Part of Gasket Kit, P/N VTA690

1шт.

16-80

CARRIER

GASKET

1шт.

Part of Gasket Kit, P/N VTA690

1шт.

16-449

GASKET

1шт.

Part of Gasket Kit, P/N VTA690

1шт.

16-491

GASKET

1шт.

Part of Gasket Kit, P/N VTA690

1шт.

24-A43

SPRING

1шт.

24-247

SPRING

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

24-262

SPRING

1шт.

24-340

SPRING

1шт.

24-489

SPRING

1шт.

24-501

HIGH SPEED ADJUSTING SPRING ASSEMBLY

1шт.

26-637

CHOKER SHAFT AND LEVER ASSEMBLY

1шт.

27-144

CHOKER FLY FLAPPER

1шт.

27-154

CHOKER FLY

1шт.

28-49

CHOKER SWIVEL

1шт.

29-81

CHOKER BRACKET CLIP

1шт.

29-92

CHOKER BRACKET

1шт.

30-600

FLOAT AND LEVER ASSEMBLY

1шт.

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

FLOAT LEVER SHAFT

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

B51788

NEEDLE

IDLER ADJUSTING NEEDLE ( replaced 43-33 )

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

43-554

HIGH SPEED NEEDLE ASSEMBLY

1шт.

44-38

PACKING

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

44-39

PACKING

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

46-473

VENTURI

1шт.

47-589

NOZZLE

1шт.

B51828

JET

(Idle) (replaced 49-101-I)

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

49-145

JET (Economizer)

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

B51830

JET (Power) (replaced 49-158)

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

55-230

CAP

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

55-231

RETAINER

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

55-243

RETAINER - packing

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

63-125

PLATE - name

1шт.

78-62

WASHER - lock #8

1шт.

78-154

WASHER - lock #12

4шт.

78-299

WASHER - plain

1шт.

78-322

WASHER - lock

6шт.

82-16

PIN - cotter

1шт.

95-40

WASHER,2 1/2" x 5" x .238"

STRAINER

1шт.

99-7

PLUG - drain (Gasoline carburetor only)

1шт.

136-54

PIN

BRACKET - float

1шт.

179-35

PLUG

1шт.

227-831

THROTTLE BODY ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

5/16" O.D. x 1/8" complete elbow with sleeve and nut

1шт.

O562AB

X

GASKET - carburetor

1шт.

VT4374

COCK - drain (Low cost fuel carburetor only)

1шт.

A30241

GASKET KIT

Includes: PN 16-4, PN 16-80, PN 16-449, PN 16-491 (replaced VTA690)

1шт.

Part of Carburetor Repair Kit, P/N VTA697

1шт.

A30243

KIT

CARBURETOR REPAIR KIT Includes: PN 13-839, PN 15-7, PN 15-8, PN 24-247, PN 32-27, PN 43-33, PN 44-38, PN 44-39, PN 49-101-I, PN 49-145, PN 49-158, PN 55-230, PN 55-231, PN 55-243, PN VTA690 (replaced VTA697)

1шт.

VTA698

X

FLOAT - valve, seat and gasket assembly

1шт.

Выбрано товаров: 77
