Запчасти Case IH VAC11-SERIES (026) - GOVERNOR AND THROTTLE LINKAGE, VAC AND VAH TRACTOR #5570000 & AFTER (03) - FUEL SYSTEM

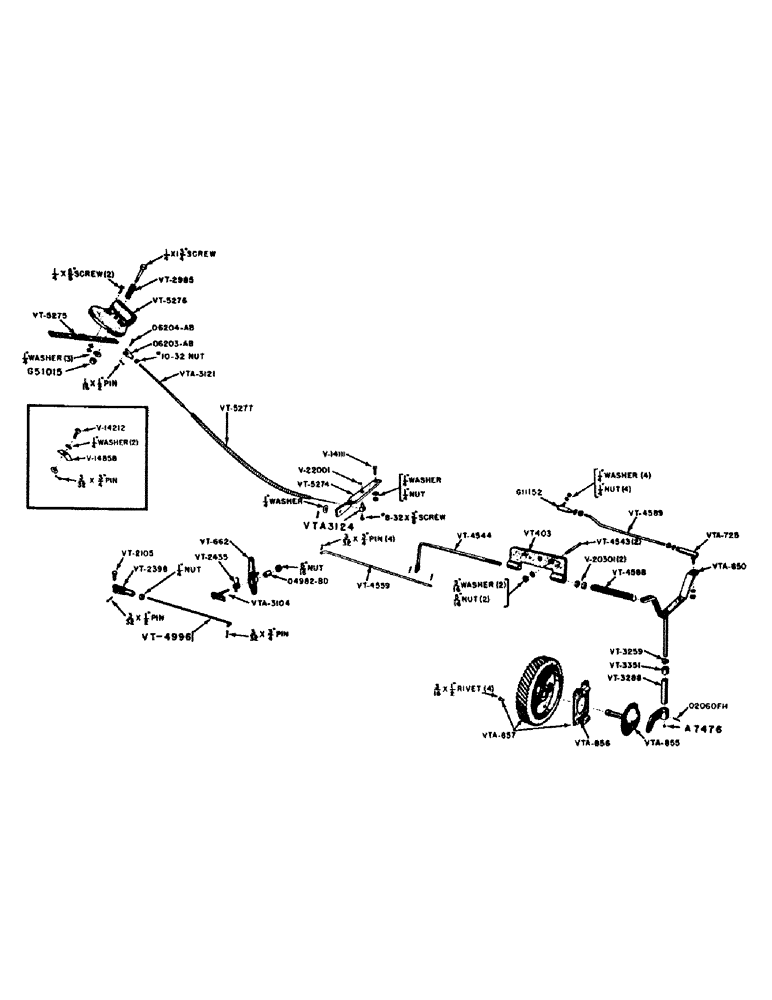

Схема запчастей Case IH VAC11-SERIES - (026) - GOVERNOR AND THROTTLE LINKAGE, VAC AND VAH TRACTOR #5570000 & AFTER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A7456

X

BALL - thrust, governor shaft (3/16" dia.)

1шт.

G11152

X

BALL AND SOCKET ASSEMBLY - throttle, Serial Range: rod-carburetor

1шт.

G51015

NUT - stop, throttle lever spring (1/4" N.C.)

1шт.

O6203AB

X

YOKE END (VAC 11, 12 and 13 only)

1шт.

6204AB

PIN - clevis (VAC 11, 12 and 13 only)

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 1/2" cotter pin

1шт.

4982BD

SPACER - control lever

1шт.

2060FH

ROLL PIN - governor arm shaft to lever (1/8" x 3/4")

1шт.

V14111

BOLT - pivot

1шт.

NSS

NOT SOLD SEPARAT

1/4" N.F. hex, nut and I.T. Shakeproof lockwasher

1шт.

V14212

SHIELD

RIVET - drilled (Use VT2985 w/1/4" x 1-3/4" N.C. hex. hd. bolt and G51015 stop nut)

1шт.

V14858

HANDLE

SPRING - throttle lever (Use VT2985 spring w/1/4" x 1-3/4" N.C. hex. hd. bolt and G51015 stop nut)

1шт.

V20301

LOCK WASHER

NUT - governor rod

2шт.

V22001

COTTER - hair pin, control rod swivel

1шт.

VT336

GUIDE - control rod (Use VT403)

1шт.

VT403

GUIDE - control rod

1шт.

VT662

LEVER - speed control

1шт.

VT2105

X

PIN - clevis, foot feed link

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 1/2" cotter pin

1шт.

VT2398

X

END - adjustable yoke

1шт.

VT2435

X

SPRING - foot feed

1шт.

VT2985

X

SPRING - throttle lever (VAC 11, 12, and 13 only)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" N.C. hex hd. bolt w/plain washer

1шт.

VT3259

X

SEAL - dust, governor shaft

1шт.

VT3288

X

SPACER - thrust, governor shaft

1шт.

VT3351

X

BEARING - governor shaft (Torrington #B610)

1шт.

VT4543

X

STUD - governor rod guide (5/16" x 1-1/2")

2шт.

NSS

NOT SOLD SEPARAT

5/16" N.F. hex, nut and lockwasher

2шт.

VT4544

ROD - governor control

1шт.

VT4559

ROD - governor control, Serial Range: rod-lever

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

3шт.

NSS

NOT SOLD SEPARAT

1/4" plain washer

1шт.

VT4588

X

SPRING - governor

1шт.

VT4589

ROD - governor, Serial Range: arm-throttle

1шт.

NSS

NOT SOLD SEPARAT

1/4" N.F. hex. nut and I.T. Shakeproof lockwasher

2шт.

VT4996

LINK - foot feed

1шт.

NSS

NOT SOLD SEPARAT

1/4" N.F. hex. nut

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

VT5274

LEVER - throttle control rod

1шт.

VT5275

LEVER - hand, throttle (VAC, 11, 12 and 13 only)

1шт.

VT5276

QUADRANT - hand lever (VAC 11, 12 and 13 only)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

VT5277

LOOM - throttle control rod (VAC 11, 12 and 13 only)

1шт.

VTA725

BALL JOINT

BALL AND SOCKET ASSEMBLY - throttle rod to governor arm

1шт.

VTA850

X

LEVER AND ARM ASSEMBLY - governor

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY

1шт.

VTA856

GOVERNOR WEIGHT ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1/2" rd. hd. rivet

4шт.

VTA857

X

CAMSHAFT GEAR AND GOVERNOR WEIGHT ASSEMBLY

1шт.

VTA3104

BOLT - foot feed spring

1шт.

NSS

NOT SOLD SEPARAT

5/16" N.C. hex. jam nut.

1шт.

VTA3121

X

THROTTLE ROD ASSEMBLY (VAC 11, 12 and 13 only)

1шт.

VTA3124

SWIVEL ASSEMBLY - control rod (Includes V22001 cotter and #8-32 x 3/8" set screw) (VAC 11, 12 and 13 only)

1шт.

Выбрано товаров: 53
