Запчасти Case IH VAC11-SERIES (024) - GOVERNOR AND THROTTLE LINKAGE, ALL TRACTORS EXCEPT VAC AFTER, NO. 5570000 (03) - FUEL SYSTEM

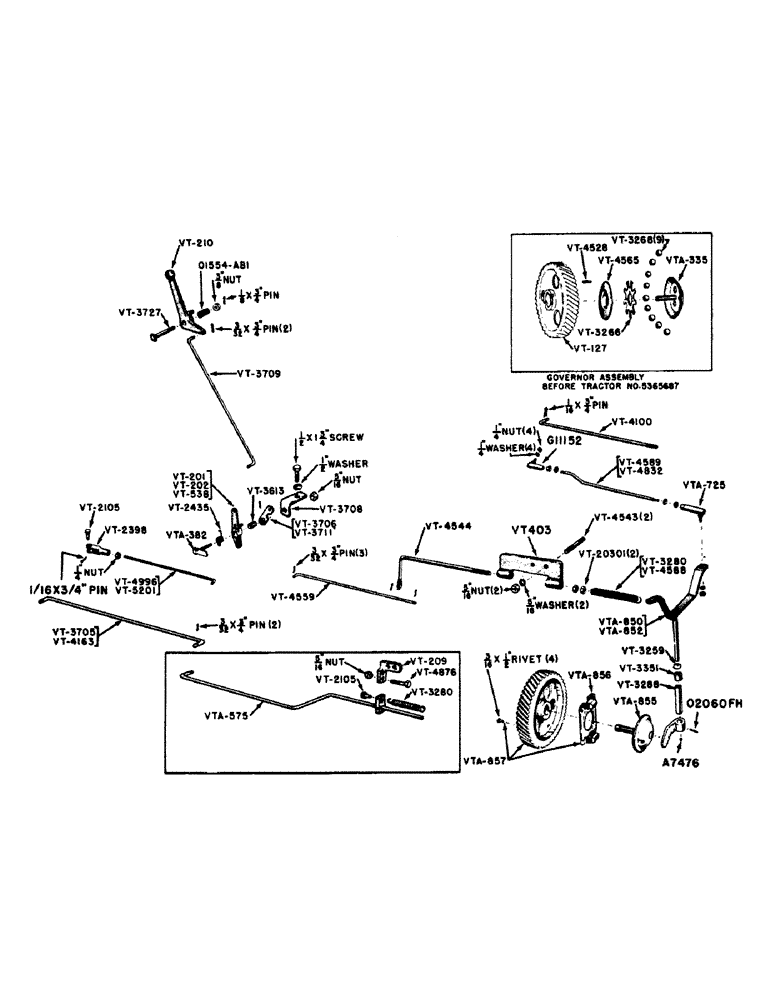

Схема запчастей Case IH VAC11-SERIES - (024) - GOVERNOR AND THROTTLE LINKAGE, ALL TRACTORS EXCEPT VAC AFTER, NO. 5570000 (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A7476

X

BALL - 3/16"

1шт.

G11152

X

BALL AND SOCKET ASSEMBLY, Start Serial: 5365686

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.F. with lockwasher

1шт.

O1554AB1

X

SPRING - tension bolt

1шт.

O2060FH

X

ROLL PIN - VTA850 lever and arm assembly (1/8" x 3/4")

1шт.

V20301

LOCK WASHER

NUT - governor rod

2шт.

VT127

X

GEAR - timing, Serial Range: -5365687

1шт.

VT201

LEVER - speed control (with portable cylinder) (VAC, VA & VAO), Serial Range: -5370000

1шт.

VT202

LEVER - speed control (Engines before #A4700000)

1шт.

VT209

STOP - control rod (Engines before #A4700000)

1шт.

VT210

LEVER - hand speed control (Engines before #A4700000)

1шт.

VT336

GUIDE - control rod (Use VT403)

1шт.

VT403

GUIDE - control rod

1шт.

VT538

LEVER - speed control (Engines after #A4700000)

1шт.

VT2105

X

PIN - clevis (VAC, VA, & VAH), Start Serial: 5370000

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 3/4" pin - cotter (VAC, VA & VAH)

1шт.

VT2398

X

END - adjustable yoke (VAC, VA & VAH), Start Serial: 5370000

1шт.

VT2435

X

SPRING - foot feed

1шт.

VT3259

X

SEAL - dust, felt - governor shaft

1шт.

VT3266

DRIVER - ball, governor, Serial Range: -5365687

1шт.

VT3268

BALL - 3/4", Serial Range: -5365687

9шт.

VT3280

X

SPRING - governor, Serial Range: -5365687

1шт.

VT3288

X

SPACER - thrust, rocker arm

1шт.

VT3351

X

BEARING - (Torrington #B610) rocker shaft

1шт.

VT3613

BUSHING - speed control lever

1шт.

VT3705

LINK - foot feed (VAC, VA & VAH), Serial Range: -5370000

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter

2шт.

VT3706

LEVER - hand control, Serial Range: -5370000

1шт.

VT3708

BRACKET - speed control lever, Serial Range: -5370000

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

VT3709

ROD - hand control

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter

2шт.

VT3711

LEVER - hand control, Start Serial: 5370000

1шт.

VT3727

BOLT - tension, control handle

1шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

1шт.

VT4100

ROD - throttle (Gasoline engines before #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.F.

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 3/4" pin - cotter

1шт.

VT4163

LINK - foot feed (VAO), Serial Range: -5367720

1шт.

VT4528

PIN - 1/8" dia. x 1/4", Serial Range: -5365687

1шт.

VT4543

X

STUD - governor rod guide, 5/16" x 1-1/2"

2шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F. with lockwasher

2шт.

VT4544

ROD - governor control (Engines after #A4700000)

1шт.

VT4559

ROD - governor control (Engines after #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter

3шт.

VT4565

RACE - inner governor, Serial Range: -5365687

1шт.

VT4588

X

SPRING - governor, Start Serial: 5365686

1шт.

VT4589

ROD - throttle, Start Serial: 5365686

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.F.

2шт.

NSS

NOT SOLD SEPARAT

1/4" washer - Shakeproof, I.T.

2шт.

VT4832

ROD - throttle (All low cost fuel manifold engines; gasoline engines after #A4700000 to tractor #5365687), Serial Range: -5365687

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.F.

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 3/4" pin - cotter

1шт.

VT4876

SCREW - adjusting, governor stop (Engines before #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon jam, U.N.F.

1шт.

VT4996

LINK - foot feed (VAC, VA & VAH), Start Serial: A4700000

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.F. (VAC, VA & VAH)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter (VAC, VA & VAH)

1шт.

VT5201

LINK - foot feed (VAO), Start Serial: 5367719

1шт.

VTA335

GOVERNOR SHAFT AND UPPER RACE, Serial Range: -5365687

1шт.

VTA382

BOLT - spring

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.C.

1шт.

VTA575

ROD - control (Engines before #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter

1шт.

VTA725

BALL JOINT

BALL AND SOCKET ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.F. with lockwasher

1шт.

A30125

SHAFT

LEVER AND ARM ASSEMBLY (Engines after #A4700000) (replaced VTA850)

1шт.

VTA852

LEVER AND ARM ASSEMBLY, Start Serial: 5365686

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY, Start Serial: 5365686

1шт.

VTA856

GOVERNOR WEIGHT ASSSEMBLY, Start Serial: 5365686

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1/2" rivet - round head

4шт.

VTA857

X

GOVERNOR WEIGHT AND DRIVE GEAR, Start Serial: 5365686

1шт.

Выбрано товаров: 73
