Запчасти Case IH VAC11-SERIES (023) - AUXILIARY FUEL TANK, LOW COST FUEL (03) - FUEL SYSTEM

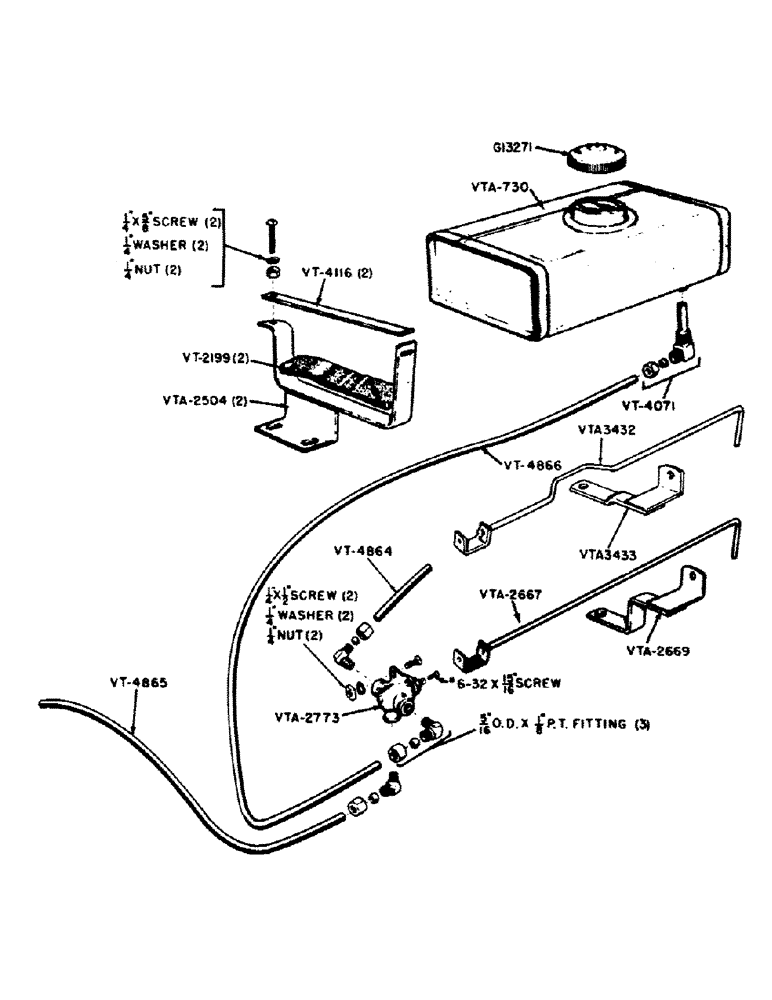

Схема запчастей Case IH VAC11-SERIES - (023) - AUXILIARY FUEL TANK, LOW COST FUEL (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

G13271

CAP

- priming tank

1шт.

VT2199

FELT - fuel tank

2шт.

VT4071

STRAINER - fuel tank (Includes 60F - 5/16" sleeve and 61F - 5/16" nut)

1шт.

VT4116

CLAMP - priming tank

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. with square nut and lockwasher

2шт.

VT4864

LINE - fuel, three way valve to main tank

1шт.

NSS

NOT SOLD SEPARAT

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-F)

1шт.

VT4865

LINE - fuel, three-way, Serial Range: valve-carburetor

1шт.

NSS

NOT SOLD SEPARAT

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-F)

1шт.

VT4866

LINE - fuel, three valve to priming tank

1шт.

NSS

NOT SOLD SEPARAT

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-F)

1шт.

VTA730

TANK - priming, with cap

1шт.

VTA2504

BRACKET - priming tank

2шт.

VTA2667

CONTROL - valve

1шт.

VTA2669

BRACKET - control valve

1шт.

VTA2773

VALVE - three-way, complete

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" screw - machine, round head, U.N.C. with square nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

#6-32 x 15/16" screw - cap, hex. head (Steel)

1шт.

VTA3432

ROD - control 3-way valve (VAC14 and VAO15)

1шт.

VTA3433

DIAL - control rod, 3-way valve (VAC14 and VAO15)

1шт.

Выбрано товаров: 20
