Запчасти Case IH VAC11-SERIES (022) - MAIN FUEL TANK, VAC, VA, VAO, VAH (03) - FUEL SYSTEM

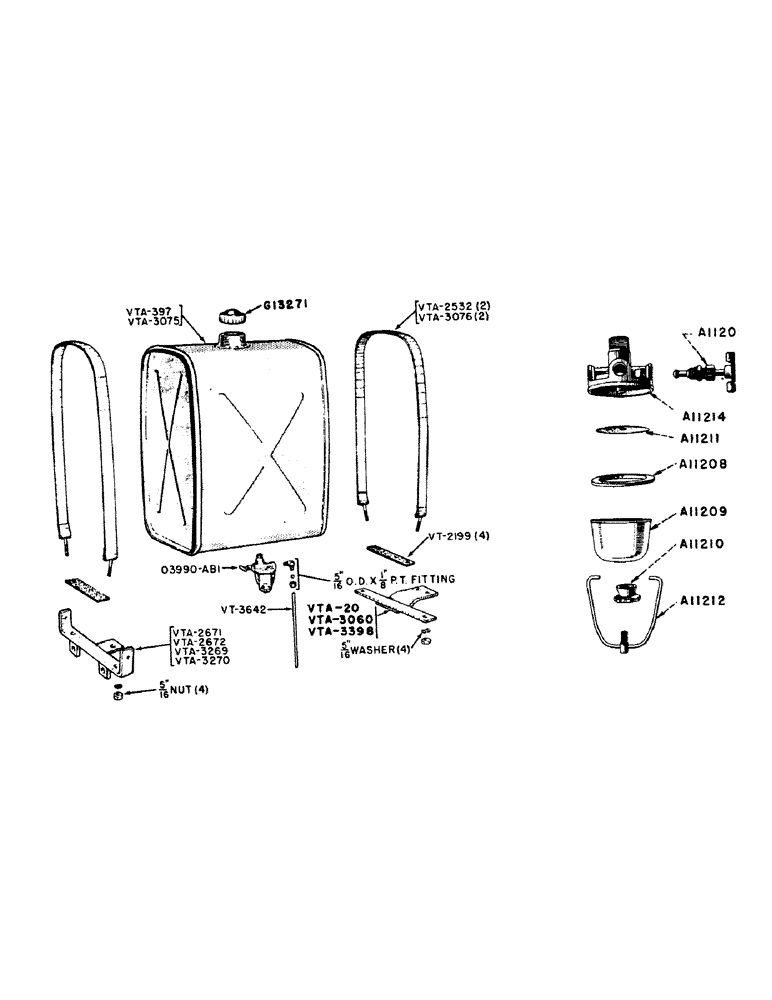

Схема запчастей Case IH VAC11-SERIES - (022) - MAIN FUEL TANK, VAC, VA, VAO, VAH (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

G13271

CAP

- fuel tank

1шт.

O3990AB1

X

STRAINER - fuel, complete

1шт.

VT2199

FELT - fuel tank

4шт.

VT3642

LINE - fuel

1шт.

NSS

NOT SOLD SEPARAT

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-F)

1шт.

VTA20

BRACKET - support, rear (VAC), Serial Range: -5570000

1шт.

VTA397

TANK - fuel (VAC), Serial Range: -5570000

1шт.

VTA2532

STRAP - fuel tank, front and rear (VAC), Serial Range: -5570000

2шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.C. with lockwasher

4шт.

VTA2671

BRACKET - fuel tank, front (Gasoline manifolds) (VAC), Serial Range: -5570000

1шт.

VTA2672

BRACKET - fuel tank, front (Low cost fuel manifolds) (VAC), Serial Range: -5570000

1шт.

VTA3060

BRACKET - mounting, rear (VAC), Start Serial: 5570000

1шт.

VTA3075

TANK - fuel with cap (VAC), Start Serial: 5570000

1шт.

VTA3076

STRAP - fuel tank (VAC), Start Serial: 5570000

2шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.C. with lockwasher (VAC)

4шт.

VTA3269

SUPPORT - fuel tank, front (Low cost fuel manifolds) (VAC), Start Serial: 5570000

1шт.

VTA3270

SUPPORT - fuel tank, front (Gasoline manifold) (VAC), Start Serial: 5570000

1шт.

VTA3398

BRACKET - mounting, rear (VAC14) (VAC)

1шт.

A11205

VALVE

- fuel strainer, parts for 039901AB1

1шт.

A11208

GASKET

- fuel strainer, parts for 039901AB1

1шт.

A11209

BOWL

- fuel strainer, parts for 039901AB1

1шт.

A11210

ADJUSTER

CUP AND NUT - fuel strainer, parts for 039901AB1

1шт.

A11211

FILTER SCREEN

SCREEN ASSEMBLY - fuel strainer, parts for 039901AB1

1шт.

A11212

BAIL

ASSEMBLY - fuel strainer, parts for 039901AB1

1шт.

A11214

HEAD

- fuel strainer, parts for 039901AB1

1шт.

Выбрано товаров: 25
