Запчасти Case IH VAC11-SERIES (021) - AIR CLEANER, VAC, VA, VAO, VAH (02) - ENGINE

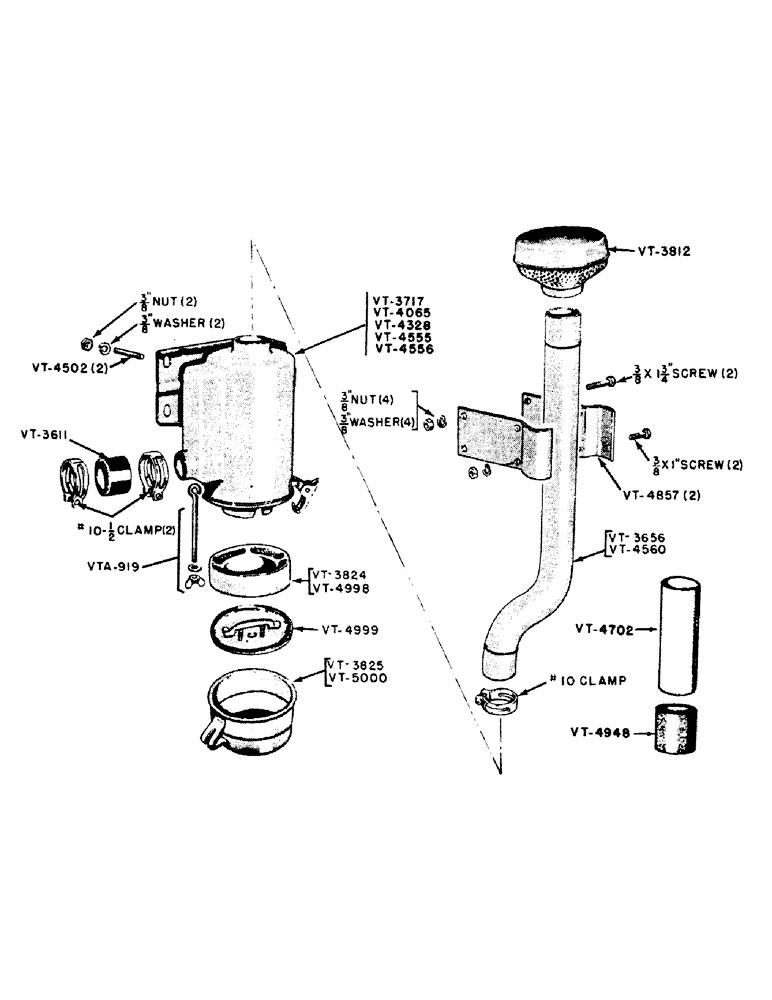

Схема запчастей Case IH VAC11-SERIES - (021) - AIR CLEANER, VAC, VA, VAO, VAH (02) - ENGINE

Артикул

Название

Примечание

Количество

VT3611

X

CONNECTOR - hose

1шт.

NSS

NOT SOLD SEPARAT

#10 - 1/2" clamp - standard hose, with bolt and nut

2шт.

VT3656

PIPE - inlet (Used with VT128 manifold) (VAC, VA & VAH)

1шт.

VT3717

AIR CLEANER - complete (Used with VT128 manifold) (VAC, VA & VAH)

1шт.

VT3812

X

CAP - inlet

1шт.

VT3824

CHAMBER (For VT3717, VT4065, VT4328, and VT4376 cleaners)

1шт.

VT3825

CUP (For VT3717, VT4065, VT4328, and VT4376 cleaners)

1шт.

VT4065

AIR CLEANER - complete (Used with VT128 manifolds) (VAO)

1шт.

VT4328

AIR CLEANER - complete (Low cost fuel engines before #A4700000)

1шт.

VT4502

STUD - air cleaner, 3/8" x 1-1/8"

2шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C. with lockwasher

2шт.

VT4555

AIR CLEANER - complete (Engines after #A4700000) (VAC, VA & VAH)

1шт.

VT4556

AIR CLEANER - complete (Engines after #A4700000) (VAC14 optional) (VA & VAO)

1шт.

VT4560

PIPE - inlet (Engines after #A4700000) (VAC, VA & VAH)

1шт.

NSS

NOT SOLD SEPARAT

#10 CLAMP - standard hose, with bolt and nut (VAC, VA & VAH)

1шт.

VT4702

EXTENSION - pipe, air cleaner (VAC14, VAO15) (VAC & VAO)

1шт.

VT4857

X

CLAMP - inlet (VAC, VA & VAH)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher (VAC, VA & VAH)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher (VAC, VA & VAH)

2шт.

A30074

HOSE

- VT4702 to VT4555) - 1 #12 hose clamp 2 (VAC & VAO) (replaced VT4948)

1шт.

VT4998

X

PRE-FILTER (For VT4555 and VT4556 cleaners)

1шт.

VT4999

BAFFLE (For VT4555 and VT4556 cleaners)

1шт.

VT5000

CUP (For VT4555 and VT4556 cleaners)

1шт.

VTA919

EYEBOLT - lockwasher, and wing nut assembly

1шт.

Выбрано товаров: 24
