Запчасти Case IH VAC11-SERIES (165) - TIRE PUMP (88) - ACCESSORIES

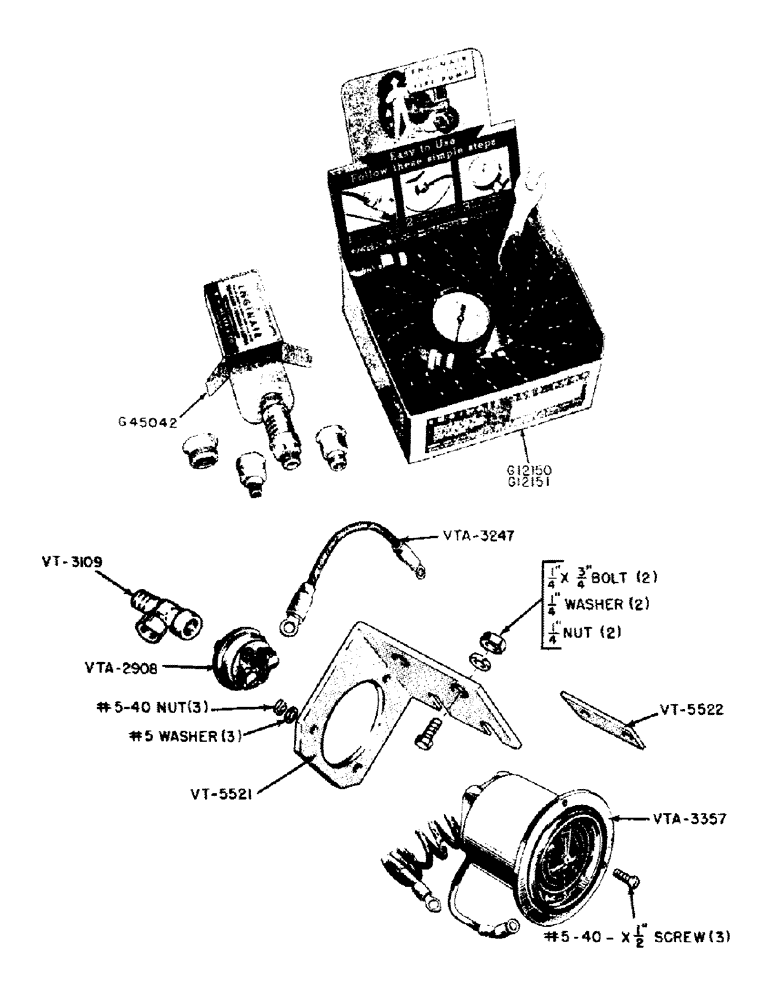

Схема запчастей Case IH VAC11-SERIES - (165) - TIRE PUMP (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

G12150

KIT - tire pump (Includes 12' hose w/wrench and G45042 pumping unit)

1шт.

G12151

KIT - tire pump (Includes 16' hose w/gauge, wrench and G45042 pumping unit)

1шт.

G45042

KIT - pumping unit

1шт.

VT3109

FITTING - tee, pressure switch (Imperial Brass #127B - 1/8" x 1/8" x 1/8"), engine hour meter

1шт.

VT5521

BRACKET - mounting, hourmeter, engine

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. hex hd. bolt w/hex. nut and lockwasher, engine hour meter

2шт.

VT5522

SHIM - mounting bracket, engine hour meter

1шт.

VTA2908

SWITCH - pressure, engine hour meter

1шт.

VTA3247

CABLE - switch to ground, engine hour meter

1шт.

VTA3357

HOURMETER, engine

1шт.

NSS

NOT SOLD SEPARAT

#5 - 40 x 1/2" rd. hd. mach. screw w/hex. nut and lockwasher, engine hour meter

3шт.

Выбрано товаров: 11
