Запчасти Case IH VAC11-SERIES (048) - HOOD, GRILLE & SIDE SHEETS, ALL TRACS. EXCEPT VAC AFTER NO. 5570000, VAC, VA, VAO, VAH (09) - CHASSIS

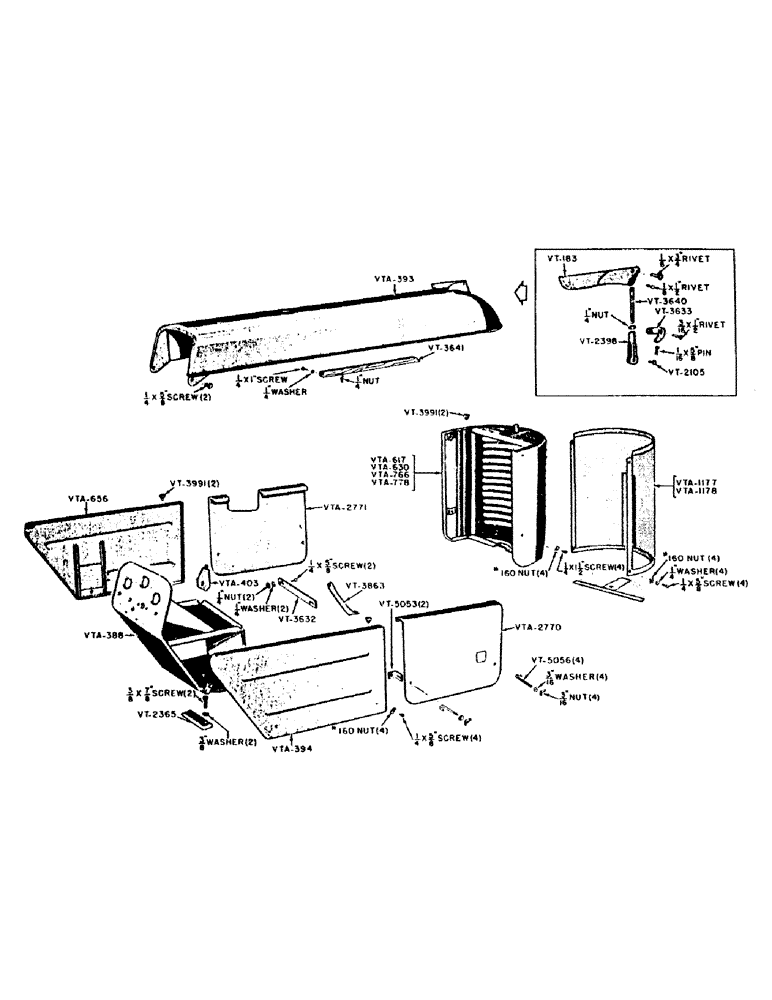

Схема запчастей Case IH VAC11-SERIES - (048) - HOOD, GRILLE & SIDE SHEETS, ALL TRACS. EXCEPT VAC AFTER NO. 5570000, VAC, VA, VAO, VAH (09) - CHASSIS

Артикул

Название

Примечание

Количество

VT183

ARM - locking

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1/2" rivet - round head (Arm to lock yoke rod)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" rivet - round head (Arm to hood assembly)

1шт.

VT2105

X

RIVET - drilled

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 5/8" pin - cotter

1шт.

VT2365

REINFORCEMENT - instrument panel (VAC, VA, VAO), Serial Range: -5169026

1шт.

VT2398

X

YOKE - lock

1шт.

VT3632

BRACE - side sheet

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. with square nut lockwasher

2шт.

VT3633

LOCK - hood

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1/2" rivet - round head

1шт.

VT3640

ROD - lock yoke

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon, U.N.C.

1шт.

VT3641

SUPPORT - hood

1шт.

NSS

NOT SOLD SEPARAT

1/4" nut - wing, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" screw - machine, round head, U.N.C. with lockwasher

1шт.

VT3829

BRACKET - engine side cover (For VTA570 and VTA571 side sheets) (VAC, VA, VAH)

2шт.

VT3833

CLIP - spring (For VTA570 and VTA571 side sheets) (VAC, VA, VAH)

2шт.

VT3863

BRACE - side sheet

1шт.

VT3991

CUSHION - rubber

4шт.

VT5053

BRACKET - engine side cover (For VTA2770 and VTA2771 side sheets)

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. with square nut and L.W.

2шт.

VT5056

BOLT - hook, side sheet bracket (For VTA2770 and VTA2771 side sheets)

4шт.

NSS

NOT SOLD SEPARAT

3/16" nut - wing, U.N.C.

4шт.

NSS

NOT SOLD SEPARAT

3/16" washer - plain, S.A.E. standard

4шт.

VTA388

PANEL - instrument assembly

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 7/8" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VTA393

HOOD ASSEMBLY WITH LOCK AND SUPPORT(Complete)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - self-tapping, hexagon head

2шт.

VTA394

SIDE SHEET ASSEMBLY - right-hand

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C.

2шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed

2шт.

VTA403

PLATE - cover, ammeter and starting switch mountings

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. with square nut and lockwasher

1шт.

VTA570

COVER - engine, right-hand (Use VTA2770)

1шт.

VTA571

COVER - engine, left-hand (Use VTA2771)

1шт.

VTA617

GRILLE - radiator (Not for VAC single front wheel) (VAC, VAH), Start Serial: 4829408

1шт.

VTA630

GRILLE - radiator (VAC, VA), Serial Range: -4829408

1шт.

VTA656

SIDE SHEET ASSEMBLY - left-hand

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C.

2шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed

2шт.

VTA766

GRILLE - radiator (Single front wheel only) (VAC)

1шт.

VTA778

GRILLE - radiator (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" screw - machine, round head, U.N.C.

4шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed

4шт.

VTA1177

GRILLE SCREEN ATTACHMENT (VAC single front wheel) (Machinery item) (VAC)

1шт.

VTA1178

TRASH AND GRILLE SCREEN ATTACHMENT (Not for VAC single) (Machinery item)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. (VA, VAO, VAH) 1/4" x 5/8" screw - machine, round head, U.N.C. (VAC)

5шт.

NSS

NOT SOLD SEPARAT

1/4" washer - plain, S.A.E. standard

4шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed (VA, VAO, VAH) #160 nut - speed (VAC)

5шт.

VTA2770

COVER - engine side, right-hand (VAC, VA, VAH)

1шт.

VTA2771

COVER - engine side, left-hand (VAC, VA, VAH)

1шт.

Выбрано товаров: 52
