Запчасти Case IH VAC11-SERIES (132) - VTA1151B CONTROL VALVE (08) - HYDRAULICS

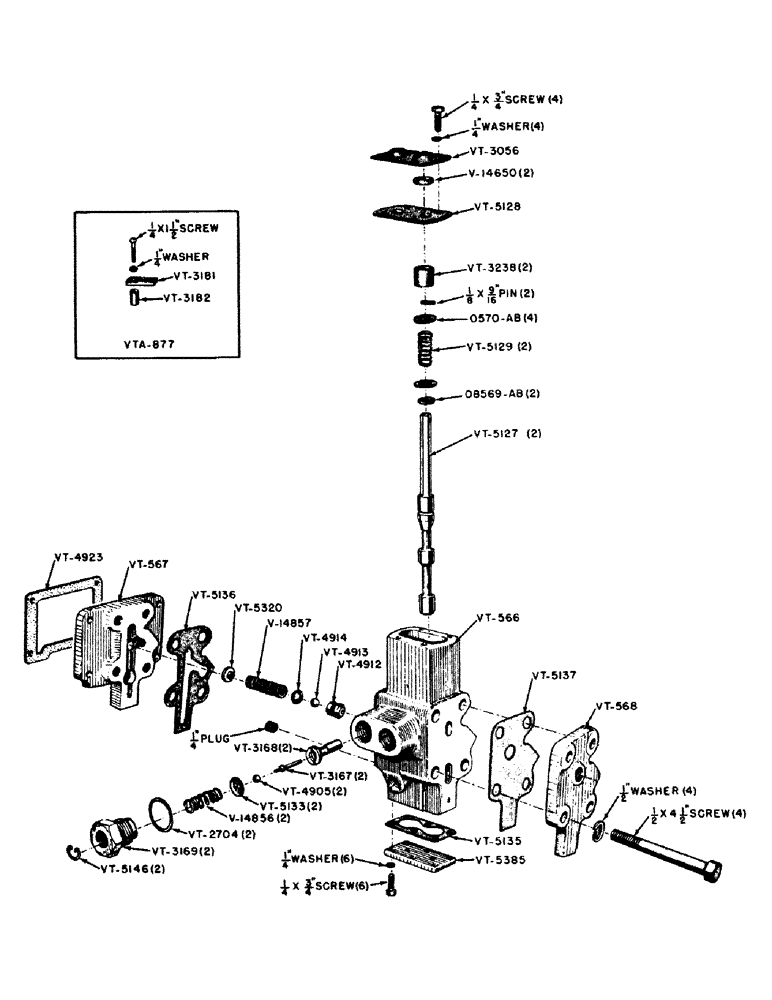

Схема запчастей Case IH VAC11-SERIES - (132) - VTA1151B CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

O570AB

WASHER

4шт.

O8569AB

X

"O" RING

2шт.

V14650

SEAL - dust, felt

2шт.

V14856

HANDLE

SPRING - check valve

2шт.

V14857

HANDLE

SPRING - relief valve

1шт.

VT566

CONTROL BODY

1шт.

NSS

NOT SOLD SEPARAT

1/4" P.T. plug - pipe, countersunk pattern

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 4-1/2" screw - cap, hexagon head, U.N.C with lockwasher

4шт.

VT567

ADAPTER

1шт.

VT568

COVER - end

1шт.

VT2704

GASKET

2шт.

VT3056

SHIELD - dust seal

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hexagon head, U.N.C. with lockwasher

4шт.

VT3167

ROD - check valve

2шт.

VT3168

VALVE - check

2шт.

VT3169

PLUG - check valve spring

2шт.

VT3181

STOP - valve (See VTA877)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" screw - machine, round head, with lockwasher

1шт.

VT3182

BUSHING - valve stop (See VTA877)

1шт.

VT3238

X

SPACER

2шт.

VT4905

X

BALL - check valve, 5/16" diameter

2шт.

VT4912

SEAT - relief valve

1шт.

VT4913

X

BALL - 3/8" diameter

1шт.

VT4914

X

WASHER - relief valve

1шт.

VT4923

X

GASKET - control housing

1шт.

VT5127

VALVE - lift

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 9/16" pin - groove, type #5

2шт.

VT5128

COVER - top

1шт.

VT5129

X

SPRING

2шт.

VT5133

RETAINER - spring

2шт.

VT5135

GASKET - bottom cover

1шт.

VT5136

GASKET - inner

1шт.

VT5137

GASKET - outer

1шт.

VT5146

SNAP RING

2шт.

VT5320

SPACER - spring pressure

1шт.

VT5385

COVER - bottom

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hexagon head, U.N.C. with lockwasher

6шт.

VTA877

DOUBLE CONTROL LOCKOUT ATTACHMENT (Complete)

1шт.

VTA1151B

HYDRAULIC DOUBLE CONTROL VALVE (Complete)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hexagon head, U.N.C. with lockwasher

4шт.

Выбрано товаров: 40
