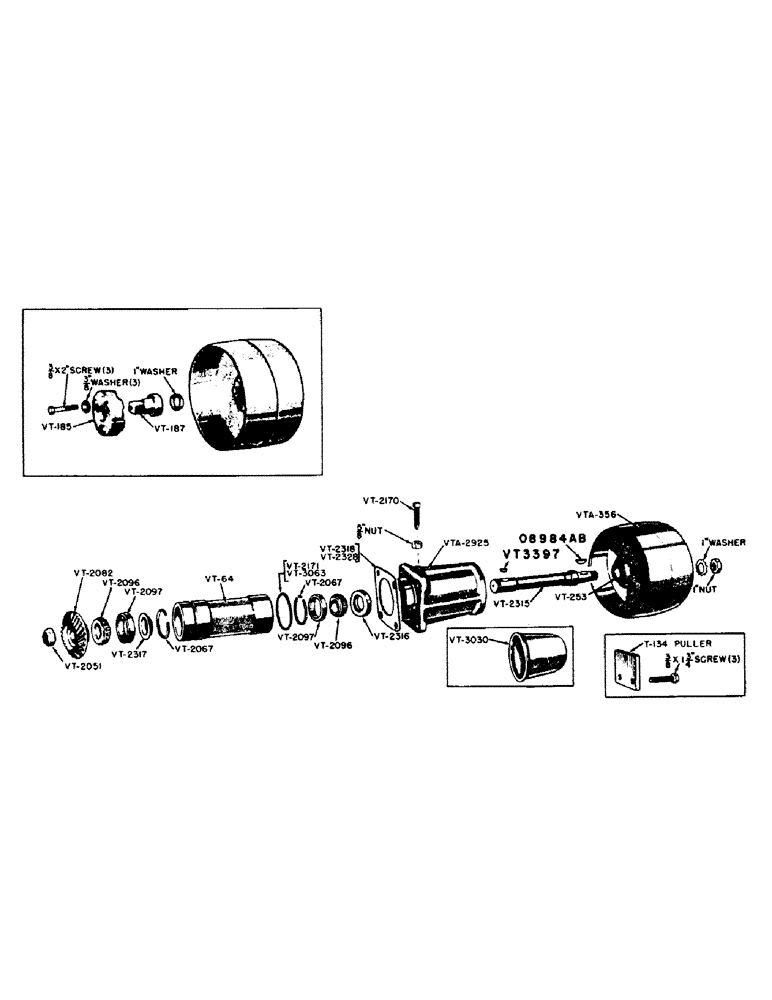

Запчасти Case IH VA-SERIES (152) - BELT PULLEY (06) - POWER TRAIN

O8984AB

X

KEY - Woodruff, Serial Range: pulley-shaft

1шт.

T134

PULLER - belt pulley

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" screw - cap, hex. head, U.N.C.

3шт.

VT63

HOUSING - belt pulley (Use VTA2925)

1шт.

VT64

SLEEVE - belt pulley shaft

1шт.

VT185

FLANGE - belt pulley, Serial Range: -4829894

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" screw - cap, hex. head, U.N.C. with lockwasher

3шт.

VT187

NUT - belt pulley, Serial Range: -4829894

1шт.

VT253

HUB - pulley (See VTA356)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" rivet - flat head

6шт.

VT2051

NUT - adjusting

1шт.

VT2067

X

SNAP RING

2шт.

VT2082

GEAR - belt pulley shaft

1шт.

VT2096

X

CONE - bearing (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing (Timken #14276)

2шт.

VT2170

SCREW - set, sleeve

1шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.C.

1шт.

VT2171

OIL SEAL - sleeve, felt, (See VT3063), Serial Range: -5370000

1шт.

VT2315

SHAFT - belt pulley

1шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon jam, U.N.F., S.F., Start Serial: 4829893

1шт.

NSS

NOT SOLD SEPARAT

1" washer - lock, Serial Range: -4829893

1шт.

NSS

NOT SOLD SEPARAT

1" washer - Shakeproof, E.T., Start Serial: 4829893

1шт.

VT2316

X

OIL SEAL - belt pulley shaft

1шт.

VT2317

SHIELD - oil, belt pulley

1шт.

VT2318

SHIM - (.005) housing to torque tube

1шт.

VT2328

SHIM - (.003) housing to torque tube

1шт.

VT3030

COVER - shaft, belt pulley

1шт.

VT3063

X

"O" RING - oil seal (See VT2171), Start Serial: 5369999

1шт.

VT3397

KEY - Woodruff, Serial Range: gear-shaft

1шт.

VTA356

PULLEY - belt

1шт.

VTA2925

BELT PULLEY HOUSING AND "O" RING

1шт.
