Запчасти Case IH VA-SERIES (074) - VAH DISC TYPE BRAKE ASSEMBLIES (06) - POWER TRAIN

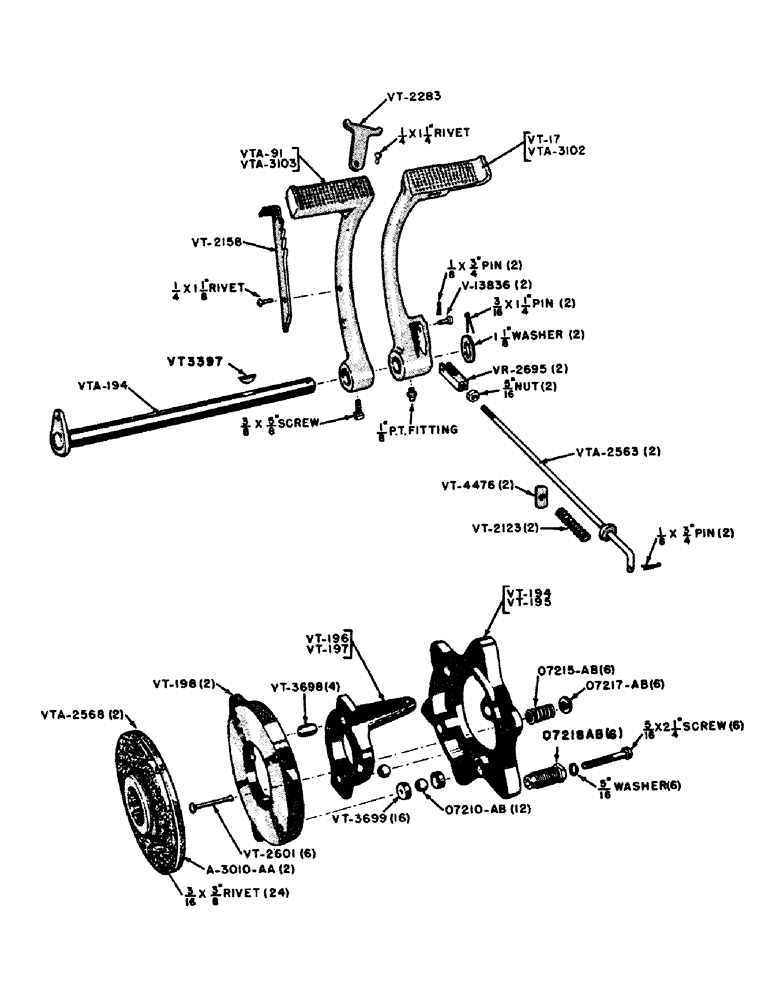

Схема запчастей Case IH VA-SERIES - (074) - VAH DISC TYPE BRAKE ASSEMBLIES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A3010AA

KIT

Set of two linings with rivets

2шт.

REF. A3010AA-DISC A30225 IS INCLUDED IN KIT.

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 3/8" rivet - tubular brass

24шт.

O7210AB

X

BALL - steel, 1/2" diameter

12шт.

O7215AB

SPRING

- separating

6шт.

O7217AB

WASHER

- seperating spring

6шт.

O7218AB

ADJUSTER,Hex, 9/16" - 11 x 2 3/4", Gr 5

SCREW - adjusting

6шт.

NSS

NOT SOLD SEPARAT

5/16" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher

6шт.

V13836

PIN - clevis, 5/16" diameter x 15/16" long

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

2шт.

VR2695

X

YOKE END - adjusting

2шт.

VT16

PEDAL - brake, left-hand (Use VTA91)

1шт.

VT17

PEDAL - brake, right-hand (See VTA3102), Serial Range: -5558747

1шт.

VT194

PLATE - power, right-hand

1шт.

VT195

PLATE - power, left-hand

1шт.

VT196

LEVER - actuating, right-hand

1шт.

VT197

LEVER - actuating, left-hand

1шт.

VT198

DISK - primary

2шт.

VT654

PEDAL - brake, right-hand (Use VTA3102)

1шт.

VT655

PEDAL - brake, left-hand (Use VTA3103)

1шт.

VT2123

X

SPRING - brake rod

2шт.

VT2158

CATCH - brake

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/8" rivet - round head

1шт.

VT2283

INTERLOCK - brake pedal

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" rivet - countersunk head

1шт.

VT2601

PIN

- spring

6шт.

VT3397

KEY - Woodruff, Serial Range: pedal-shaft

1шт.

VT3698

PLUNGER

4шт.

VT3699

INSERT - ball type, 3/4"

16шт.

VT4476

BASE - spring

2шт.

VTA91

PEDAL ASSEMBLY - brake, left-hand (See VTA3103), Serial Range: -5558747

1шт.

VTA194

SHAFT - clutch and brake

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" washer - plain, S.A.E. standard

2шт.

VTA2563

ROD ASSEMBLY - brake

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F., S.F. light series

2шт.

VTA2568

RING - middle, with brake linings

2шт.

VTA3102

PEDAL - brake, right-hand (See VT17), Start Serial: 5558746

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

VTA3103

PEDAL - brake, left-hand (See VTA91), Serial Range: -5558746

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 5/8" screw - set, square head, cup point, U.N.C.

1шт.

Выбрано товаров: 42
