Запчасти Case IH VA-SERIES (052) - TORQUE TUBE, VAC, VA, VAO, VAH (06) - POWER TRAIN

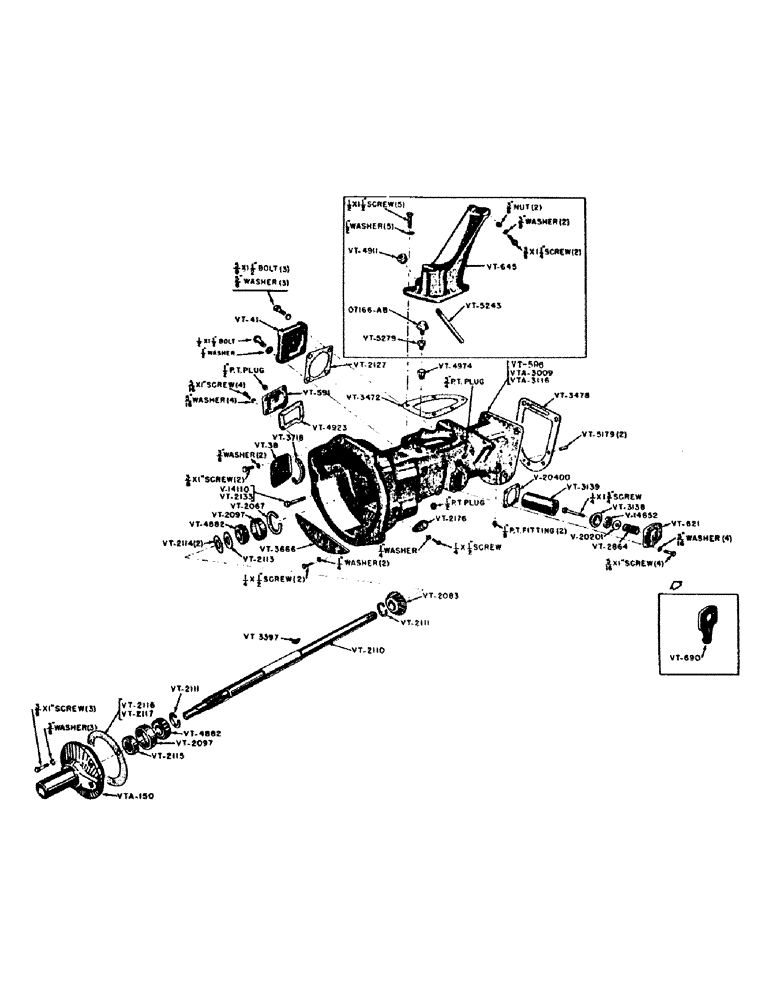

Схема запчастей Case IH VA-SERIES - (052) - TORQUE TUBE, VAC, VA, VAO, VAH (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

O7166AB

X

BREATHER (VAC, VAH), Start Serial: 5570001

1шт.

V14110

BOLT - engine to torque tube (VAC), Start Serial: 5570001

1шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher (VAC), Start Serial: 5458564

1шт.

V14652

WASHER - felt, filter cap, Start Serial: 5458564

1шт.

V20201

DECAL

WASHER - retaining, felt washer, Start Serial: 5958564

1шт.

V20400

X

GASKET - oil filter cap, Start Serial: 5958564

1шт.

VT7

QUILL (Use VTA150)

1шт.

VT38

TAPE

COVER - starting motor opening

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

VT41

COVER - belt pulley opening

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

2шт.

VT164A

TORQUE TUBE (Use VTA3116)

1шт.

VT591

COVER - control opening, hydraulic, Start Serial: 5370500

1шт.

NSS

NOT SOLD SEPARAT

1/2" ctsk. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

4шт.

VT596

TORQUE TUBE (VAC, VA, VAH), Serial Range: 5370499-5458563

1шт.

VT596

TORQUE TUBE (Use VTA3116)

1шт.

VT620

TORQUE TUBE (Use VTA3009)

1шт.

VT621

CAP - oil filter, See VT690, Start Serial: 5458564

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" N.C. hex. hd. bolt

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

4шт.

VT645

PEDESTAL - instrument panel (VAC), Start Serial: 5570001

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex hd. bolt w/hex and lockwasher (VAC)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex hd. bolt w/lockwasher (VAC)

5шт.

VT690

CAP - oil filter (VAC 14 only) (VAC)

1шт.

VT2067

X

SNAP RING - clutch shaft bearing

1шт.

VT2083

GEAR - drive, belt pulley (17T)

1шт.

VT2097

X

CUP - bearing, clutch shaft (Timken #14276)

2шт.

VT2110

SHAFT - clutch

1шт.

VT2111

X

SNAP RING - VT2083 gear

2шт.

VT2113

SHIM - drive gear (.005")

1шт.

VT2114

SHIM - drive gear (.010")

1шт.

VT2115

X

OIL SEAL - clutch shaft

1шт.

VT2116

SHIM - clutch quill

1шт.

VT2117

X

SHIM - clutch quill

1шт.

VT2127

X

GASKET - belt pulley opening

1шт.

VT2133

BOLT - engine to torque tube (5/8" x 3") (VAC), Start Serial: 5570000

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher

2шт.

VT2176

X

COVER - timing hole

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.C. hex. hd. bolt w/lockwasher

1шт.

VT2864

SPRING

- tension, oil filter, Start Serial: 5458564

1шт.

VT3138

X

CAP - oil filter, Start Serial: 5458564

1шт.

VT3139

X

ELEMENT - oil filter, Start Serial: 5458564

1шт.

VT3397

KEY - Woodruff, VT2083, Serial Range: gear-shaft

1шт.

VT3472

X

GASKET - pedestal

1шт.

VT3478

X

GASKET - torque tube to transmission case

1шт.

VT3666

COVER - flywheel

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

VT3718

SEAL - starting motor opening cover

1шт.

VT4306

PLUG - button (3/4" dia.) (Yoke mounting locations)

2шт.

VT4307

PLUG - button (1" dia.) (Ram mounting stud location)

1шт.

VT4882

X

CONE - bearing, clutch shaft (Timken #14116)

2шт.

VT4911

NUT - hydraulic tube (VAC), Start Serial: 5570001

1шт.

VT4923

X

GASKET - control cover opening, Start Serial: 5370499

1шт.

VT4974

PLUG - intake line (w/o E.H.), Start Serial: 537001

1шт.

VT5179

X

PIN - dowel, torque tube to transmission case, with band type brakes, Start Serial: 5455155

2шт.

VT5179

X

PIN - dowel, torque tube to transmission case, with with disk type brakes, Serial Range: -5458210

2шт.

VT5243

PIPE - intake (VAC), Start Serial: 5570001

1шт.

VT5279

ADAPTER - breather (VAC), Start Serial: 5570001

1шт.

VTA150

QUILL ASSEMBLY - clutch (Includes VT2097 brg. cup and VT2115 oil seal)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex hd. bolt w/lockwasher

3шт.

VTA3009

TORQUE TUBE ASSEMBLY, Start Serial: 5458563

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/2" std. sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

3/4" std. sq. hd. pipe plug

1шт.

VTA3116

TORQUE TUBE ASSEMBLY, Start Serial: 5458563

1шт.

Выбрано товаров: 66
