Запчасти Case IH VA-SERIES (088) - VAC PEDESTAL AND STEERING PARTS, VAC TRACTORS #5261528 TO #5570000 (05) - STEERING

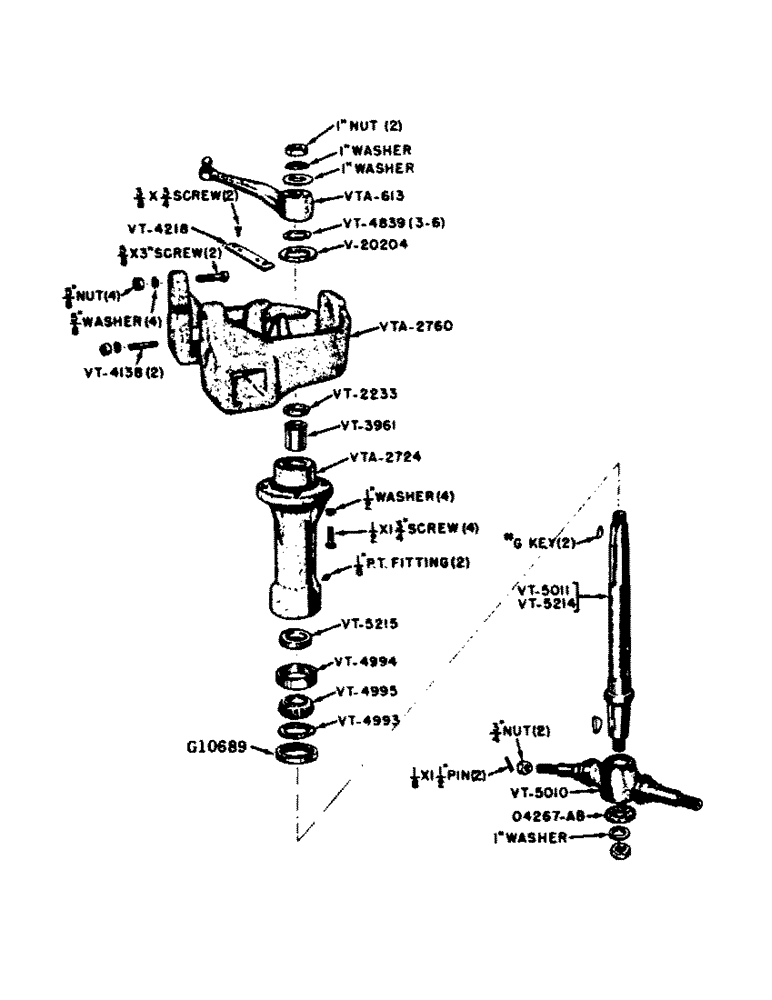

Схема запчастей Case IH VA-SERIES - (088) - VAC PEDESTAL AND STEERING PARTS, VAC TRACTORS #5261528 TO #5570000 (05) - STEERING

Артикул

Название

Примечание

Количество

G10689

SEAL

OIL SEAL - lower

1шт.

O4267AB

WASHER

1шт.

V20204

WASHER - steering spindle

1шт.

VT282

SUPPORT - front (Use VTA2760), Serial Range: -5353450

1шт.

VT539

PEDESTAL (Use VTA2724)

1шт.

VT548

SUPPORT - front (Use VTA2760), Start Serial: 5352449

1шт.

VT2233

X

OIL SEAL - upper

1шт.

VT3961

X

BUSHING - oilite, for pedestal

1шт.

VT4138

X

STUD - support to engine block, 5/8" x 2-7/8"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F. with lockwash

2шт.

VT4218

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - machine, countersunk head, U.N.C.

2шт.

VT4839

X

SHIM - adjusting, steering sprindle (.010)

3-6шт.

VT4993

X

WASHER

1шт.

VT4994

X

CUP - bearing (Timken #24722)

1шт.

VT4995

X

CONE - bearing (Timken #24780)

1шт.

VT5010

KNUCKLE - steering

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light thick slotted

2шт.

VT5011

SPINDLE - steering

1шт.

NSS

NOT SOLD SEPARAT

#G key - Woodruff

2шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon jam, U.N.F.

2шт.

NSS

NOT SOLD SEPARAT

1" washer - lock

1шт.

NSS

NOT SOLD SEPARAT

1" washer - Shakeproof, E.T.

1шт.

NSS

NOT SOLD SEPARAT

1" washer - plain, S.A.E. standard

1шт.

VT5214

SPINDLE - steering (See VTA1534, Fig. 50)

1шт.

VT5215

COLLAR - steering spindle (See VTA1534, Fig. 50)

1шт.

VTA613

ARM - steering, front

1шт.

VTA2724

PEDESTAL WITH BUSHINGS - fittings and bearing cups

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" screw - cap, hex. head, U.N.C., with lockwasher

4шт.

VTA2760

SUPPORT - front, with radiator bracket

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

Выбрано товаров: 33
