Запчасти Case IH VA-SERIES (086) - VAC PEDESTAL AND STEERING PARTS, VAC BEFORE TRACTOR 4829409 (05) - STEERING

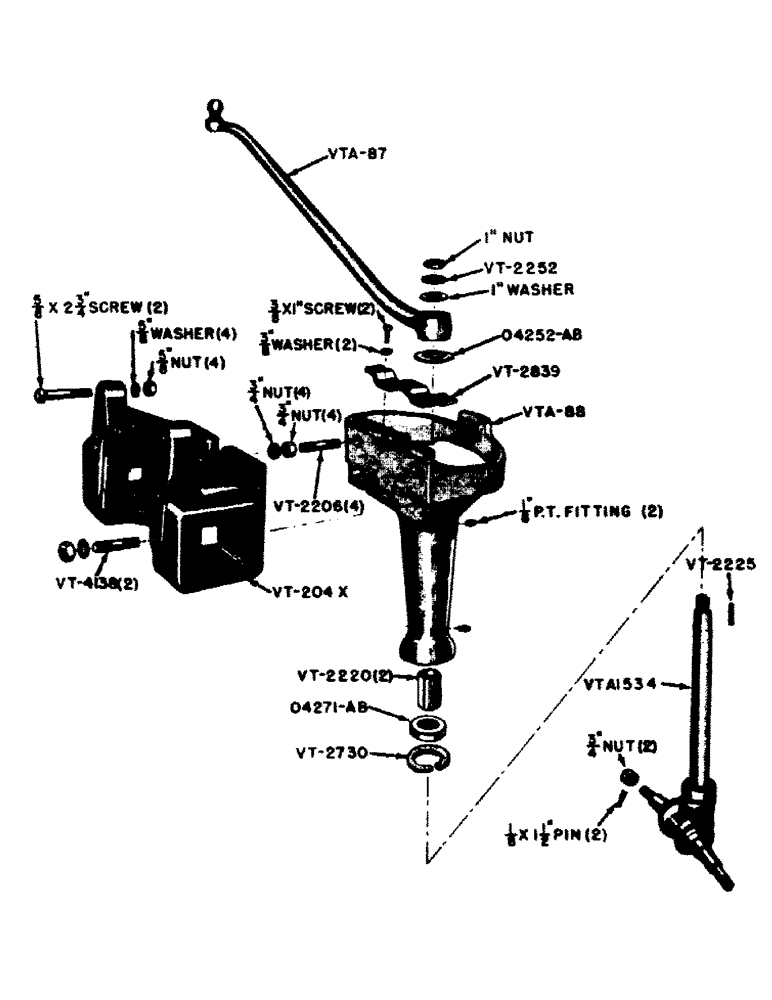

Схема запчастей Case IH VA-SERIES - (086) - VAC PEDESTAL AND STEERING PARTS, VAC BEFORE TRACTOR 4829409 (05) - STEERING

Артикул

Название

Примечание

Количество

O4252AB

SHIM - adjusting, steering spindle

1шт.

O4271AB

X

BEARING - thrust (Timken #T139)

1шт.

VT8

PEDESTAL (Use VTA88)

1шт.

VT204X

ADAPTER - pedestal

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-3/4" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

VT2206

STUD - 3/4" x 2-3/4"

4шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F.

4шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon pal, U.N.F.

4шт.

VT2220

X

BUSHING - bronze, for pedestal

2шт.

VT2225

KEY - steering arm

1шт.

VT2252

LOCKWASHER - steering arm

1шт.

VT2730

OIL SEAL - lower

1шт.

VT2839

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT4138

X

STUD - 5/8" x 2-1/2"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F. with lockwasher

2шт.

VTA87

ARM - steering, front

1шт.

VTA88

PEDESTAL WITH BRONZE BUSHINGS

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

VTA1534

STEERING SPINDLE AND KNUCKLE ASSEMBLY (Consists of: 1 - O4276AB, 1 - VT5010, 1 - VT5214, 1 - VT5215, and 2 - V13801)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light thick slotted

2шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon, jam, U.N.F.

1шт.

NSS

NOT SOLD SEPARAT

1" washer - plain

1шт.

Выбрано товаров: 24
