Запчасти Case IH VA-SERIES (082) - STEERING GEAR WORM AND SHAFT, VAC TRACTORS 5570000 TO 5654218,5656494,THRU 5655597&AFTER 5657999 (05) - STEERING

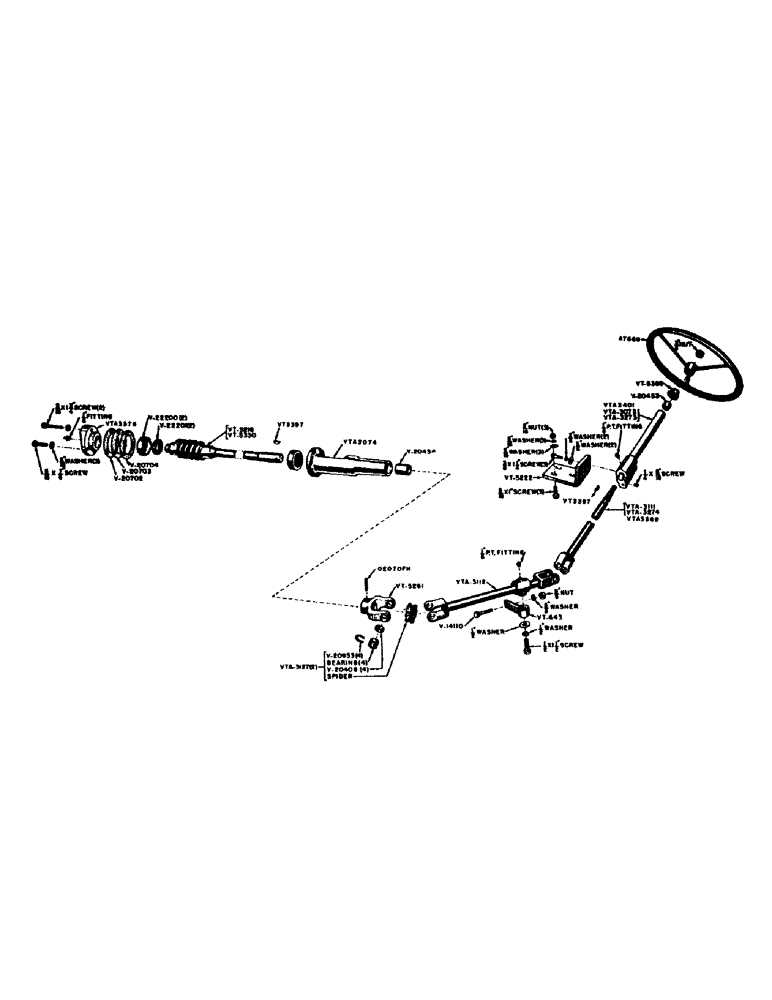

Схема запчастей Case IH VA-SERIES - (082) - STEERING GEAR WORM AND SHAFT, VAC TRACTORS 5570000 TO 5654218,5656494,THRU 5655597&AFTER 5657999 (05) - STEERING

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

(VAC tractors #5570000 to #5654218, #565649 thru #565597 and after #5679999)

1шт.

A7668

WHEEL

- steering (17-3/8" O.D.)

1шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. hex. nut

1шт.

O2070FH

X

ROLL PIN (1/4" x 1-1/2") VT5261 yoke to worm shaft

1шт.

V14110

BOLT - mounting bracket, lower bearing

1шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

1шт.

V20406

BUSHING

WASHER - cork (See VTA3127)

8шт.

V20453

TRACK ROD END ASSY

BUSHING - upper bearing and extension

1шт.

V20454

BUSHING - steering worm sleeve

1шт.

V20702

SHIM

- plastic (Green .003")

1-3шт.

V20703

SPARE PART

SHIM - plastic (Blue .005")

1-3шт.

V20704

SHIM - plastic (Brown .010")

4шт.

V20953

ROD

SNAP RING (See VTA3127)

8шт.

V22200

RACE - ball bearing (N.D. #909621)

2шт.

V22201

BALL BEARING ASSEMBLY (N.D. #909721)

2шт.

VT635

SLEEVE - steering worm (Use VTA3074)

1шт.

VT636

CAP - sleeve worm housing (Use VTA3376)

1шт.

VT642

BEARING - lower steering shaft (Use VTA3112)

1шт.

VT643

BRACKET - mounting, lower bearing

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex. hd. bolt w/lockwasher and plain washer

1шт.

VT644

BEARING - steering shaft (Use VTA3073, VTA3273 or VTA3401)

1шт.

VT700

CAP - sleeve, worm housing (Use VTA3376)

1шт.

VT715

BEARING - steering shaft (Use VTA3401)

1шт.

VT3397

KEY - Woodruff, steering wheel and connecting yoke

2шт.

VT5218

WORM - steering (Single and dual wheel) See VT5330

1шт.

VT5222

BRACKET - mounting upper bearing and extension

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex. hd. bolt w/hex. nut lockwasher and plain washer

3шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher and plain washer

2шт.

VT5261

YOKE - connecting, lower steering, Serial Range: shaft-worm

1шт.

VT5330

WORM - steering (See VT5218)

1шт.

VT5389

SEAL - dust, steering shaft

1шт.

VTA3073

UPPER BEARING AND EXTENSION (Includes V20453 bushing) VAC11, 12 and 13

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/16" N.C. slotted hd. cup pt. set screw

1шт.

VTA3074

SLEEVE - steering worm (Includes V20454 bushing)

1шт.

VTA3111

SHAFT - upper steering (Includes yokes) (VAC11, 12 and 13) See VTA3274 and VTA3369

1шт.

VTA3112

SHAFT - lower steering (Includes yokes and bearing)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

VTA3127

X

UNIVERSAL JOINT SPIDER AND BEARING KIT (Includes 1-spider, 4-bearings, 4-V20406 washers and 4-V20953 snap rings)

2шт.

VTA3273

UPPER BEARING AND EXTENSION (Includes V20453 bushing) VAC 14 and VAO 15 (When present stock is depleted order VTA3401)

1шт.

VTA3274

SHAFT - upper steering (Includes yoke) (VAC14) See VTA3111 and VTA3369

1шт.

VTA3369

SHAFT - upper steering (Includes yoke) (VAO15) See VTA3111 and VTA3274

1шт.

VT3376

WASHER

CAP - sleeve, worm housing (Includes 1/8" str. fitting, Lincoln #5000)

1шт.

VTA3401

UPPER BEARING AND EXTENSION (Includes V20453 bushing) VAC14 and VAO15

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/16" N.C. slotted hd., cup pt. set screw

1шт.

Выбрано товаров: 46
