Запчасти Case IH VA-SERIES (080) - STEERING COLUMN GEAR HOUSING AND DRAG LINKS, ALL TRACTORS EXCEPT VAC AFTER #5570000 (05) - STEERING

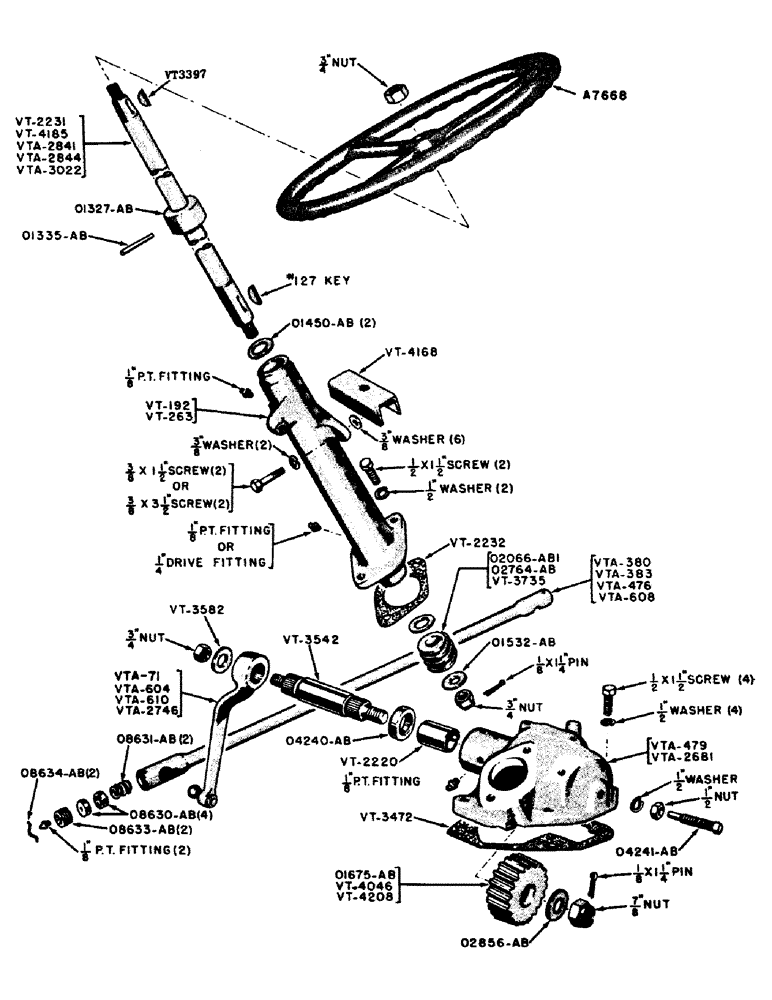

Схема запчастей Case IH VA-SERIES - (080) - STEERING COLUMN GEAR HOUSING AND DRAG LINKS, ALL TRACTORS EXCEPT VAC AFTER #5570000 (05) - STEERING

Артикул

Название

Примечание

Количество

A7668

WHEEL

- steering, 17-3/4" diameter

1шт.

O1327AB

COLLAR - steering shaft, Serial Range: -5359394

1шт.

O1335AB

PIN - steering shaft collar, Serial Range: -5359394

1шт.

O1450AB

WASHER - steering shaft

2шт.

O1532AB

WASHER - steering worm gear

1шт.

O1675AB1

WHEEL - worm (VAC), Serial Range: -4829409

1шт.

O2066AB1

GEAR - worm (See VT3735) (VAC), Serial Range: -4829409

1шт.

O2764AB

GEAR - worm (VA, VAO)

1шт.

O2856AB

WASHER - steering gear shaft (Gear end)

1шт.

O4240AB

X

OIL SEAL

1шт.

O4241AB

SCREW - adjusting

1шт.

NSS

NOT SOLD SEPARAT

1/2" nut - hexagon, U.N.C. with lockwasher

1шт.

O8630AB

X

BEARING (Thompson #16DB29)

4шт.

O8631AB

X

SPRING (Thompson #16DS1)

2шт.

O8633AB

X

SCREW - adjusting (Thompson #16DP23)

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

O8634AB

X

WIRE - lock (Thompson #16DM1)

2шт.

VT167

HOUSING - steering gear (Use VTA2681)

1шт.

VT179

HOUSING - steering gear (Use VTA2681)

1шт.

VT192

COLUMN - steering shaft (VAO) (See VT263), Start Serial: 5370499

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher (Column to panel) (VAC, VA, VAH)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher, Serial Range: (Column-housing)

2шт.

NSS

NOT SOLD SEPARAT

3/8" washer - plain, S.A.E. standard (Used as spacers) (VAC, VA, VAH)

6шт.

VT262

HOUSING - steering gear (Use VTA479)

1шт.

VT263

COLUMN - steering shaft (VAO), Serial Range: -5370500

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000) (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease, drive (Lincoln #5029) (VAO)

1шт.

NSS

NOT SOLD SEPARAT

3/8 x 3-1/2" screw - cap, hex. head, U.N.C. with lockwasher (Column to panel) (VAO)

2шт.

VT522

HOUSING - steering gear (Use VTA2681)

1шт.

VT2220

X

BUSHING - steering housing

1шт.

VT2231

SHAFT - steering (Without collar) (Use VTA2841)

1шт.

VT2232

X

GASKET -, Serial Range: column-housing

1шт.

VT3397

KEY - Woodruff, Serial Range: wheel-shaft

1шт.

VT3472

X

GASKET - steering housing

1шт.

VT3542

SHAFT - steering arm

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F.

1шт.

NSS

NOT SOLD SEPARAT

7/8" nut - hexagon, U.N.F. regular slotted

1шт.

VT3582

WASHER - steering arm shaft (Arm end)

1шт.

VT3735

GEAR - worm (See O2066AB1) (VAC, VAH), Start Serial: 4829408

1шт.

VT4046

WHEEL - worm (VA, VAO)

1шт.

VT4168

SPACER - column to instrument panel (VAO), Serial Range: -5370500

1шт.

VT4185

SHAFT - steering (Without collar) (Use VTA3022)

1шт.

VT4208

WHEEL - worm, (VAC, VAH), Start Serial: 4829408

1шт.

VTA71

ARM - steering ( VAO tractors) (See VTA2746) (VA, VAO), Serial Range: -5656108

1шт.

VTA71

ARM - steering (VA tractors) (See VTA2746) (VA, VAO), Serial Range: -5656108

1шт.

VTA380

DRAG LINK ASSEMBLY (43-1/2" length between sockets) (VAC dual and single front wheels) (Use VTA608) (See VTA476), Serial Range: -4829409

1шт.

VTA383

DRAG LINK ASSEMBLY (36-1/2" length between sockets) (VA, VAO)

1шт.

VTA476

DRAG LINK ASSEMBLY (45-1/2" length between sockets) (VAC w/single and adjustable axle) (VAC, VAH), Start Serial: 4829408

1шт.

VTA479

HOUSING - with bushing (See VTA2681) (VAO), Serial Range: -5370500

1шт.

VTA604

ARM - steering (See VTA610) (VAC), Serial Range: -4829409

1шт.

VTA608

DRAG LINK ASSEMBLY (44-1/8" length between sockets) (VAC dual front wheel), Start Serial: 4829408

1шт.

VTA610

ARM - steering (See VTA604) (VAC, VAH), Start Serial: 48294408

1шт.

VTA2681

HOUSING - with bushing (VAO) (See VTA479), Start Serial: 5370499

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VTA2746

ARM - steering (VA tractors) (See VTA71) (VA, VAO), Start Serial: 5657999

1шт.

VTA2746

ARM - steering (VAO tractors) (See VTA71) (VA, VAO), Start Serial: 5656107

1шт.

VTA2841

SHAFT - assembly, steering (39-5/16" long) (VAC, VA, VAH)

1шт.

VTA2844

SHAFT - assembly, steering (26-3/4" long) (VAO), Serial Range: -5370500

1шт.

VTA3022

SHAFT - assembly, steering (28-3/4" long) (VAO), Start Serial: 5370499

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

#127 key - Woodruff (Worm, Serial Range: gear-shaft)

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F.

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, castellated, U.N.F.

1шт.

Выбрано товаров: 66
