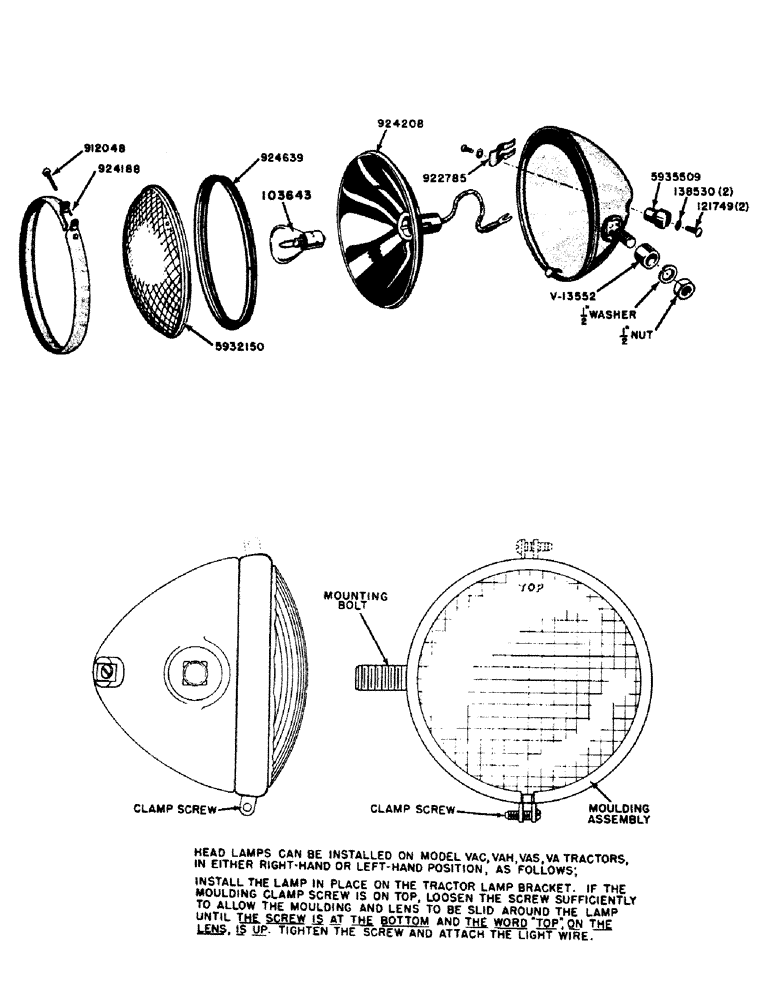

Запчасти Case IH VA-SERIES (045) - VTA3026 HEAD LAMP PARTS, INSTRUCTIONS FOR HEAD LAMP INSTALLATION (04) - ELECTRICAL SYSTEMS

103643

SHIELD

BULB - light, large #1133L, 32 C.P. single contact, 6-8 volt

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal Int Tooth, #8

2шт.

912048

SCREW - door

1шт.

922785

SUPPORT

SPRING - terminal

1шт.

924188

MOLDING ASSEMBLY

1шт.

924208

REFLECTOR AND WIRE ASSEMBLY

1шт.

924639

GASKET ASSEMBLY

1шт.

5932150

LENS - head lamp

1шт.

5935509

PLATE - terminal

1шт.
