Запчасти Case IH VA-SERIES (044) - VT3660 HEAD LAMP PARTS (04) - ELECTRICAL SYSTEMS

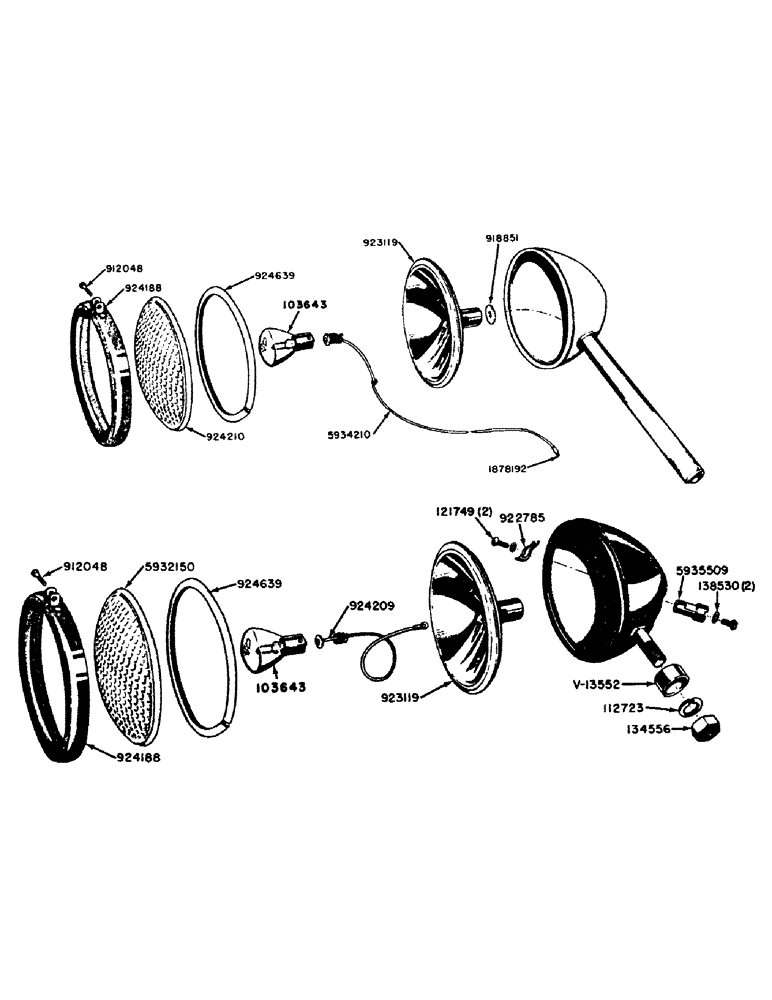

Схема запчастей Case IH VA-SERIES - (044) - VT3660 HEAD LAMP PARTS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

103643

SHIELD

BULB - light, large #1133L, 32 C.P. single contact, 6-8 volt

1шт.

912048

SCREW - door

1шт.

918851

WASHER - wire

1шт.

923119

REFLECTOR ASSEMBLY

1шт.

924188

MOLDING ASSEMBLY

1шт.

924210

LENS - lamp

1шт.

924639

GASKET ASSEMBLY

1шт.

1878192

TERMINAL - wire

1шт.

5930006

SCREW - ground (Early lamps)

1шт.

5934210

WIRING ASSEMBLY

1шт.

103643

SHIELD

BULB - light, large #1133L, 32 C.P. single contact, 6-8 volt, VT3665 head and tail lamp parts

1шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, , Nut, VT3665 head and tail lamp parts 5/16"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal nut, VT3665 head and tail lamp parts

2шт.

134556

NUT - retaining, VT3665 head and tail lamp parts

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal screw, VT3665 head and tail lamp parts Int Tooth, #8

2шт.

912048

SCREW - door, VT3665 head and tail lamp parts

1шт.

922785

SUPPORT

SPRING - terminal, VT3665 head and tail lamp parts

1шт.

923119

REFLECTOR ASSEMBLY, VT3665 head and tail lamp parts

1шт.

924188

MOLDING ASSEMBLY, VT3665 head and tail lamp parts

1шт.

924209

WIRING ASSEMBLY, VT3665 head and tail lamp parts

1шт.

924639

GASKET - lens, VT3665 head and tail lamp parts

1шт.

5930006

SCREW - ground (Early lamps), VT3665 head and tail lamp parts

1шт.

5932150

LENS - clear, spot, VT3665 head and tail lamp parts

1шт.

5935509

PLATE - terminal, VT3665 head and tail lamp parts

1шт.

Выбрано товаров: 24
