Запчасти Case IH VA-SERIES (038) - ELECTRICAL SYSTEM, BATTERY (04) - ELECTRICAL SYSTEMS

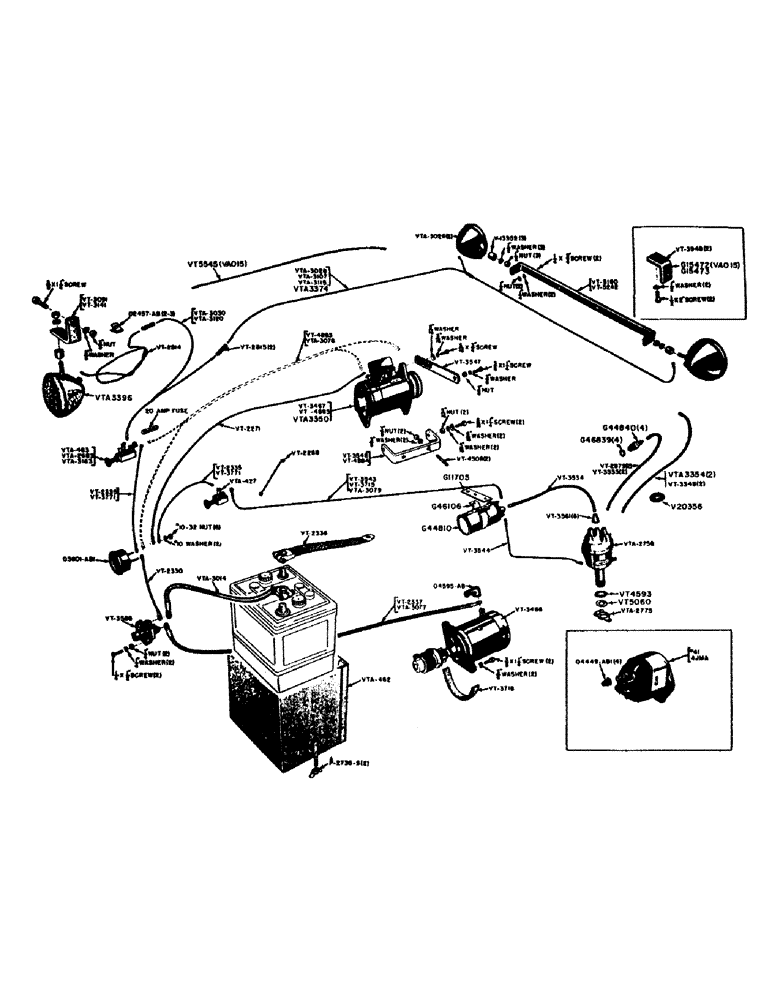

Схема запчастей Case IH VA-SERIES - (038) - ELECTRICAL SYSTEM, BATTERY (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

P2735S

X

NUT - wing, battery box (1/4" N.C.)

2шт.

VT2336

X

STRAP -, Serial Range: battery-ground

1шт.

VTA55

RING - clamp, battery, Serial Range: -4925001

1шт.

VTA462

BOX - battery, Start Serial: 49250000

1шт.

O3601AB1

X

AMMETER (Includes clamp), generator

1шт.

NSS

NOT SOLD SEPARAT

#10-32 hex. jam nut and lockwasher, generator

2шт.

VT2271

WIRE - generator to ammeter (54" long) (See VT4883 and VTA3078), Start Serial: 5654122

1шт.

VT2330

WIRE - ammeter to starter switch (3-1/2" long), generator

1шт.

VT2335

WIRE - ammeter to ignition switch (VAC) See VT3771, generator, Serial Range: -5570000

1шт.

VT2335

WIRE - ammeter to light switch (5-13/16" long) VAC (See VT3771), generator, Serial Range: -5654123

1шт.

A30289

X

GENERATOR (Auto-Lite #GAS-4169A) Use VTA1637 (replaced VT3467), generator

1шт.

VT3547

STRAP - adjusting, generator

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex. hd. bolt w/lockwasher and plain washer, generator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, generator

1шт.

VT3548

BRACKET - mounting, generator (See VT4884), Serial Range: -5060679

1шт.

VT4508

STUD - generator bracket (3/8" x 1-1/4")

2шт.

NSS

NOT SOLD SEPARAT

3/8" N.C. hex. nut and lockwasher, generator

2шт.

VT4883

CABLE - generator to ammeter and light switch (VAC, others before #5654123) See VT2271 and VTA3078, Serial Range: -5570000

1шт.

VT4884

BRACKET - generator mounting, See VT3548, Start Serial: 5060678

1шт.

A30466

X

GENERATOR (Auto-Lite #GBM-4823A-5) (Use VTA3350) (replacedVT4885)

1шт.

VTA1637

GENERATOR replacement kit (Includes VTA3350 generator, VTA3163 light switch, VT2271 wire, VT4884 bracket and VT4886 belt), Serial Range: -5060679

1шт.

VTA3078

CABLE - generator to ammeter and light switch (VAC tractors after #5570000, others after #5654123) See VT2271 and VT4883

1шт.

VTA3350

X

GENERATOR (Auto-Lite #GHD6001-SS, includes voltage regulator), Start Serial: 5654122

1шт.

Subs to A40577, which contains A40481 regulator, which subs to A40607, which is part type 6

1шт.

G11705

BRACKET

- mounting, G44810 coil, starting motor and ignition

1шт.

G44810

X

COIL - ignition (Auto-Lite #CAL-4001A) includes G46106 clamp and screw, starting motor

1шт.

G44840

SPARK PLUG

(Champion D16-8MM), starting motor and ignition

4шт.

G46106

BRACKET

CLAMP - coil, starting motor and ignition

1шт.

NSS

NOT SOLD SEPARAT

#10-32 x 1-1/2" rd. hd. mach. screw (Cadmium plated), starting motor and ignition

1шт.

G46839

GASKET

- spark plug, starting motor and ignition

4шт.

A21753

CAP

NIPPLE - terminal, starting motor, and ignition

1шт.

V20356

NUT

WASHER - rubber harness, spark plug cable, starting motor and ignition

1шт.

VT2335

WIRE - ammeter to ignition switch (5-13/16" long) VAC, See VT3771, starting motor, Serial Range: -5654123

1шт.

VT2337

CABLE - starter switch to starting motor (VAC, See VTA3077, ignition, Serial Range: -5570000

1шт.

VT2879

X

WIRE - #1 and #4 spark plugs (10-1/2" long), starting motor and ignition

2шт.

VT3466

STARTING MOTOR (Auto-Lite #MZ-4114), and ignition

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher, starting motor and ignition

2шт.

VT3534

X

WIRE - coil to distributor (11" long), starting motor and ignition

1шт.

VT3543

WIRE - coil to ignition switch (36" long) VAC, starting motor and ignition, Serial Range: -5570000

1шт.

VT3544

WIRE - distributor to coil (11-1/2" long), starting motor and ignition

1шт.

VT3561

X

NIPPLE - spark plug and distributor wires, starting motor and ignition

6шт.

VT3588

X

SWITCH - starting, motor and ignition

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" rd. hd. mach. screw w/hex, nut and lockwasher, starting motor and ignition

2шт.

VT3715

WIRE - coil to ignition switch (40" long) VAC, starting motor, Start Serial: 5570000

1шт.

VT3718

SEAL - felt, starting motor, and ignition

1шт.

VT3771

WIRE - ammeter to ignition switch and light switch (VAC) starting motor, Start Serial: 5654123

2шт.

VT3771

WIRE - ammeter to ignition switch (4-13/16" long) VAC, starting motor, Serial Range: -5654123

1шт.

VT4593

X

"O" RING - distributor to block, starting motor and ignition

1шт.

VT5060

X

WASHER - thrust, distributor advance arm, starting motor and ignition

1шт.

VTA427

X

SWITCH - ignition, starting motor

1шт.

A40929

KIT

DISTRIBUTOR (Auto-Lite #IAD6003-2F) ( replaced VTA2758 ), starting motor and ignition

1шт.

VTA2775

X

ADVANCE ARM ASSEMBLY - distributor (Auto-Lite #IG1860-A1), starting motor and ignition

1шт.

VTA3014

X

CABLE - starter switch to battery, motor and ignition

1шт.

VTA3077

CABLE - starting switch to starting motor (VAC) See VT2337, and ignition, Start Serial: 5570000

1шт.

VTA3354

X

WIRE - #2 and #3 spark plugs (8-1/2" long), starting motor and ignition

2шт.

41

SCREW

MAGNETO - "CASE", flange mounted (See Magnetos parts catalog), ignition

1шт.

O4449AB1

X

NIPPLE - spark plug wire, magneto ignition

4шт.

VT2268

WIRE - ground, ignition switch, magneto

1шт.

VT3348

WIRE - #1 and #4 spark plugs (16" long), magneto ignition

2шт.

VT3535

X

WIRE - #2 and #3 spark plugs (14" long), magneto ignition

2шт.

VTA3079

CABLE - ignition switch to magneto (44" long)

1шт.

Выбрано товаров: 61
