Запчасти Case IH VA-SERIES (018) - WATER PUMP AND FAN, ENGINES AFTER #72E07778 (02) - ENGINE

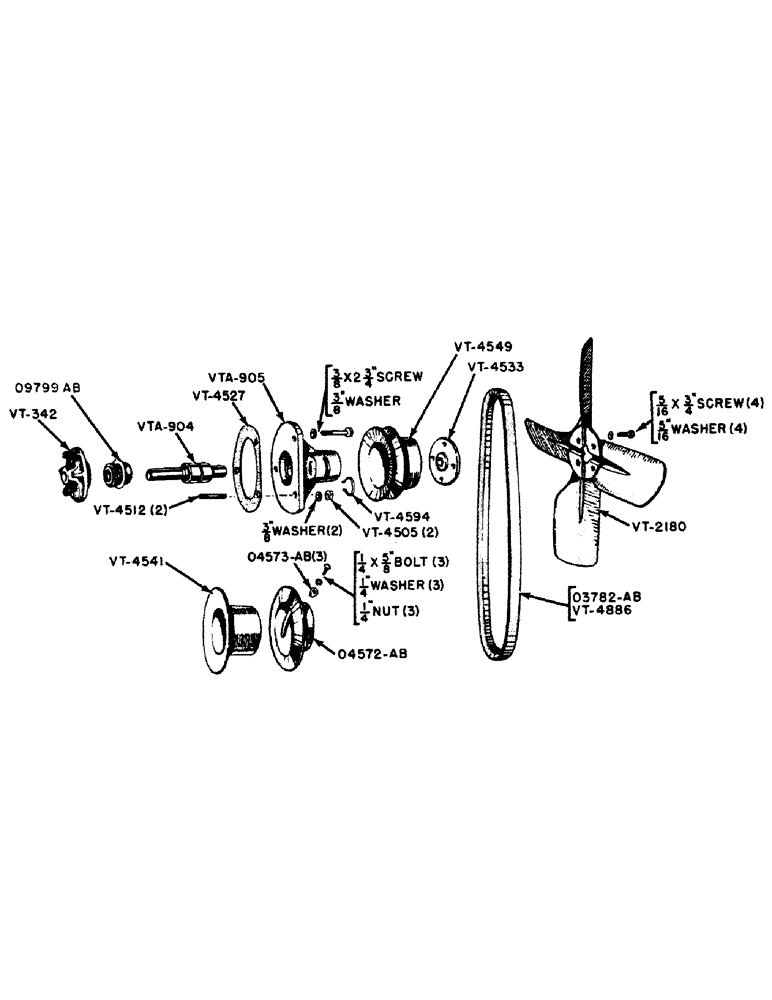

Схема запчастей Case IH VA-SERIES - (018) - WATER PUMP AND FAN, ENGINES AFTER #72E07778 (02) - ENGINE

Артикул

Название

Примечание

Количество

O3782AB

SPARE PART BELT - fan (Engines not equipped with generator)

1шт.

O4572AB

SPARE PART FLANGE - fan adjusting, adjusting half (Engines without generator)

1шт.

4573AB

WASHER - lipped (Engines without generator)

3шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" bolt - carriage, U.N.C. with hex. nut and lockwasher

3шт.

9799AB

SEAL ASSEMBLY

1шт.

VT341

SPARE PART BODY (Use VTA905)

1шт.

VT342

SPARE PART IMPELLER - water pump

1шт.

VT2180

X

FAN

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT4505

SPARE PART NUT - hexagon 3/8" U.N.C.

2шт.

VT4512

X

STUD - water pump 3/8" x 1"

2шт.

NSS

NOT SOLD SEPARAT

3/8" washer - Shakeproof, I.T.

2шт.

VT4527

X

GASKET - pump body

1шт.

VT4533

SPARE PART HUB - fan

1шт.

VT4541

SPARE PART FLANGE - fan hub, stationary half (Engines without generator)

1шт.

VT4549

X

PULLEY - water pump (Engines equipped with generator)

1шт.

VT4594

X

RING - retainer

1шт.

VT4886

X

"V" BELT - fan and generator

1шт.

VTA896

SPARE PART PULLEY ASSEMBLY - fan drive (Engines without generator) (Includes O4572AB, O4573AB, VT4541 and 3 - 1/4" x 5/8" carriage bolts w/nut and lockwasher)

1шт.

VTA904

X

SHAFT WITH BEARING AND SLINGER

1шт.

VTA905

X

BODY AND SEAL ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-3/4" screw - cap, hex. head, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - Shakeproof, I.T.

1шт.

G11956

WATER PUMP

WATER PUMP ASSEMBLY (Complete) with gasket (replaced VTA908 )

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

Выбрано товаров: 26
