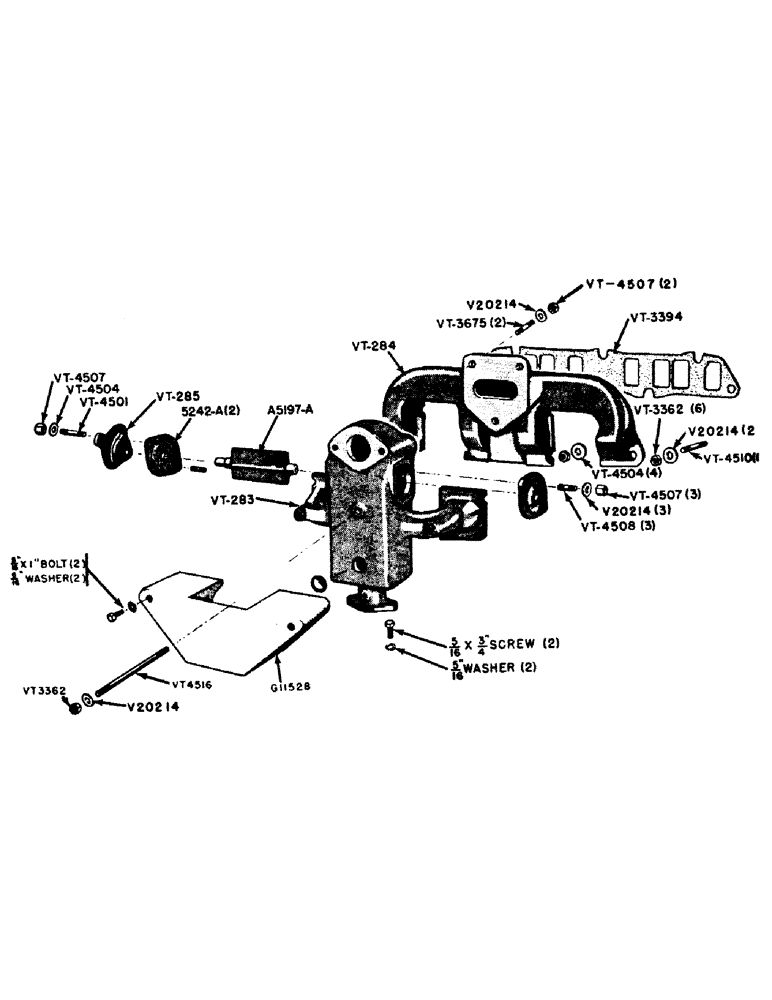

Запчасти Case IH VA-SERIES (014) - LOW COST FUEL MANIFOLD, VAC, VA, VAO, VAH (02) - ENGINE

G11528

HEAT BOX ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

A5197A

VALVE - heat control

2шт.

V20214

WASHER

- 3/4" O.D. x 13/32" I.D. x 1/16"

8шт.

VT220

ELBOW - exhaust (See Fig. 13) (VAO)

1шт.

VT283

MANIFOLD - intake

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT284

MANIFOLD - exhaust

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT285

LEVER - heat control valve

1шт.

VT286

ELBOW - exhaust (See Fig. 13) (VAC, VA & VAH)

1шт.

VT3362

X

NUT - hexagon (Brass) 3/8" - 16

7шт.

VT3394

X

GASKET - manifold

1шт.

VT3399

PLUG - Hubbard (1" diameter)

2шт.

VT3591

PIPE - exhaust (See Fig. 13) (VAC, VA & VAH)

1шт.

VT3675

X

STUD - 3/8" x 1-1/2"

2шт.

VT3864

X

CLAMP - muffler (See Fig. 13) (VAC, VA & VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" screw - machine, with square nut and lockwasher (VAC, VA & VAH)

1шт.

VT4501

STUD - 3/8" x 1-11/16"

1шт.

VT4504

WASHER

- 7/8" O.D. x 13/32" I.D. x 1/8"

5шт.

VT4507

NUT - hexagon (Brass) 3/8" - 16 x 21/64" high

6шт.

VT4508

STUD - 3/8" - 16 x 1-1/4"

3шт.

VT4510

X

STUD - manifold 3/8" x 1-1/4"

6шт.

VT4516

X

STUD - 3/8" - 16 x 6-3/8"

1шт.

VTA2811

X

MUFFLER - exhaust (See Fig. 13) (VAC, VA & VAH)

1шт.
