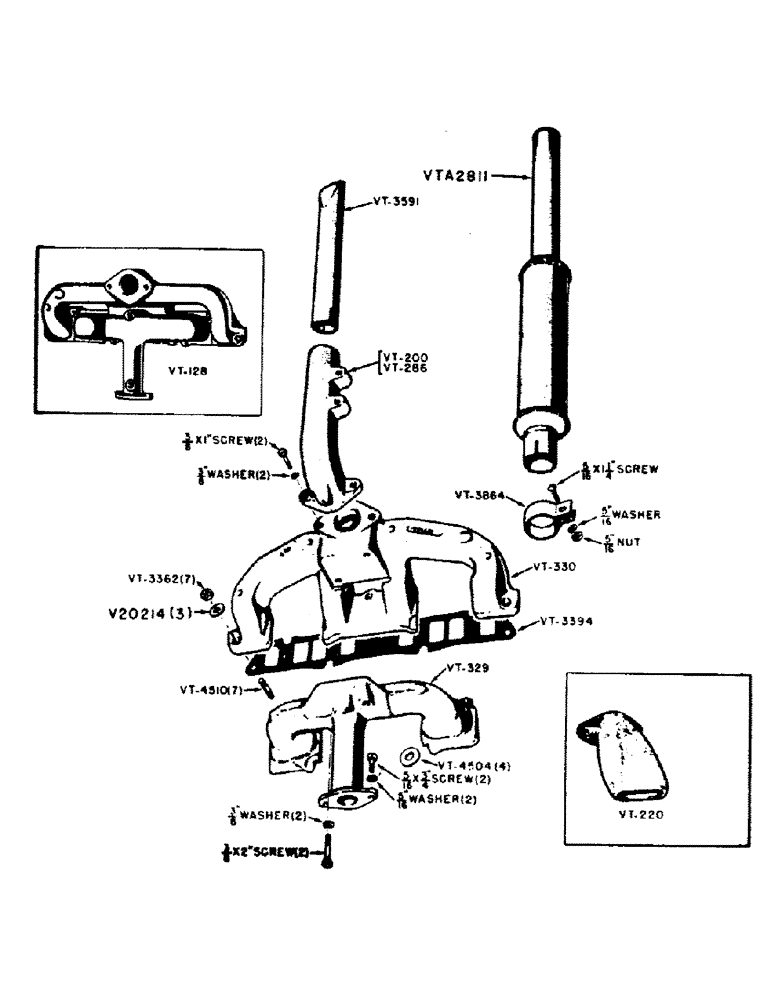

Запчасти Case IH VA-SERIES (013) - GASOLINE MANIFOLD, EXHAUST PIPE AND MUFFLER, VAC, VA, VAO,VAH (02) - ENGINE

O1581AB

STUD - (3/8" x 2-1/4") used with VTA924 manifold unit

2шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.F.

2шт.

V20214

WASHER

- plain (3/4" O.D. x 13/32" I.D. x 1/16")

3шт.

V21206

SPARE PART

SPACER - used with VTA924 manifold unit

2шт.

VT128

MANIFOLD - intake and exhaust (Engines before #A4700000) (Use VTA924)

1шт.

VT200

ELBOW - exhaust (Engines before #A4700000) (VAC, VA & VAH)

1шт.

VT220

ELBOW - exhaust (VAO)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAO)

2шт.

VT286

ELBOW - exhaust (Engines after #A4700000) (VAC, VA & VAH)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAC, VA & VAH)

2шт.

VT329

X

MANIFOLD - intake (Engines after #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT330

MANIFOLD - exhaust (Engines after #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT3362

X

NUT - hexagon (Brass) 3/8" - 16

7шт.

A30030

GASKET

- manifold ( replaced VT3394)

1шт.

VT3591

PIPE - exhaust (VAC, VA & VAH)

1шт.

VT3864

X

CLAMP - muffler (VAC, VA & VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" screw - machine, with square nut and lockwasher (VAC, VA & VAH)

1шт.

VT4504

WASHER

- plain (7/8" O.D. x 13/32" I.D. x 1/8")

4шт.

VT4510

X

STUD - manifold (3/8" x 1-3/4")

7шт.

VTA924

INTAKE AND EXHAUST MANIFOLD UNIT (Consists of: 1 - VT329, 1 - VT330, 1 - VT4510, 2 - V21206, 2 - O1581AB, and commodities)

1шт.

VTA2811

X

MUFFLER - exhaust (VAC, VA & VAH)

1шт.
