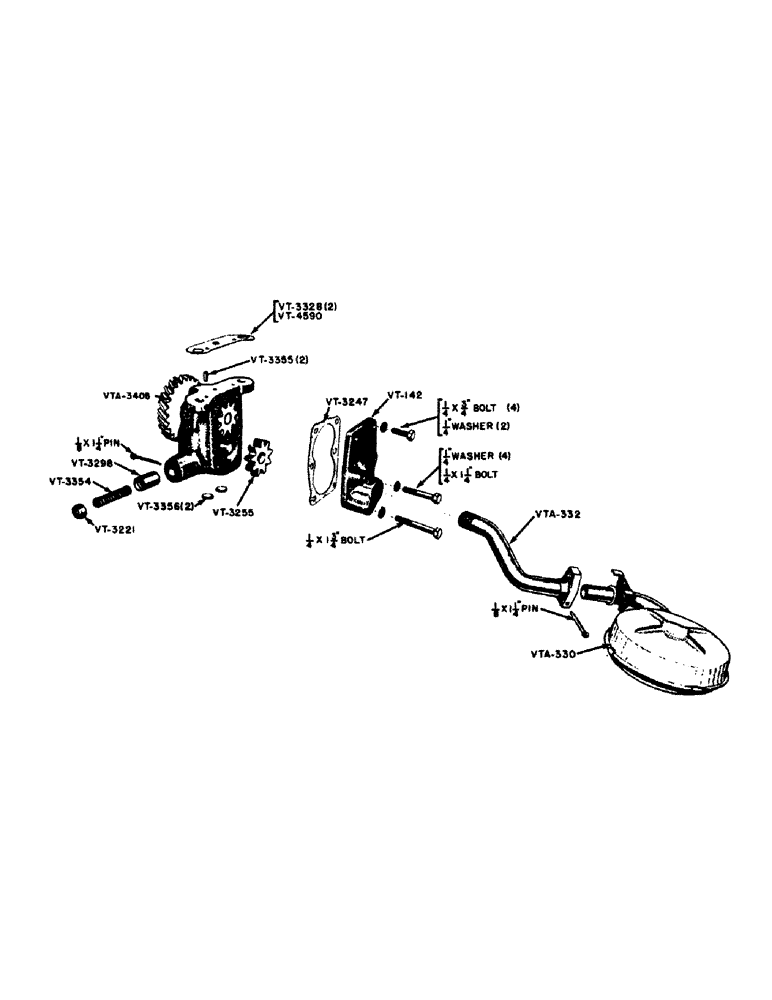

Запчасти Case IH VA-SERIES (012) - ENGINE OIL PUMP (02) - ENGINE

VT125

X

PUMP BODY AND BEARING CAP (Use VTA2506)

1шт.

VT142

X

COVER - oil pump

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hex. head, U.N.C.

4шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/4" washer - lock

2шт.

NSS

NOT SOLD SEPARAT

1/4" washer - Shakeproof, I.T.

2шт.

VT158

X

BODY - oil pump (Use VTA3408)

1шт.

VT3221

X

RETAINER - relief spring

1шт.

VT3223

BUSHING - oil pump body

2шт.

VT3226

X

GEAR - drive, oil pump (Use VTA3408)

1шт.

VT3247

X

GASKET - oil pump body cover

1шт.

VT3252

X

SHAFT - drive, oil pump (Use VTA3408)

1шт.

VT3254

X

GEAR - driver, oil pump, 9 tooth (Use VTA3408)

1шт.

NSS

NOT SOLD SEPARAT

No. 207 key, Woodruff

1шт.

A30443

GEAR

- driven, oil pump (9 tooth) (replaced VT3255)

1шт.

VT3298

X

VALVE - relief, oil pressure

1шт.

VT3328

X

SHIM - (.002") (Pump body to main bearing cap)

2шт.

VT3354

X

SPRING - oil pressure relief

1шт.

VT3355

PIN - dowel (Front main bearing cap)

2шт.

41-8

PLUG

- Hubbard, 1/2" diameter (replaced VT3356)

2шт.

VT4528

PIN - 1/4 x 1/4" (Used in VT3254, Serial Range: prior-key)

1шт.

VT4590

X

SHIM - (.005") (Pump body to main bearing cap)

1шт.

VTA330

FLOAT ASSEMBLY

1шт.

VTA332

PIPE - suction, assembly

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin, cotter

1шт.

VTA2506

X

COMPLETE PUMP ASSEMBLY AND BEARING CAP - less float and suction pipe (Use VTA3408)

1шт.

VTA2507

X

COMPLETE PUMP ASSEMBLY - less bearing cap, float and suction pipe (Use VTA3408)

1шт.

VTA3408

X

OIL PUMP BODY, drive shaft assembly and shims (Engines after VAB18535)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin, cotter

1шт.
