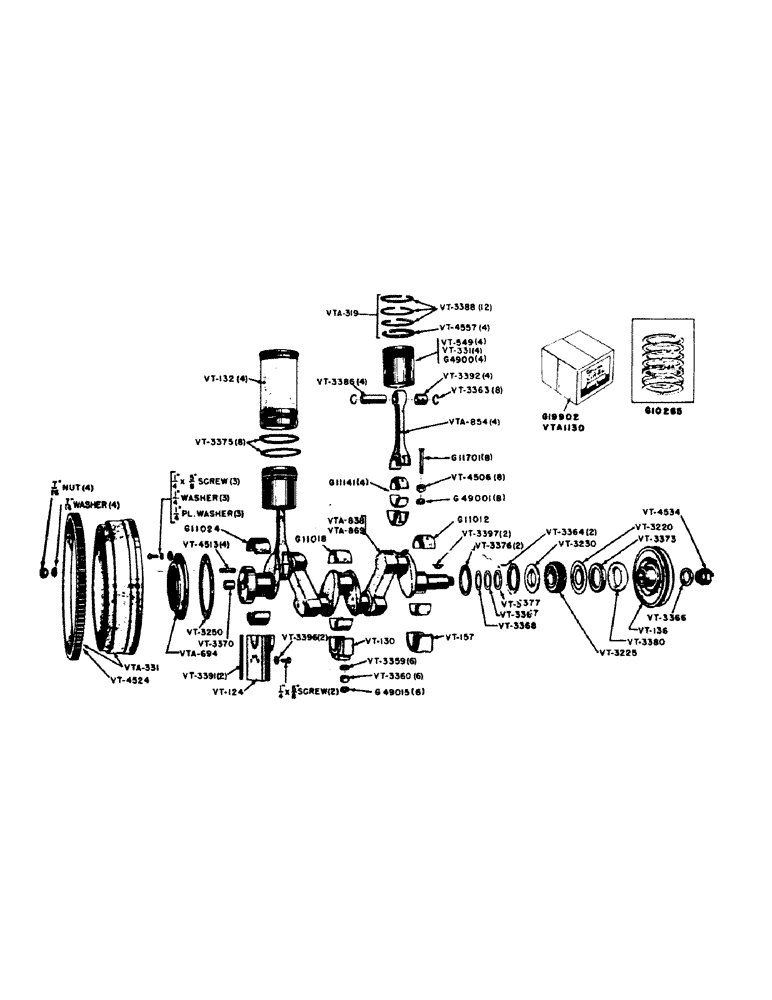

Запчасти Case IH VA-SERIES (008) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

G11012

KIT

LINERS - crankshaft front bearing, top and bottom half (Standard)

1шт.

G11013

SLEEVE CYLINDER

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G11014

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G11016

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

G11018

KIT

LINERS - crankshaft center bearing, top and bottom half (Standard)

1шт.

G11019

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G11020

BEARING LINER

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G11022

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

G11024

SLEEVE CYLINDER

LINERS - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G11025

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G11026

LINERS - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

G11028

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

G49015

X

NUT-bearing cap stud (1/2" pal nut)

6шт.

VT124

BLOCK - rear bearing cap and filler

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. hex hd. bolt

2шт.

VT130

CAP - center bearing, crankshaft

1шт.

VT136

X

PULLEY - fan drive

1шт.

VT141

FLYWHEEL (Use VTA331)

1шт.

VT157

CAP - front bearing, crankshaft

1шт.

VT3201

X

CRANKSHAFT (Use VTA838)

1шт.

VT3220

X

THROWER - crankshaft oil

1шт.

VT3225

X

GEAR - crankshaft (24T)

1шт.

VT3230

X

PLATE - thrust, crankshaft

1шт.

A30442

GASKET

- rear oil seal retainer

1шт.

VT3359

WASHER - main bearing stud (1/2" plain)

6шт.

VT3360

NUT - bearing cap stud (1/2")

6шт.

VT3364

X

PIN - thrust washer

2шт.

VT3366

X

COLLAR - starting jaw

1шт.

VT3367

X

SHIM - crankshaft thrust (.002")

1шт.

VT3368

X

SHIM - crankshaft thrust (.008")

1шт.

VT3370

X

BUSHING - pilot, crankshaft

1шт.

A36609

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

VT3376

WASHER

- thrust, crankshaft

2шт.

VT3377

X

SPACER - thrust, crankshaft

1шт.

VT3380

DUST SEAL - fan belt pulley

1шт.

VT3391

PACKING

- filler block, rear bearing

2шт.

VT3396

X

GASKET - filler block, rear bearing

2шт.

VT3397

KEY - pulley and, Serial Range: gear-crankshaft

2шт.

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

NSS

NOT SOLD SEPARAT

7/16" N.F. hex nut and lockwasher

4шт.

VT4524

X

RING GEAR - flywheel (96T)

1шт.

VT4534

JAW - starting, crankshaft

1шт.

VT5200

CRANKSHAFT (Use VTA869)

1шт.

VT5200A

CRANKSHAFT (Use VTA838)

1шт.

VTA331

FLYWHEEL W/RING GEAR

1шт.

VTA694

X

OIL SEAL AND RETAINER ASSEMBLY - crankshaft rear

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. hex hd. bolt w/lockwasher and plain washer

3шт.

VTA838

X

CRANKSHAFT (Includes VT3370 bushing) Before engine #VAC-124-22884

1шт.

A30261

CRANKSHAFT

(Includes VT3370 bushing) Engine #VAC-124-22884 and after

1шт.

G4900

PISTON

- aluminum, 4 ring (See G19902), connecting rods

4шт.

G10265

RING, SET

Set of 2 in 1 chrome piston rings, connecting rods

1шт.

G11141

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (Standard), pistons

4шт.

G11142

KIT

LINERS - connecting rod bearing, top and bottom half (.002" undersize), pistons

4шт.

G11143

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.020" undersize), pistons

4шт.

G11145

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.040" Semi-finished), pistons

4шт.

G11701

BOLT

- connecting rod, pistons

8шт.

G19902

SLEEVE ASSY

Set of 4 matched aluminum pistons, sleeves, rings, pins and retaining rings, connecting rod

1шт.

G49001

X

NUT - connecting rod bolt (3/8" pal nut), pistons

8шт.

VT132

X

SLEEVE - cylinder (3/4" bore) See VTA557, connecting rods and pistions

4шт.

VT331

PISTON - cast iron, 4 ring (See G19902), pistons

4шт.

VT549

PISTON - 4 ring (High altitude engine) (See VTA1130), connecting rods

4шт.

VT3363

X

RING - retaining, piston pin, connecting rods

8шт.

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - cylinder sleeve ( replaced VT3375 ), pistons and connecting rods

8шт.

VT3386

X

PIN - wrist, piston, connecting rods

4шт.

VT3388

X

RING - piston, 1/8" taper face (See G10265 or VTA319), connecting rods

12шт.

VT3392

X

BUSHING - piston pin, connecting rods

4шт.

VT4506

X

NUT - connecting rod bolt (3/8" N.F.), pistons

8шт.

VT4538

X

ROD - connecting (Use VTA854), pistons

1шт.

VT4557

X

RING - piston oil ring (See G10265 or VTA319), connecting rods

4шт.

A30221

PACKAGE, RINGS

Set of piston rings (See G10265) (replaced VTA319 ), connecting rods

1шт.

VTA854

X

CONNECTING ROD ASSEMBLY, pistons

4шт.

G19902

SLEEVE ASSY

Set of 4 matched pistons, sleeves, rings, pins and retaining rings (High altitude engine) (replaced VTA1130), connecting rods

1шт.
