Запчасти Case IH VA-SERIES (004) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN, CYLINDER HEAD (02) - ENGINE

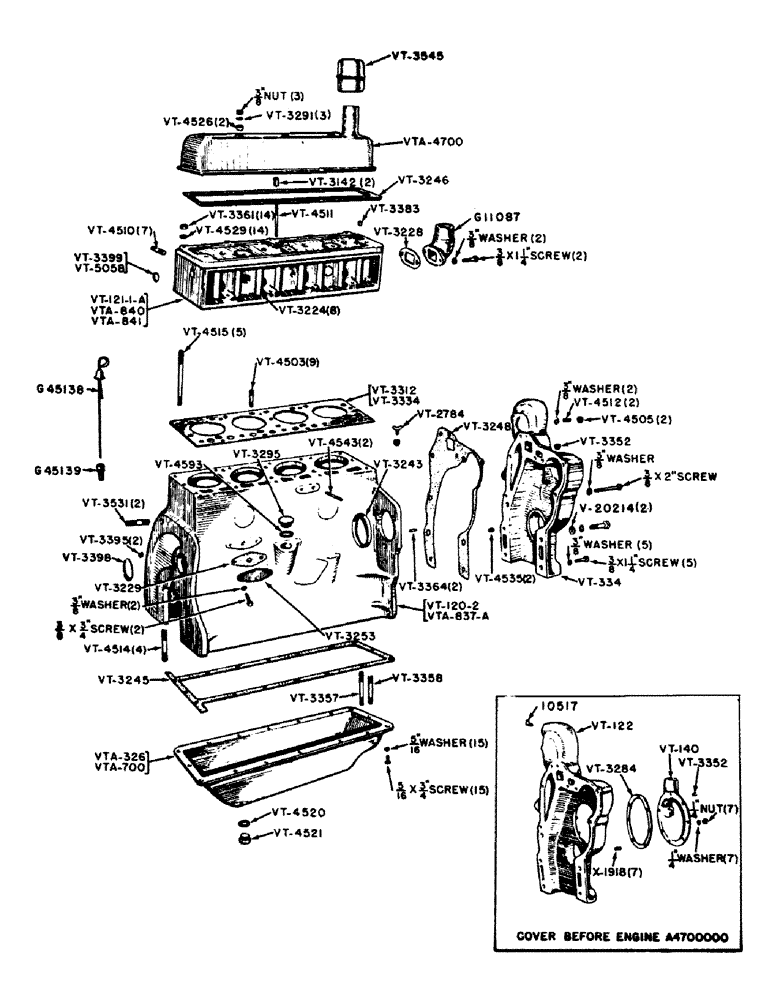

Схема запчастей Case IH VA-SERIES - (004) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN, CYLINDER HEAD (02) - ENGINE

Артикул

Название

Примечание

Количество

G1152

ELBOW - (Use G11087)

1шт.

G11087

ELBOW - water outlet (Includes 3/8" pipe plug)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" screw - cap. hex. head, U.N.C. with lockwasher

2шт.

VT121-1-A

HEAD - cylinder with valve guides and seats (Engines before #VAB12098)

1шт.

VT137

ELBOW - water outlet (Use G11087)

1шт.

VT148

HEAD - cylinder (Use VTA840)

1шт.

VT159

HEAD - cylinder (Use VTA841)

1шт.

VT3142

X

SPACER - cylinder head cover

2шт.

VT3224

TUBE - push rod

8шт.

VT3228

X

GASKET - water outlet elbow

1шт.

VT3246

GASKET - valve cover

1шт.

VT3291

X

WASHER - valve cover stud (3/4" O.D. x 13/32" I.D. x 1/8")

3шт.

VT3312

X

GASKET - cylinder head (Gasoline engines)

1шт.

VT3334

X

GASKET - cylinder head (Low cost fuel engines)

1шт.

VT3361

X

NUT - hexagon 1/2", U.N.F. (After engine #VAB12908)

14шт.

VT3383

X

PLUG - fuse

1шт.

VT3399

PLUG - VT121-1-A head (1" dia.)

1шт.

VT3545

X

CAP - oil filler and breather

1шт.

VT4510

X

STUD - manifold 3/8" x 1-3/4" (Low cost fuel engines)

6шт.

VT4510

X

STUD - manifold 3/8" x 1-3/4" (Gasoline engines)

7шт.

VT4511

STUD - cylinder head cover 3/8" x 5"

1шт.

VT4526

X

SPACER - upper valve cover studs

2шт.

VT4529

WASHER

- cylinder head studs (After engine #VAB12908)

14шт.

VT4591

X

STUD - manifold 3/8" x 4-5/8" (Engines before #A4700000)

1шт.

VT5058

PLUG - VTA840 and VTA841 head (1-1/8" dia.)

1шт.

VTA840

HEAD - cylinder with valve guides and seats (Gasoline)

1шт.

VTA841

HEAD - cylinder with valve guides and seats (Low cost fuel)

1шт.

VTA4700

COVER - valve, assembly

1шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hex. U.N.C.

3шт.

X18237

NUT - hexagon, 3/8" U.N.F. (Engines before #VAB12908)

14шт.

G45138

DIPSTICK

ROD - oil gauge

1шт.

G45139

BRACKET

SUPPORT - oil gauge rod

1шт.

VT120-2

BLOCK - cylinder (Engines before #VAB12908) (Use VTA837A and VTA840 or VTA841)

1шт.

VT328A

BLOCK - cylinder (Use VTA837A)

1шт.

VT2784

X

COCK - drain

1шт.

VT3229

X

GASKET - oil filter pad

1шт.

VT3243

X

COVER - magneto drive hole

1шт.

VT3253

COVER - oil filter pad

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - cap. hex. head, U.N.C. with lockwasher

2шт.

VT3295

COVER - distributor drive hole

1шт.

VT3357

STUD - front main bearing, 1/2" x 4"

1шт.

VT3358

STUD - front main bearing, 1/2" x 3-11/16"

1шт.

VT3364

X

PIN - crankshaft thrust washer

2шт.

VT3395

X

PLUG - pipe 1/4", socket head

2шт.

VT3398

X

PLUG - hubbard 2-1/8" diameter

1шт.

VT3531

X

STUD - torque tube to block, 5/8" x 3"

2шт.

VT4503

X

STUD - cylinder head, 1/2" x 2"

9шт.

VT4508

STUD - generator bracket, 3/8" x 1-1/4"

2шт.

VT4514

STUD - center and rear bearing caps, 1/2" x 3-1/8"

4шт.

VT4515

X

STUD - cylinder head, 1/2" x 5-13/16"

5шт.

VT4543

X

STUD - governor rod guide, 5/16" x 1-1/2"

2шт.

VT4593

X

SEAL - "O" ring, distributor

1шт.

VTA837A

BLOCK - cylinder

1шт.

NSS

NOT SOLD SEPARAT

1/8" plug - pipe, square head

1шт.

X19908

STUD - cylinder head, 3/8" x 2-1/8" (Engines before #VAB12908)

4шт.

X19951

STUD - bearing caps, 1/2" x 3-1/4" (Engines before #VAB12908)

1шт.

X19954

STUD - bearing caps, 3/8" x 5-3/4" (Engines before #VAB12908)

5шт.

X19981

STUD - cylinder head, 3/8" x 1-13/16" (Engines before #VAB12908)

5шт.

X19984

STUD - cylinder head, 1/2" x 2-1/2" (After #VAB12908 before #A4700000)

4шт.

VT3245

X

GASKET - oil pan

1шт.

VT4520

X

GASKET - drain plug

1шт.

VT4521

X

PLUG - drain

1шт.

VTA326

OIL PAN (Gasoline engines) (Includes VT4520 gasket and VT4521 plug)

1шт.

VTA700

OIL PAN (Low cost fuel engines)

1шт.

NSS

NOT SOLD SEPARAT

1/4" plug - pipe, square head (Brass)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" screw - cap, hex., head, U.N.C. with lockwasher

15шт.

VT122

COVER - timing gear (Before engine #A4700000)

1шт.

VT140

COVER - governor inspection (Before engine #A4700000)

1шт.

VT334

COVER - timing gear (After engine #A4700000)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

5шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3-1/4" screw - cap, hex. head, U.N.C. with lockwasher

3шт.

V20214

WASHER

- 3/4" O.D. x 13/32" I.D. x 1/16"

2шт.

VT3248

X

GASKET - gear cover

1шт.

VT3284

X

GASKET - inspection cover (Before engine #A4700000)

1шт.

VT3352

X

PLUG - pipe, 1/8" slotted head

1шт.

VT4505

NUT - hexagon 3/8"

2шт.

VT4512

X

STUD - water pump, 3/8" x 1"

2шт.

NSS

NOT SOLD SEPARAT

3/8" washer - Shakeproof, I.T.

2шт.

VT4535

X

RING - dowel

2шт.

X1918

STUD - governor inspection cover, 1/4" x 7/8" (Before engine #A4700000)

7шт.

NSS

NOT SOLD SEPARAT

1/4" nut - hexagon with lockwasher (Before engine #A4700000)

7шт.

10517

HOSE

FITTING - grease (Before engine #A4700000)

1шт.

Выбрано товаров: 84
