Запчасти Case IH VA-SERIES (147) - DRAWBAR, VAC, VA, VAO, VAH (09) - CHASSIS

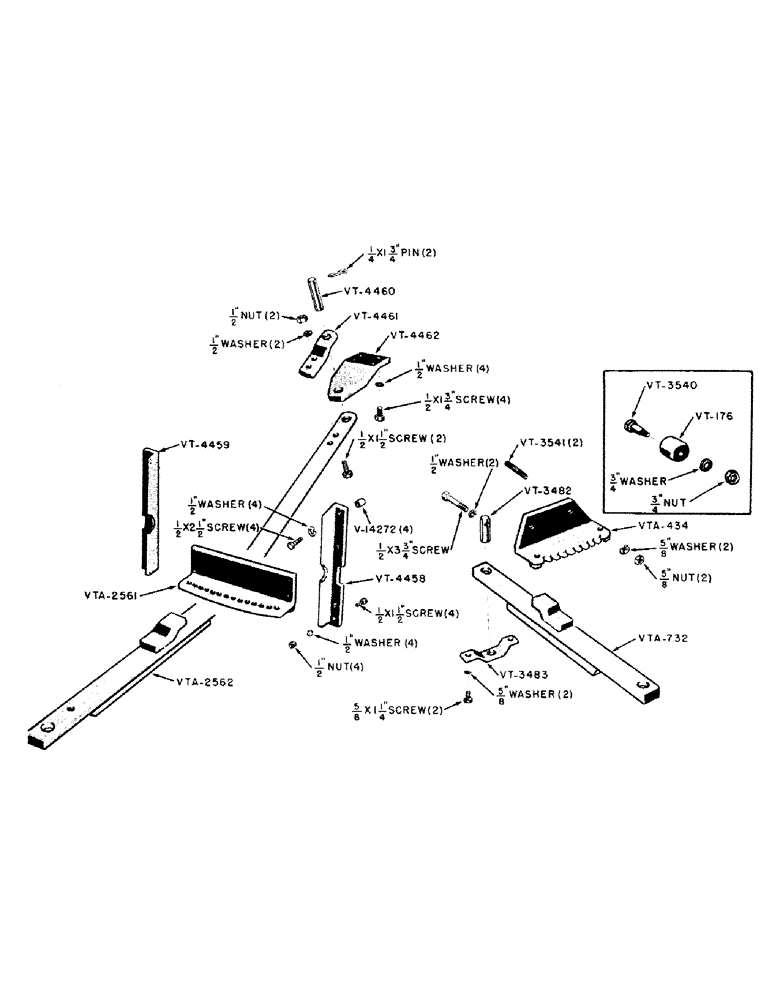

Схема запчастей Case IH VA-SERIES - (147) - DRAWBAR, VAC, VA, VAO, VAH (09) - CHASSIS

Артикул

Название

Примечание

Количество

V14272

FUEL TANK

SPACERS - drawbar support angle (VAH), Start Serial: 5370000

4шт.

VT176

ROLLER (VAC, VA, VAO), Serial Range: -4927519

1шт.

VT3482

PIN - drawbar (VAC, VA, VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-3/4" screw - cap, hex. head, U.N.C. with lockwasher (VAC, VA, VAO)

1шт.

VT3483

BRACKET - drawbar, front (VAC, VA, VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher (VAC, VA, VAO)

2шт.

VT3540

BOLT - drawbar roller (VAC, VA, VAO), Serial Range: -4927519

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.C. with lockwasher (VAC, VA, VAO)

1шт.

VT3541

STUD - drawbar, 5/8" x 2" (VAC, VA, VAO)

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher (VAC, VA, VAO)

2шт.

VT4458

ANGLE - support, right-hand (VAH)

1шт.

VT4459

ANGLE - support, left-hand (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" screw - cap, hex. head, U.N.C. w/hex. nut and 1/washer (VAH)

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" screw - cap, hex. head, U.N.C. with lockwasher (VAH)

4шт.

VT4460

PIN - drawbar (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" pin - cotter (VAH)

2шт.

VT4461

STRAP - pivot (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" screw - cap, hex. head, U.N.C. w/hex. nut and 1/washer (VAH)

2шт.

VT4462

BRACKET - pivot (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher (VAH)

4шт.

VTA362

DRAWBAR (Use VTA-732), Serial Range: -4927519

1шт.

VTA434

SUPPORT ASSEMBLY - drawbar (VAC, VA, VAO)

1шт.

VTA732

DRAWBAR (VAC, VA, VAO)

1шт.

VTA2561

SUPPORT ASSEMBLY - drawbar (VAH)

1шт.

VTA2562

DRAWBAR (VAH)

1шт.

Выбрано товаров: 25
