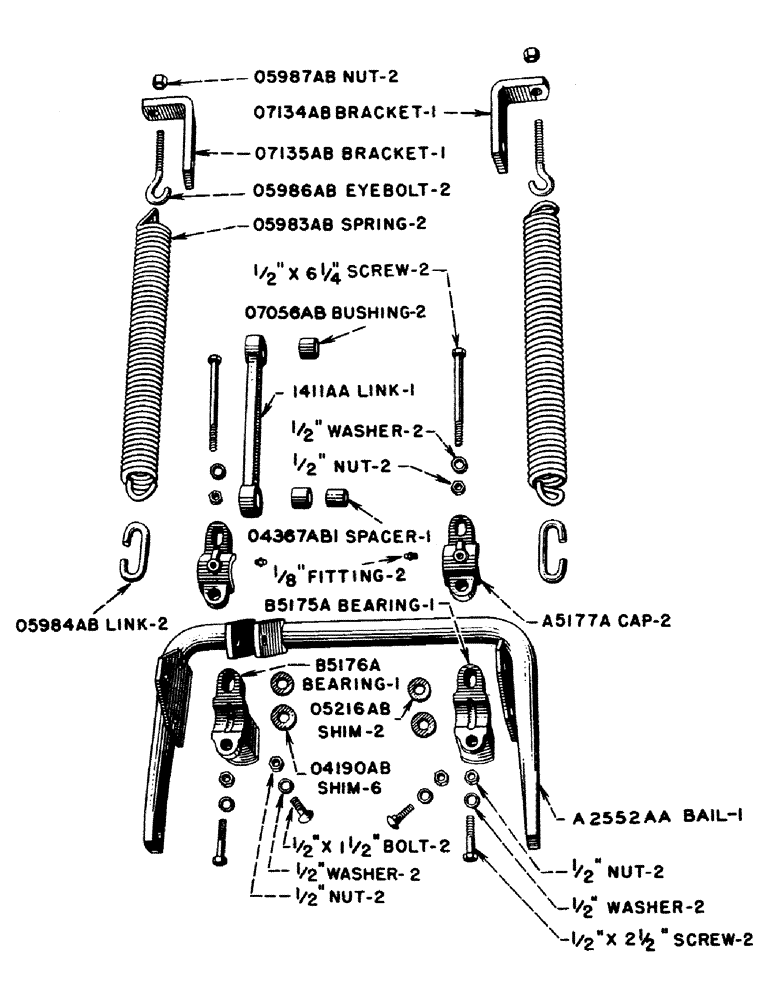

Запчасти Case IH SO-SERIES (132) - RAISING BAIL, FOR SC AND SO TRACTORS (06) - POWER TRAIN

B5175A

BEARING, raising bail, R.H. Tractor No. 4803222 and after, except No. 4803393 to 4803413 inclusive. See A5374A.

1шт.

BOLT, 1/2" x 1-1/2" carriage, with hexagon nut

1шт.

WASHER, 1/2" standard lock

1шт.

B5176A

BEARING, raising bail, L.H. Tractor No. 4803222 and after, except No. 4803393 to 4803413 inclusive. See A5375A.

1шт.

BOLT, 1/2" x 1-1/2" carriage, with hexagon nut

1шт.

WASHER, 1/2" standard lock

1шт.

A5177A

CAP, raising bail bearing. Tractor No. 4803222 and after, except No. 4803393 to 4803413 inclusive. See A5376A

2шт.

FITTING, 1/8" straight Lincoln No. 5000

2шт.

WASHER, 1/2" standard lock

4шт.

WASHER, 1/2" plain

2шт.

NUT, 1/2" hexagon, light, N.F. thread

4шт.

SCREW, 1/2" x 6-1/4" hexagon head cap, N.F. thread

2шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread

2шт.

A5374A

BEARING, raising bail, R.H. Prior to tractor No. 4803222, also on tractor No. 4803393 to 4803413 inclusive. See B5175A, SC

1шт.

BOLT, 1/2" x 1-1/2" carriage, with hex. nut, SC

1шт.

BOLT, 1/2" x 2" machine, with hex. nut, SC

1шт.

WASHER, 1/2" standard lock, SC

2шт.

A5375A

BEARING, raising bail, L.H. Prior to tractor No. 4803222, also on tractors No. 4803393 to 4803413 inclusive. See B5176A, SC

1шт.

BOLT, 1/2" x 1-1/2" carriage with hex. nut, SC

1шт.

BOLT, 1/2" x 2" machine, with hex. nut, SC

1шт.

WASHER, 1/2" standard lock, SC

2шт.

A5376A

CAP, raising bail bearing. Prior to tractor No. 4803222, also on tractors No. 4803393 to 4803413 inclusive. See A5177A, SC

2шт.

BOLT, 1/2" x 2" machine, with hex. nut, SC

2шт.

BOLT, 1/2" x 2-3/4" machine, with hex. nut, SC

2шт.

WASHER, 1/2" standard lock, SC

4шт.

FITTING, 1/8" straight Lincoln No. 5000, SC

2шт.

O3816AB

SPACER, connecting link. Prior to tractor No. 4904625. See O4367AB1, SC

1шт.

SCREW, 1/2" x 2-3/4" hexagon head cap, N.F. thread

1шт.

WASHER, 1/2" standard lock, SC

1шт.

NUT, 1/2" hexagon, light, N.F. thread, SC

1шт.

O4190AB

SHIM, raising bail bearing, 1/32" thick

6шт.

O4367AB1

SPACER, connecting link. Tractor No. 4904625 and after. See O3816AB

1шт.

SCREW, 3/4" x 3" hexagon head cap, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

O5216AB

SHIM, raising bail bearing, 3/16" thick. Tractor No. 4803222 and after except No. 4803393 to 4803413 inclusive.

2шт.

O5983AB

SPRING, raising bail

2шт.

O5984AB

LINK, raising bail spring

2шт.

O5986AB

EYEBOLT, raising bail spring

2шт.

O5987AB

NUT, raising bail eyebolt

2шт.

O7056AB

X

BUSHING, connecting link

2шт.

O7134AB

BRACKET, raising bail spring, R.H. Tractor No. 4803222 and after except No. 4803393 to 4803413 inclusive. See 1932AA.

1шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread

1шт.

NUT, 1/2" hexagon, light, N.F. thread

1шт.

O7135AB

BRACKET, raising bail spring, L.H. Tractor No. 4803222 and after except No. 4803393 to 4803413 inclusive. See 1933AA.

1шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread

1шт.

NUT, 1/2" hexagon, light, N.F. thread

1шт.

1411AA

LINK, connecting, with bushings

1шт.

1932AA

BRACKET, raising bail spring, R.H. Prior to tractor No. 4803222, also on tractors No. 4803393 to 4803413 inclusive. See O7134AB, SC

1шт.

1933AA

BRACKET, raising bail spring, L.H. Prior to tractor No. 4803222, also on tractors No. 4803393 to 4803413 inclusive. See O7135AB, SC

1шт.

2552AA

BAIL, raising. Use 3446AA

1шт.

A2552AA

BAIL, raising. Tractor No. 4904625 and after. See 3446AA

1шт.

3446AA

BAIL, raising, with parts. Furnished when 2552AA is ordered for repairs. Prior to tractor No. 4904625. See A2552AA. Consists of:

1шт.

A2552AA

BAIL

1шт.

O4367AB1

SPACER

1шт.

3/4" x 3" cap screw, hex. hd. N.F. thread

1шт.

3/4" hex. nut, light, N.F. thread

1шт.

3/4" standard lockwasher

1шт.
