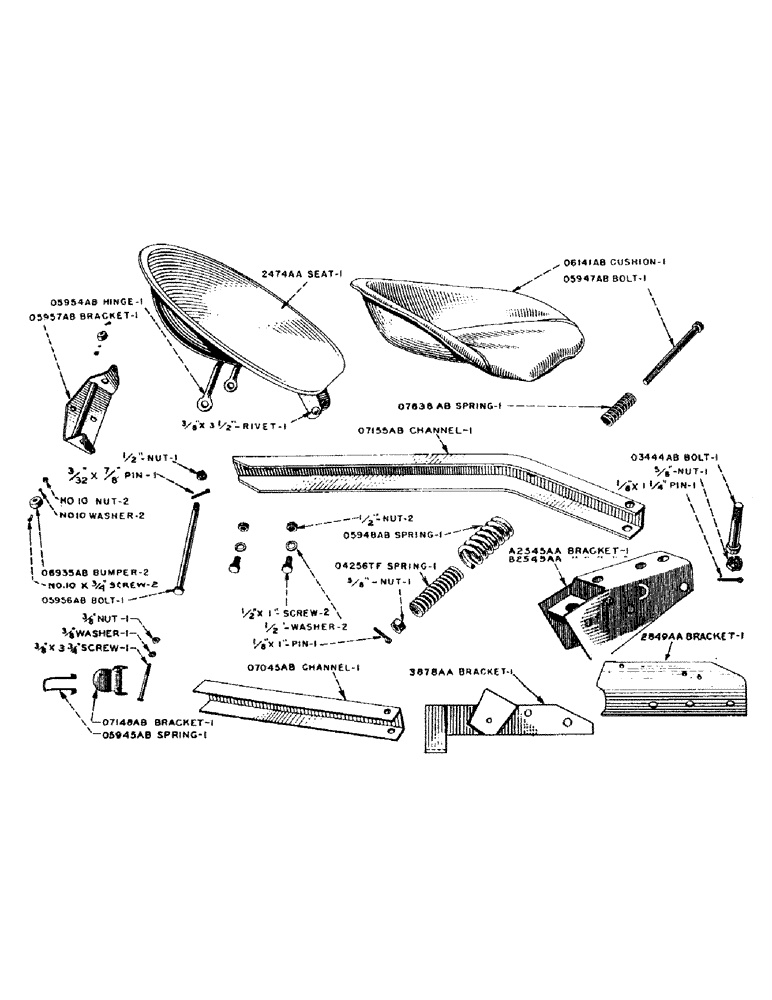

Запчасти Case IH SO-SERIES (122) - OPERATORS SEAT (06) - POWER TRAIN

O3444AB

BOLT, seat channel pivot

1шт.

NUT, 5/8" castellated, light, N.F. thread

1шт.

PIN, 1/8" x 1-1/4" cotter

1шт.

O5944AB

BRACKET, starting crank holder spring. Prior to tractor No. 4600000. See O7148AB., SC

1шт.

SCREW, 3/8" x 3-3/4" hexagon head cap, N.F. thread, SC

1шт.

O5945AB

SPRING, starting crank holder, SC

1шт.

O5947AB

BOLT, seat spring, S, SC

1шт.

PIN, 1/8" x 1" cotter, S, SC

1шт.

NUT, 5/8" hexagon, light, N.F. thread, S, SC

1шт.

O5948AB

X

SPRING, seat, large

1шт.

O5949AB

CHANNEL, seat. Use O7155AB with O7148AB

1шт.

O5949AB1

CHANNEL, seat. Prior to tractor No. 4600000. Use O7155AB with O7148AB, S, SC

1шт.

O5954AB

HINGE, seat

1шт.

O5956AB

BOLT, seat hinge

1шт.

NUT, 1/2" - 20 light, castle

1шт.

PIN, 3/32" x 7/8" cotter

1шт.

O5957AB

BRACKET, seat rear support

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.F. thread

2шт.

NUT, 1/2" hexagon, light, N.F. thread

2шт.

WASHER, 1/2" standard lock

2шт.

O5958AB

X

BUMPER, seat rear support. Use O6935AB.

1шт.

O6141AB

CUSHION, seat

1шт.

O6348AB

BUMPER, seat channel rubber. Use O7638AB

1шт.

O6349AB

WASHER, for O6348AB rubber bumper

1шт.

O6431AB

CHANNEL, seat. Prior to tractor No. 4600000. See O7045AB., SO

1шт.

O6432AB

BRACKET, seat channel. Used prior to tractor No. 4600000 on tractor without hydraulic control unit. See 2849AA and 3878AA., SO

1шт.

O6433AB

BOLT, seat spring. Prior to tractor No. 4600000. Replaced by 5/8" x 7" carriage bolt, listed with 2849AA, SO

1шт.

O6935AB

X

BUMPER, seat rear support

2шт.

SCREW, No. 10 x 3/4" round head machine, N.C. thread

2шт.

NUT, No. 10 hexagon, N.C. thread

2шт.

WASHER, No. 10 standard lock

2шт.

O7045AB

CHANNEL, seat. Tractor No. 4600000 and after. See O6431AB, SO

1шт.

O7148AB

BRACKET, starting crank holder. Tractor No. 4600000 and after. See O5944AB, SC

1шт.

SCREW, 3/8" x 3-3/4" hexagon head cap, N.F. thread, SC

1шт.

NUT, 3/8" hexagon, light, N.F. thread, SC

1шт.

WASHER, 3/8" standard lock, SC

1шт.

O7155AB

CHANNEL seat. Tractor No. 4600000 and after. See O5949AB1, S, SC

1шт.

O7638AB

SPRING, seat channel rebound

1шт.

O7993AB

BOLT, front support bracket, for A2474AA seat (3/8" x 4" long)

1шт.

NUT, 3/8" - 24 light, castle

1шт.

PIN, 3/32" x 7/8" cotter

1шт.

O4256TF

X

SPRING, seat, small

1шт.

2474AA

SEAT, operator's. Use A2474AA

1шт.

RIVET, 3/8" x 3-1/2" round head. See O7993AB.

1шт.

A2474AA

SEAT, operator's

1шт.

A2545AA

BRACKET, seat channel, with starting crank holder. Used prior to tractor No. 5313815 on tractors without hydraulic control unit. Use B2545AA, SC

1шт.

SCREW, 5/8" x 1-1/4" hexagon head cap, N.C. thread, SC

2шт.

WASHER, 5/8" standard lock, SC

2шт.

B2545AA

BRACKET, seat channel, with starting crank holder. Tractor No. 5313815 and after. Also used prior to No. 5313815 on tractors with hydraulic control unit. See B2590AA, S, SC

1шт.

B2590AA

BRACKET, seat channel, with tie strap. Used prior to tractor No. 5313815 on tractors without hydraulic control unit. See B2545AA, S

1шт.

SCREW, 5/8" x 1-1/4" hexagon head cap, N.C. thread, S

2шт.

WASHER, 5/8" standard lock, S

2шт.

2849AA

BRACKET, seat channel, with seat spring holder. Used from tractor No. 4600000 to tractor No. 5313815 on tractors without hydraulic control unit. See O6432AB and 3878AA, SO

1шт.

SCREW, 5/8" x 1-1/4" hexagon head cap, N.C. thread, SO

2шт.

WASHER, 5/8" standard lock, SO

2шт.

BOLT, 5/8" x 7" carriage, with hexagon nut, SO

1шт.

3878AA

BRACKET, seat channel. Tractor No. 5313815 and after. Also used prior to No. 5313815 on tractors with hydraulic control unit. See O6432AB and 2849AA

1шт.
