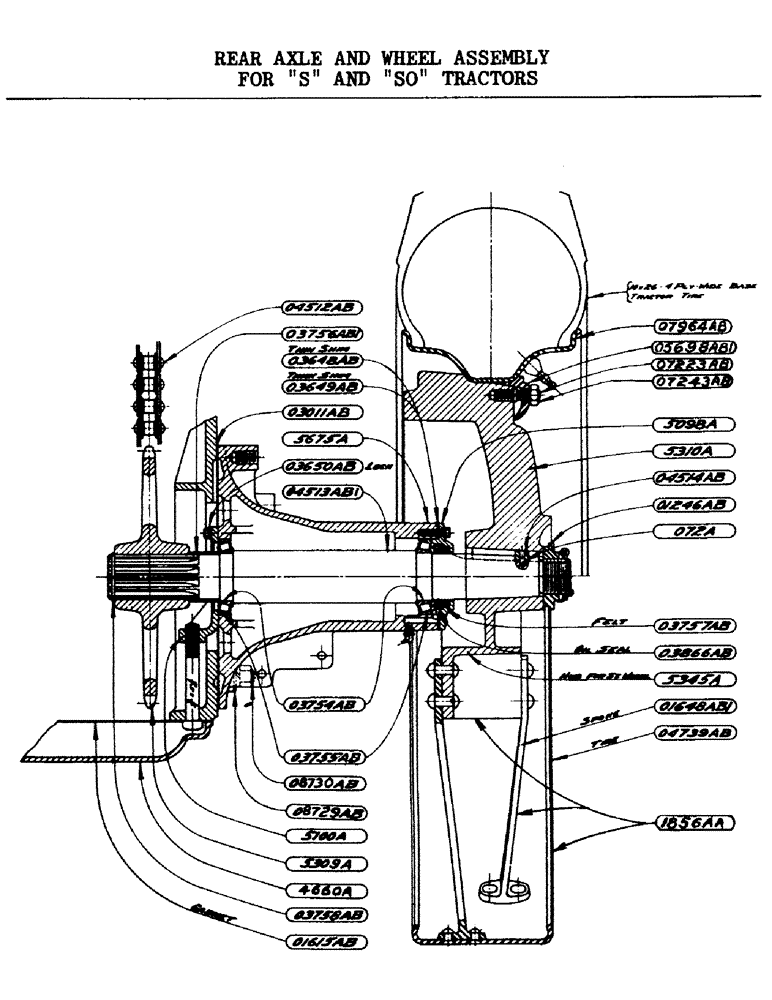

Запчасти Case IH SO-SERIES (077) - REAR AXLE AND WHEEL ASSEMBLY, FOR S AND SO TRACTORS, S, SC, SO (06) - POWER TRAIN

5098A

CAP, rear axle outer bearing

2шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

12шт.

WASHER, 3/8" standard lock

12шт.

A5099A

SPROCKET, rear axle, 45 tooth, SC

2шт.

A5099A

SPROCKET, rear axle, 45 tooth. For tractors equipped with rubber tires. See 5309A, SO

2шт.

A5099A

SPROCKET, rear axle, 45 tooth. For export

2шт.

5100A

CAP, rear axle inner bearing

2шт.

SCREW, 3/8" x 1-1/8" hexagon head cap, N.C. thread

12шт.

BOLT, 3/4" x 5-1/2" square head machine, N.C. thread

2шт.

5309A

SPROCKET, rear axle, 36 tooth, S

2шт.

5309A

SPROCKET, rear axle, 36 tooth. For tractors with steel wheels. See A5099A, SO

2шт.

5662A

HOUSING REAR AXLE, SC

2шт.

FITTING, 1/8" straight Lincoln no. 5000, SC

2шт.

5675A

HOUSING, rear axle, S, SO

2шт.

FITTING, 1/8" - 45 degrees Lincoln no. 5200, S, SO

2шт.

O72A

PIN, dowel, rear axle shaft

2шт.

O1246AB

NUT, rear axle shaft, S, SO

2шт.

O3011AB

GASKET

rear axle housing

2шт.

O3647AB

SHAFT, rear axle. See O4515AB, SC

2шт.

O3648AB

SHIM,.005" Thk

Rear axle outer bearing .005" Thk

10шт.

O3649AB

SHIM,.0125" Thk

Rear axle outer bearing .0125" Thk

6шт.

O3650AB

WASHER, lock, rear axle inner bearing plate

6шт.

O3754AB

X

CONE, rear axle shaft bearing, Timken no. 399A

4шт.

O3755AB

X

CUP, rear axle shaft bearing, Timken no. 394A

4шт.

O3756AB1

SPACER, rear axle shaft

2шт.

O3757AB

FELT

WASHER, felt, rear axle

2шт.

O3758AB

RING, snap, rear axle shaft

2шт.

O3783AB

CHAIN, roller. Used with A5099A sprocket. See O4512AB

2шт.

O3866AB

OIL SEAL

SEAL, oil, rear axle shaft

2шт.

O3917AB

KEY, rear wheel hub and axle. Used with 5139A hub. See O6904AB, SC

2шт.

O3996AB

LINK, drive chain roller

1шт.

O3997AB

LINK, connecting, with plate and cotter pins, for drive chain

1шт.

PIN, 3/32" x 5/8" hardened cotter, for O3997AB link

1шт.

O4512AB

CHAIN, roller. Used with 5309A sprocket. See O3783AB, S, SO

2шт.

O4513AB

SHAFT, rear axle (26-9/32" long). Use O4513AB1

1шт.

O4513AB1

SHAFT, rear axle (27" long), S, SO

2шт.

PIN, 1/4" x 2-1/2" cotter, S, SO

2шт.

O4514AB

KEY, rear wheel hub and axle, S, SO

2шт.

O4515AB

SHAFT, rear axle, 96" wheel tread (8 inches longer than regular shaft), SC

2шт.

O6904AB

KEY, rear wheel hub and axle. Used with 5880A or A5880A hub. See O3917AB, SC

2шт.

O8729AB

X

WASHER, rear axle housing stud

12шт.

O8730AB

STUD, rear axle housing to transmission case (3/4" x 3-1/4" long) See O8731AB, S, SO

11шт.

08730AB

STUD, rear axle housing to transmission case (3/4" x 3-1/4" long) See O8731AB, SC

9шт.

NUT, 3/4" hexagon, light, N.F. thread, S, SO

11шт.

NUT, 3/4" hexagon, light, N.F. thread, SC

9шт.

WASHER, 3/4" standard lock, S, SO

12шт.

WASHER, 3/4" standard lock, SC

10шт.

O8731AB

STUD, rear axle housing to transmission case (3/4" x 3-1/2" long) See O8730AB, SC

2шт.

NUT, 3/4" hexagon, light, N.F. thread, SC

2шт.

WASHER, 3/4" standard lock, SC

2шт.

2686AA

THIMBLE FOR INSTALLING O3866AB OIL SEAL, SC

1шт.

2687AA

THIMBLE FOR INSTALLING O3866AB OIL SEAL, S, SO

1шт.
