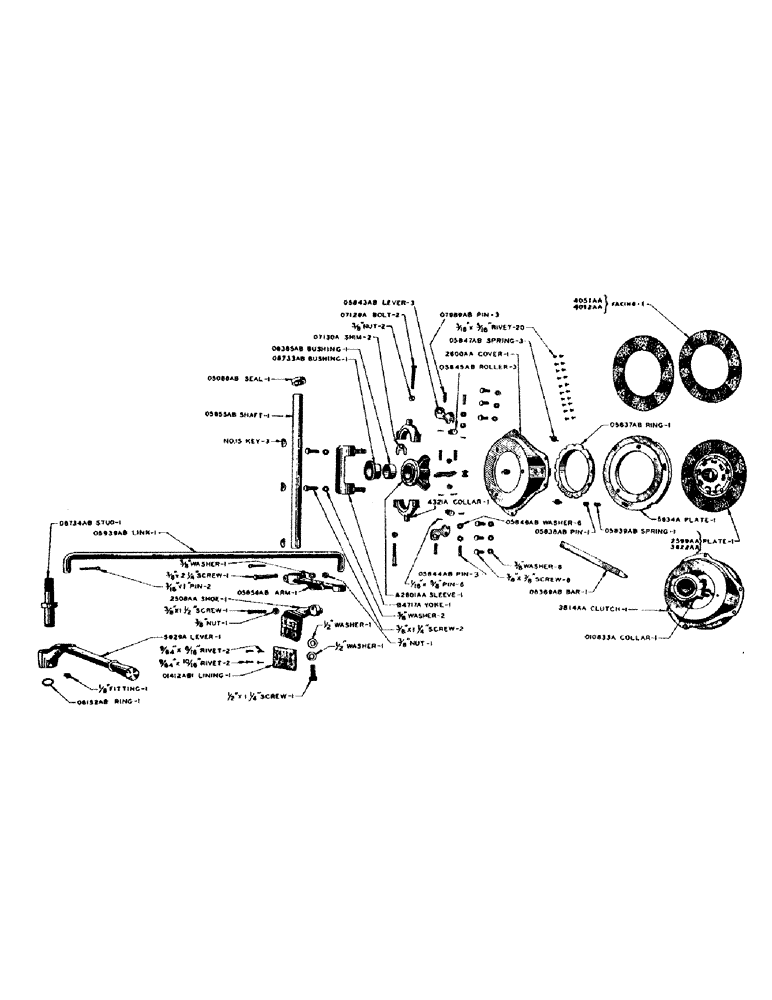

Запчасти Case IH SO-SERIES (058) - CLUTCH, S, SC, SO (06) - POWER TRAIN

4321A

X

COLLAR, clutch cone, (2 halves). Use O10833A

1шт.

4717A

X

YOKE, clutch throwout, Use B4717A

1шт.

A4717A

X

YOKE, clutch throwout, Use B4717A

1шт.

B4717A

X

YOKE, clutch throwout

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

5634A

PLATE, clutch pressure

1шт.

5651A

SHOE, belt pulley brake. Use 2508AA

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

1шт.

SCREW, 3/8" x 1-1/2" flat point set, N.C. thread

1шт.

NUT, 3/8" hexagon jam, N.C. thread

1шт.

WASHER, 1/2" standard lock

1шт.

WASHER, 1/2" plain

1шт.

5667A

LEVER, clutch throwout. Use 5929A

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

5929A

LEVER, clutch throwout hand

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

O7129A

BOLT, clutch cone collar

2шт.

NUT, 3/8" castellated

2шт.

O7130A

SHIM, clutch cone collar

2шт.

O1412AB1

X

LINING, belt pulley brake shoe

1шт.

RIVET, 9/64" x 8/16" brass tubular

2шт.

RIVET, 9/64" x 10/16" brass tubular

2шт.

O2762AB

RIVET FOR O8550AB FACING. (3/16" dia. x 5/16" brass tubular rivet, countersunk head, No. 8 special)

20шт.

O5086AB

X

SEAL OIL, clutch throwout shaft

1шт.

O5837AB

RING, clutch adjusting

1шт.

O5838AB

PIN, clutch adjustng lock

1шт.

O5839AB

X

CLUTCH, clutch adjusting lock pin

1шт.

O5843AB

LEVER, clutch

3шт.

O5844AB

X

PIN, clutch lever pivot

3шт.

PIN, 1/16" x 5/8" cotter

3шт.

O5845AB

ROLLER, clutch lever

3шт.

O5846AB

WASHER, clutch lever pin

6шт.

O5847AB

SPRING

clutch release

3шт.

O5855AB

SHAFT, clutch throwout

1шт.

KEY, No. 15 Woodruff

3шт.

O5856AB

ARM, clutch throwout

1шт.

SCREW, 3/8" x 2-1/4" hexagon head cap, N.F. thread

1шт.

NUT, 3/8" hexagon, light, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O5939AB

LINK, clutch throwout

1шт.

PIN, 3/16" x 1" cotter

2шт.

O5940AB

GRIP, rubber, for 5667A clutch throwout lever

1шт.

O6152AB

RING, snap, clutch throwout lever

1шт.

O6369AB

BAR, clutch adjusting

1шт.

O6385AB

BUSHING, sliding sleeve, without oil hole

1шт.

A31140

COLLAR

BEARING, clutch cone collar insert. (Used with 2602AA collar only) (Replaces O6386AB)

2шт.

O6734AB

STUD, clutch throwout hand lever

1шт.

O7989AB

PIN

clutch lever guide

3шт.

PIN, 1/16" x 5/8" cotter

3шт.

O8733AB

BUSHING, sliding sleeve, with oil hole

1шт.

O10833A

X

COLLAR, clutch cone, assembly

1шт.

PLUG, 1/8" square head pipe

1шт.

139AA

PINS, set of spreader - to spread engine and transmission. Consists of 2 - O2064AB pins and 8 - 3/16" x 1-1/4" cotter pins

1шт.

2508AA

SHOE, belt pulley brake, with lining

1шт.

2599AA

PLATE

clutch driving, with facing, prior to tractor No. 5308165. See 3822A

1шт.

2600AA

COVER PLATE ASSEMBLY

1шт.

A2601AA

SLEEVE, sliding, assembly

1шт.

2602AA

X

COLLAR, cone, assembly. Use O10833A

1шт.

3814AA

CLUTCH ASSEMBLY, less driving plate. Use 4137AA

1шт.

SCREW, 3/8" x 7/8" hexagon head cap, N.C. thread

6шт.

WASHER, 3/8" standard lock

6шт.

3822AA

X

PLATE, clutch driving, with facing. Tractor No. 5308165 and after. See 2599AA

1шт.

4051AA

FACINGS, set of clutch, with rivets for 2599AA clutch driving plate. Consists of: 2 - facings and 20 - 3/16" x 5/16" brass tubular countersunk rivets No. 1681

1шт.

4052AA

FACINGS, set of clutch, with rivets for 3822AA clutch driving plate, Consists of: 2 - facings and 20 - O2762AB rivets

1шт.
