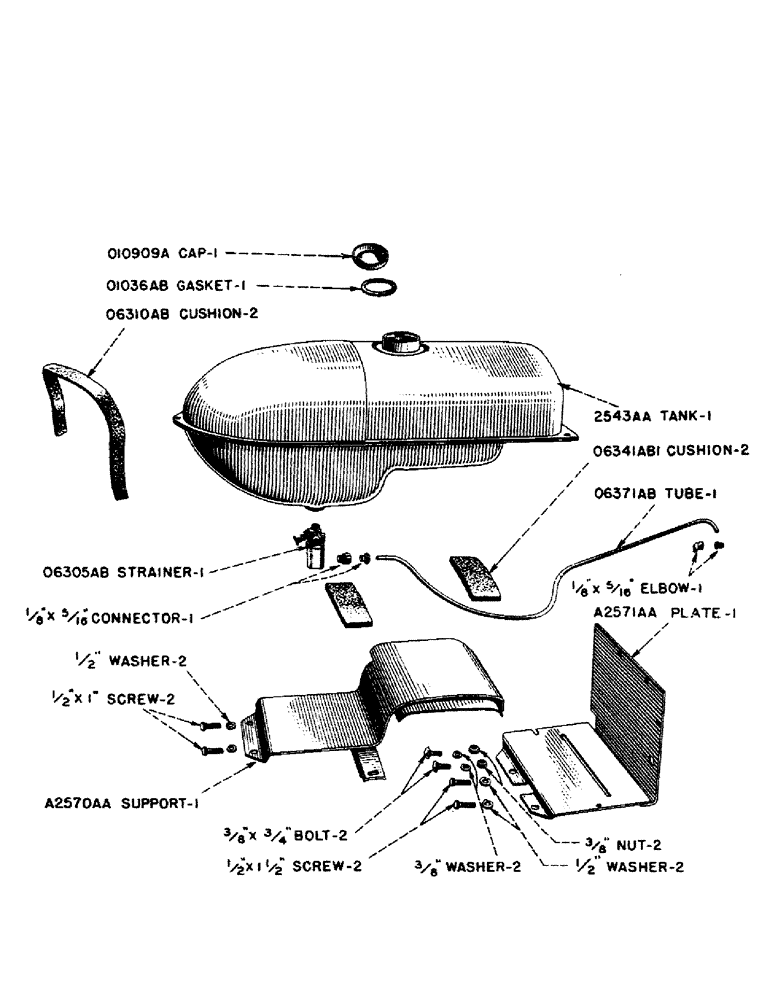

Запчасти Case IH SO-SERIES (050) - FUEL TANK, S, SC, SO (03) - FUEL SYSTEM

O1036AB

X

GASKET, fuel tank cap

1шт.

O4905AB

X

STRAINER, fuel. After tractor No. 5000000. See O6305AB

1шт.

ELBOW, Dole A7 male, 5/16" tube size x 1/8" pipe thread

1шт.

O5996AB

SUPPORT, fuel tank rear, prior to tractor No. 4501149

1шт.

O6305AB

STRAINER, fuel, complete. Prior to tractor No. 50000. Use O4905AB strainer with A7 Dole elbow, 5/16" tube size x 1/8" thread

1шт.

O6310AB

CUSHION, hood anti-squeak, front and rear

2шт.

O6341AB1

CUSHION, fuel tank

2шт.

O6371AB

TUBE, fuel, Serial Range: tank-carburetor

1шт.

CONNECTOR, Dole A3 male, 5/16" tube size x 1/8" pipe thread

1шт.

ELBOW, Dole A7 male, 5/16" tube size x 1/8" pipe thread

1шт.

O6372AB

BRACKET, fuel tank support, front, prior to tractor No. 4501149

1шт.

O10909A

X

CAP, fuel tank filler

1шт.

2543AA

TANK, fuel, complete

1шт.

A2570AA

SUPPORT, battery cover and fuel tank

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

BOLT, 3/8" x 3/4" carriage

2шт.

WASHER, 3/8" standard lock

2шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

A2571AA

PLATE, fuel tank front support, with bracket

1шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread

2шт.

BOLT, 3/8" x 3/4" carriage

2шт.

WASHER, 3/8" standard lock

2шт.

WASHER, 1/2" standard lock

2шт.

NUT, 3/8" hexagon, N.C. thread

2шт.
