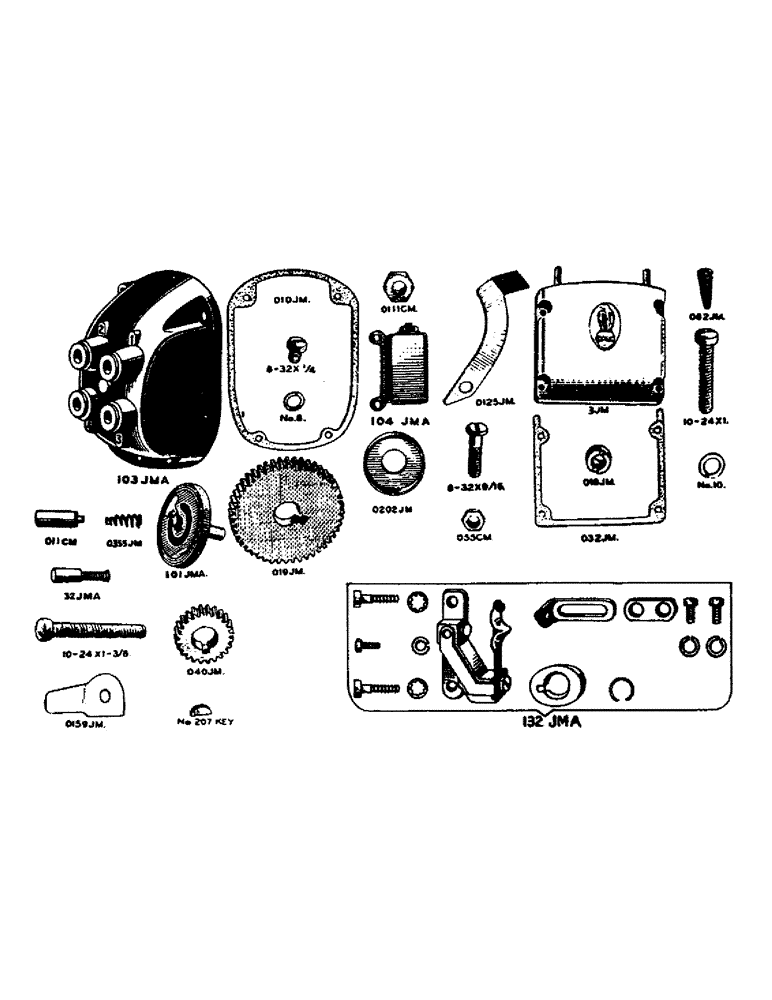

Запчасти Case IH SO-SERIES (033) - PARTS FOR 4-JMA CASE MAGNETO, ORDER FROM AUTHORIZED CASE MAGNETO DISTRIBUTOR OR SERVICE STATION (03) - FUEL SYSTEM

O11CM

BRUSH, 1/4" for 103JMA distributor cap

4шт.

O55CM

NUT, stationary contact screw

2шт.

WASHER, No. 8 standard lock

2шт.

O59CM

WASHER, breaker bar screw

1шт.

O111CM

NUT, condenser

1шт.

3JM

COVER, top. When ordered to replace bakelite cover, also order O351JM insulator

1шт.

SCREW, No. 10-24 x 1" fillister head machine, N.C. thread

4шт.

WASHER, No. 10 standard lock

4шт.

O10JM

GASKET, distributor cap

1шт.

O18JM

NUT, top cover studs

2шт.

O19JM

GEAR, distributor

1шт.

O32JM

GASKET, frame top cover

1шт.

O40JM

GEAR, rotor

1шт.

KEY, No. 207 Woodruff

2шт.

O82JM

SPRING, secondary coil lead

1шт.

O125JM

SPRING, primary ground

1шт.

SCREW, No. 8-32 x 9/16" fillister head machine, N.C. thread

1шт.

WASHER, No. 8 standard lock

1шт.

O159JM

SPRING, primary ground, outside magneto

1шт.

O202JM

WASHER, cupped, for distributor shaft

1шт.

O351JM

INSULATOR, primary wire

1шт.

O355JM

SPRING for O11CM distributor cap brush

4шт.

26JMA

CAP, distributor, with vertical holes for wires - Use 103JMA

1шт.

32JMA

BRUSH, 3/16", with spring for 26JMA distributor cap

4шт.

59JMA

SUPPORT, breaker spring, assembly

1шт.

SCREW, No. 6-40 x 3/8" fillister head machine, N.F. thread

1шт.

WASHER, No. 6 standard lock

2шт.

101JMA

DISC, distributor, assembly

1шт.

103JMA

CAP, distributor, with horizontal holes for wires (Cap includes 4-102JMA brushes and 4-O4449AB1 nipples)

1шт.

SCREW, No. 10-24 x 1-3/8" fillister head machine, N.C. thread

2шт.

WASHER, No. 10 standard lock

2шт.

104JMA

CONDENSER ASSEMBLY

1шт.

SCREW, No. 8-32 x 1/4" fillister head machine, N.C. thread

2шт.

WASHER, No. 8 standard lock

2шт.

132JMA

KIT, contact point. Contains cam, cam ring, breaker bar assembly stationary contact point, plate, screws and lockwashers, also .018" thick gap gauge and complete directions for installing

1шт.
