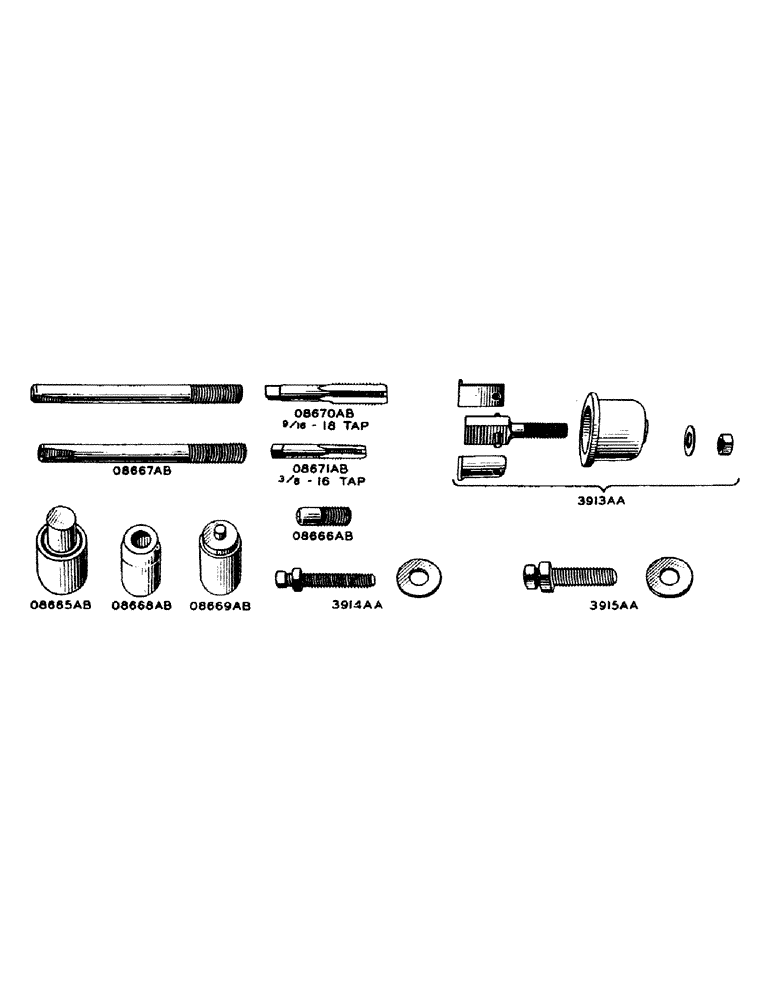

Запчасти Case IH SO-SERIES (169) - SPECIAL TOOLS FOR SERVICING HYDRAULIC CONTROL UNIT (88) - ACCESSORIES

O8665AB

TOOL, bearing pressing

1шт.

O8666AB

STUD, dowel - short

1шт.

O8667AB

STUD, dowel - long

2шт.

O8668AB

THIMBLE, seal (Piston rod)

1шт.

O8669AB

TOOL, valve seat pressing (Relief valve)

1шт.

O8670AB

TAP, 9/16"- 18 standard plug heand

1шт.

O8671AB

TAP, 3/8" - 16 standard plug hand

1шт.

3913AA

PULLER, bearing

1шт.

3914AA

PULLER, valve seat (Relief valve) Consists of:

1шт.

O8685AB

WASHER

1шт.

3/8" x 3" standard head, cup point set screw, N.C. thread

1шт.

3/8" standard hexagon nut

1шт.

3915AA

PULLER, ball check seat, Consists of:

1шт.

9/16" x 2-1/2" standard hexagon head cap screw, N.F. thread (Minimum thread length 2-1/4")

1шт.

9/16" hexagon nut, light, N.F. thread

1шт.

1/2" standard washer

1шт.

3920AA

KIT, service. Consists of above listed items. This is a set of special tools required for servicing the hydraulic control unit

1шт.
