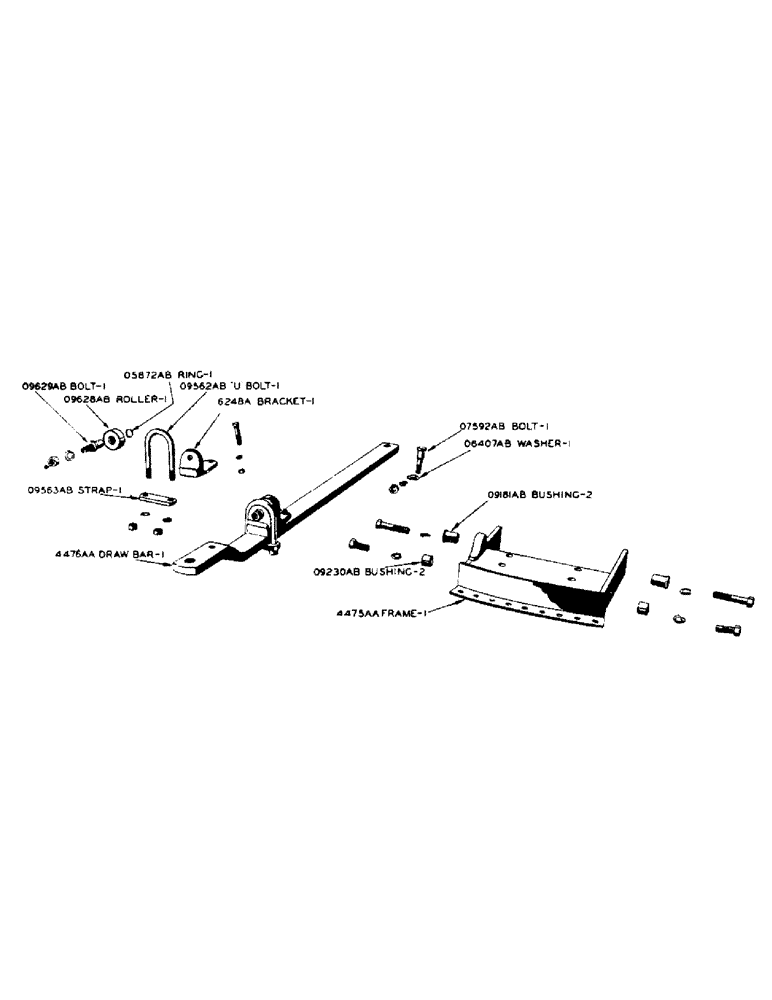

Запчасти Case IH SO-SERIES (136) - DRAW BAR, PLATFORM AND TOOL BOX, TRACTOR S/N 8027115 AND AFTER, S, SC, SO (09) - CHASSIS

6248A

BRACKET - draw bar roller

1шт.

1/2" X 2-1/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O1894AB1

ROLLER - draw bar (SO)

1шт.

O3857AB

BUSHING - draw bar support (S, SO)

2шт.

3/4" X 2-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (S, SO)

2шт.

O5872AB

X

SNAP RING - roller bolt

1шт.

O6407AB

WASHER - spring, draw bar pivot bolt

1шт.

O7274AB

PANEL - fender to platform, R.H. (SO)

1шт.

5/16" X 1" TRUSS HD. MACH. SCREW W/HEX. NUT, LOCKWASHER AND PLAIN WASHER (SO)

2шт.

O7275AB

PANEL - fender to platform, L.H. (SO)

1шт.

5/16" X 1" TRUSS HD. MACH. SCREW W/HEX. NUT, LOCKWASHER AND PLAIN WASHER (SO)

2шт.

O7276AB

SPACER - fender to platform panel (SO)

4шт.

O7592AB

BOLT - draw bar pivot

1шт.

3/4" N.F. HEX. NUT

1шт.

3/4" STD. LOCKWASHER

1шт.

O8486AB

BRACKET - tool box (SO)

1шт.

3/8" X 1" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (SO)

2шт.

O8487AB

PLATE - tool box mounting backing (SO)

1шт.

O8636AB

BOLT - draw bar roller (SO)

1шт.

3/4" N.F. HEX. NUT (SO)

1шт.

3/4" STD. LOCKWASHER (SO)

1шт.

O9181AB

BUSHING - draw bar guide frame (SC)

2шт.

3/4" X 2-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (SC)

2шт.

O9230AB

BUSHING - guide frame (S, SC)

2шт.

O9283AB

SPACER - tool box mounting bracket (S, SC)

1шт.

O9337AB

BRACKET - tool box (S, SC)

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW (S, SC)

2шт.

O9562AB

"U" BOLT - draw bar roller bracket

1шт.

5/8" N.F. HEX. NUT

2шт.

5/8" STD. LOCKWASHER

2шт.

O9563AB

X

STRAP - roller bracket "U" bolt

1шт.

O9628AB

ROLLER - draw bar (S, SC)

1шт.

O9629AB

BOLT - draw bar roller (S, SC)

1шт.

1/8" STR. LINCOLN FITTING NO. 5000 (S, SC)

1шт.

3/4" N.F. HEX. NUT (S, SC)

1шт.

3/4" STD. LOCKWASHER (S, SC)

1шт.

2884AA

BOX - tool

1шт.

5/16" X 5/8" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (SO)

2шт.

5/16" X 3/4" TRUSS HD. MACH. SCREW W/NUT AND LOCKWASHER (S, SC)

1шт.

1/2" X 3/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (S, SC)

1шт.

3935AA

SUPPORT - draw bar, and platform (SO)

1шт.

5/16" X 3/4" TRUSS HD. MACH. SCREW W/HEX. NUT, LOCKWASHER AND PLAIN WASHER (SO)

4шт.

3/4" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (SO)

2шт.

4240AA

PLATFORM - R.H. (S, SC)

1шт.

4241AA

PLATFORM - L.H. (S, SC)

1шт.

4429AA

DRAW BAR - reversible, complete (Includes draw bar with 1 - 6248A bracket, 1 - O1894AB1 roller, 1 - O5872AB snap ring, 1 - O8636AB bolt, 1 - O9562AB "U" bolt and 1 - O9563AB strap) (Replaces A2569AA and 3872AA) (SO)

1шт.

5/8" X 1-3/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (SO)

1шт.

4475AA

FRAME - draw bar guide, with O9230AB bushings (Replaces 4329AA) (SC)

1шт.

3/4" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (SC)

4шт.

4476AA

DRAW BAR - complete (Includes draw bar with 1 6248A bracket, 1 - O5872AB snap ring, 1 - O9562AB "U" bolt, 1 - O9563AB strap, 1 - O9628AB roller and 1 - O9629AB bolt) (Replaces 4401AA) (S, SC)

1шт.

4557AA

FRAME - draw bar guide, with O9230AB bushings (Replaces A2573AA and 4329AA) (S)

1шт.

3/4" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (S)

4шт.
