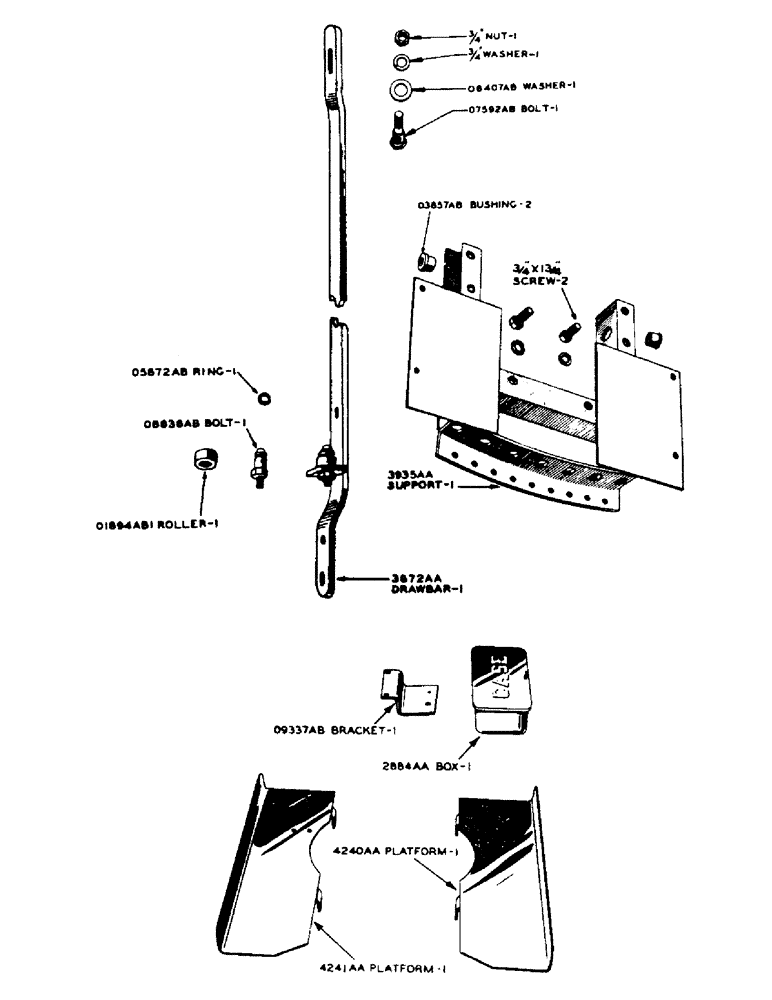

Запчасти Case IH SO-SERIES (133) - DRAW BAR FOR SO TRACT. WITH PTO, PLATFORM AND TOOL BOX FOR S AND SC TRACT (09) - CHASSIS

25431/2A

SPACER - platform wood (SO)

2шт.

6209A

BRACKET - draw bar guide (For "S" with PTO) (S, SC)

1шт.

SCREW - 1/2" x 2-1/4" hex. hd. cap, N.F. thread (S, SC)

1шт.

NUT - 1/2" hex. light, N.F. thread (S, SC)

1шт.

WASHER - 1/2" std. lock (S, SC)

1шт.

O1894AB1

ROLLER - draw bar (S, SO)

1шт.

O1895AB1

BOLT - draw bar roller (See O8636AB) (S, SO)

1шт.

NUT - 3/4" hex. light, N.F. thread (S, SO)

1шт.

WASHER - 3/4" std. lock (S, SO)

1шт.

O3298AB

BUSHING - draw bar support, front and rear (S, SO)

4шт.

SCREW - 3/4" x 2" hex. hd. cap, N.C. thread (S, SO)

4шт.

WASHER - 3/4" std. lock (S, SO)

4шт.

O3857AB

BUSHING - draw bar support (For tractors with PTO) (S, SO)

2шт.

SCREW - 3/4" x 2-1/4" hex. hd. cap, N.C. thread (S)

2шт.

WASHER - 3/4" std. lock (S)

2шт.

O5872AB

X

SNAP RING - O8636AB roller bolt (SO)

1шт.

O6407AB

WASHER - spring, draw bar pivot bolt

1шт.

O7274AB

PANEL - fender to platform, R.H. (SO)

1шт.

SCREW - 5/16" x 1" truss hd. mach., with hex. nut (SO)

2шт.

WASHER - 5/16" std. lock (SO)

2шт.

WASHER - 5/16" plain (SO)

2шт.

O7275AB

PANEL - fender to platform, L.H. (SO)

1шт.

SCREW - 5/16" x 1" truss hd. mach., with hex. nut (SO)

2шт.

WASHER - 5/16" std. lock (SO)

2шт.

WASHER - 5/16" plain (SO)

2шт.

O7276AB

SPACER - fender to platform panel (SO)

4шт.

O7592AB

BOLT - draw bar pivot

1шт.

NUT - 3/4" hex. light, N.F. thread

1шт.

WASHER - 3/4" std. lock

1шт.

O8486AB

BRACKET - tool box (For tractors with PTO only) (SO)

1шт.

SCREW - 3/8" x 1" hex. hd. cap, N.F. thread (SO)

2шт.

NUT - 3/8" hex., light, N.F. thread (SO)

2шт.

WASHER - 3/8" std. lock (SO)

2шт.

O8487AB

PLATE - tool box mounting backing (For tractors with PTO only) (SO)

1шт.

O8636AB

BOLT - draw bar roller (For tractors with PTO only) (See O1895AB1) (SO)

1шт.

NUT - 3/4" hex., light, N.F. thread (SO)

1шт.

WASHER - 3/4" std. lock (SO)

1шт.

O8725AB

PLATE - platform (SO)

1шт.

BOLT - 3/8" x 1-1/2" carr., with hex. nut and lockwasher (SO)

1шт.

SCREW - 5/16" x 3/4" truss hd. mach., with hex. nut and lockwasher (SO)

4шт.

WASHER - 5/16" plain (SO)

4шт.

O9181AB

BUSHING - draw bar guide frame (4329AA) (SC)

2шт.

SCREW - 3/4" x 2-3/4" hex. hd. cap, N.F. thread (SC)

2шт.

WASHER - 3/4" std. lock (SC)

2шт.

O9230AB

BUSHING - guide frame (For "S" with PTO) (S, SC)

2шт.

O9337AB

BRACKET - tool box (S, SC)

1шт.

SCREW - 1/2" x 1-1/2" hex. hd. cap, N.C. thread (S, SC)

2шт.

O9562AB

"U" BOLT - draw bar guide bracket (For "S" with PTO) (S, SC)

1шт.

NUT - 5/8" hex. light, N.F. thread (S, SC)

2шт.

WASHER - 5/8" std. lock (S, SC)

2шт.

O9563AB

X

STRAP - draw bar guide "U" bolt (For "S" with PTO) (S, SC)

1шт.

A2569AA

BAR - draw, complete with roller and bolt (See 3872AA or 401AA) (S, SO)

1шт.

SCREW - 5/8" x 1-3/4" hex. hd. cap, N.F. thread (S, SO)

1шт.

NUT - 5/8" hex. light, N.F. thread (S, SO)

1шт.

WASHER - 5/8" std. lock (S, SO)

1шт.

A2573AA

ANGLE - draw bar guide, with support and gussets (See 3935AA or 4329AA) (S, SO)

1шт.

2884AA

BOX - tool

1шт.

SCREW - 5/16" x 5/8" hex. hd. cap, N.F. thread, with nut and lockwasher (SO)

2шт.

SCREW - 5/16" x 3/4" truss hd. mach., with nut and lockwasher (S, SC)

1шт.

SCREW - 1/2" x 3/4" hex. hd. cap, N.F. thrd., with nut and lockwasher (S, SC)

1шт.

3872AA

BAR - draw, complete (Includes 1-O1894AB1 roller, 1-O5872AB snap ring, 1-O8636B bolt, 1-3/4" N.F. hex. nut with lockwasher and 1-5/8" x 1-3/4" N.F hex. hd. cap screw with hex. nut and lockwasher) (For tractors with PTO) (See A2569AA) (SO)

1шт.

3935AA

SUPPORT - draw bar, and platform (For tractors with PTO) (See A2573AA) (SO)

1шт.

SCREW - 3/4" x 1-3/4" hex. hd. cap, N.C. thread (SO)

2шт.

WASHER - 3/4" std. lock (SO)

2шт.

4203AA

BAR - draw (For "S" with PTO) (Use 4401AA) (SO)

1шт.

4240AA

PLATFORM - R.H. (S, SC)

1шт.

4241AA

PLATFORM - L.H. (S, SC)

1шт.

4329AA

FRAME - draw bar guide, with O9230AB bushings (For "S" with PTO) (S, SC)

1шт.

SCREW - 3/4" x 1-3/4" hex. hd. cap, N.C. thread (S, SC)

4шт.

WASHER - 3/4" std. lock (S, SC)

4шт.

4401AA

BAR - draw, reversible, with guide bracket, "U" bolt and strap. (For "S" with PTO) (S, SC)

1шт.
