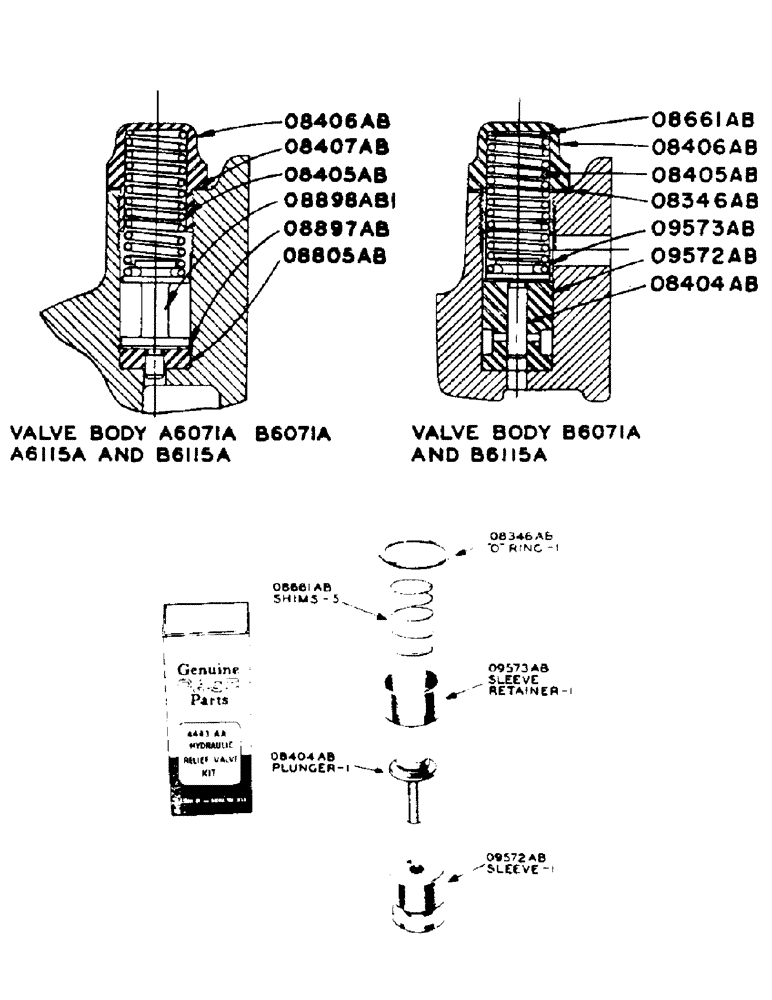

Запчасти Case IH SO-SERIES (121) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

O8346AB

X

"O" RING - relief valve nut. (Used with B6115A and B6071A bodies)

1шт.

O8404AB

PLUNGER

- relief valve (Used with B6115A and B6071A bodies)

1шт.

O8405AB

SPRING

- relief valve

1шт.

O8406AB

NUT - relief valve

1шт.

O8407AB

GASKET - relief valve nut. (See O8346AB)

1шт.

O8661AB

X

SHIM - relief valve

5шт.

O8805AB

SEAT - relief valve (Used with B6115A and B6071A bodies)

1шт.

NOTE: When an item marked with an asterisk is wanted for repairs we furnish 4443AA service parts kit which consists of the following 5 items: 1-O8404AB plunger, 1-O9572AB sleeve, 1-O9573AB sleeve retainer, 5-O8661AB shim and 1-O8346AB "O" ring, which brings relief valve up to date with relief valve as used on late tractors.

1шт.

O8897AB

X

RING - retainer, relief valve seat (Used with B6115A and B6071A bodies)

1шт.

NOTE: When an item marked with an asterisk is wanted for repairs we furnish 4443AA service parts kit which consists of the following 5 items: 1-O8404AB plunger, 1-O9572AB sleeve, 1-O9573AB sleeve retainer, 5-O8661AB shim and 1-O8346AB "O" ring, which brings relief valve up to date with relief valve as used on late tractors.

1шт.

O8898AB1

PLUNGER - relief valve (Used with B6115A and B6071A bodies) (See O8404AB)

1шт.

NOTE: When an item marked with an asterisk is wanted for repairs we furnish 4443AA service parts kit which consists of the following 5 items: 1-O8404AB plunger, 1-O9572AB sleeve, 1-O9573AB sleeve retainer, 5-O8661AB shim and 1-O8346AB "O" ring, which brings relief valve up to date with relief valve as used on late tractors.

1шт.

O9572AB

SLEEVE

- relief valve (Used with B6115A and B6071A bodies)

1шт.

O9573AB

RETAINER

- relief valve sleeve (Used with B6115A and B6071A) bodies)

1шт.

4443AA

KIT

- service parts (See note)

1шт.
