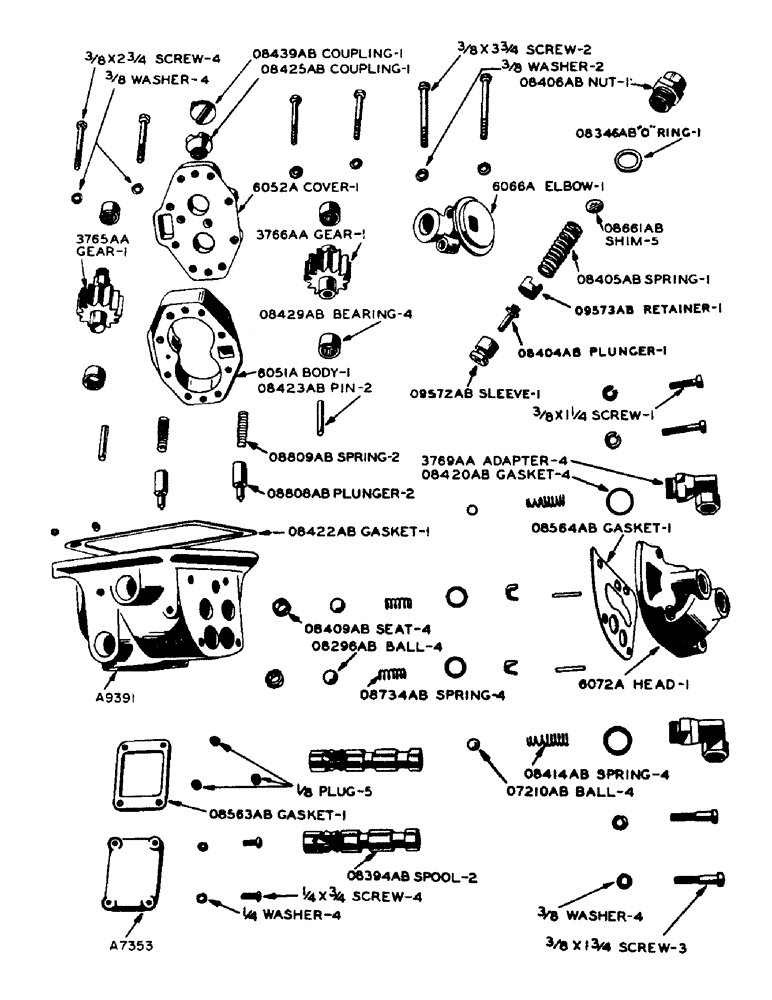

Запчасти Case IH SO-SERIES (117) - DUAL CONTROL UNIT AND PUMP, HYDRAULIC SINGLE AND DUAL CONTROL UNIT AND VALVES, S, SC,SO (08) - HYDRAULICS

A11027

GASKET

"O" RING - spool shifter shaft, lower (Replaces O8416AB)

1шт.

6038A

HEAD - R.H., hydraulic single valve

1шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thread w/lockwasher

1шт.

SCREW - 3/8" x 1-3/4" hex. hd. cap, N.C. thread w/lockwasher

1шт.

SCREW - 3/8" x 2-3/4" hex. hd. cap, N.C. thread w/lockwasher

1шт.

6039A

HEAD - L.H., hydraulic single valve

1шт.

SCREW - 3/8" x 1-3/4" hex. hd. cap, N.C. thread w/lockwasher

2шт.

SCREW - 3/8" x 2-3/4" hex. hd. cap, N.C. thread w/lockwasher

1шт.

6049A

CAP - hydraulic single valve body

1шт.

SCREW - 1/4" x 3/4" rhd. head machine w/lockwasher

4шт.

B6115A

BODY - hydraulic single valve (Use B3995AA)

1шт.

3769AA

X

ADAPTER - swivel angle

2шт.

A3841AA

SINGLE VALVE AND PUMP ASSEMBLY (Use 4200AA)

1шт.

3861AA

LEVER AND SHAFT - spool shifter, with plug

1шт.

B3995AA

BODY - hydraulic single valve. (Consists of: 1-B6115A, 1-O8346AB, 1-O8404AB, 1-O8405AB, 1-O8406AB, 2-O08409AB, 1-O9572AB, 1-O9573AB 1-O8808AB, 1-O8809AB and 3-1/8" Allen head pipe plugs)

1шт.

SCREW - 1/2" x 1-1/2" hex. hd. cap, N.C. thread w/lockwasher

4шт.

4200AA

SINGLE VALVE AND PUMP ASSEMBLY (Replaces A3841AA)

1шт.

O7210AB

X

BALL - hydraulic valve return (1/2" dia.)

2шт.

O8296AB

X

BALL - outlet (5/8" dia.)

2шт.

O8377AB

X

"O" RING - outlet ball check

2шт.

O8394AB

X

SPOOL - hydraulic valve

1шт.

O8402AB

GASKET

- body cap

1шт.

O8409AB

X

SEAT - outlet ball check

2шт.

O8410AB

X

GUIDE - outlet ball check spring

2шт.

O8411AB

X

SPOOL - auxiliary

2шт.

O8412AB

GASKET

- valve head, R.H.

1шт.

O8413AB

GASKET

- valve head, L.H.

1шт.

O8414AB

X

SPRING - return ball check

2шт.

O8416AB

X

"O" RING - spool shifter shaft, lower (Use A11027)

1шт.

O8420AB

X

GASKET - swivel angle adapter

2шт.

O8421AB

SPRING

- relief valve ball

1шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8554AB

X

ARM - spool shifter, large

1шт.

SCREW - 1/4" x 1" fillister head machine, N.F. thread

1шт.

WASHER - 1/4" std. lock

1шт.

O8555AB

X

WASHER - felt, spool shifter shaft, lower

1шт.

O8556AB

X

RETAINER - spool shifter shaft lower felt washer

1шт.

O8557AB

X

WASHER - spool shifter shaft seal, for O8555AB felt

1шт.

O8635AB

X

BALL - relief valve (1/4" dia.)

1шт.

O8734AB

X

SPRING - outlet ball check

2шт.

O8808AB

PLUNGER - spool

1шт.

O8809AB

X

SPRING - spool plunger

1шт.

A7353

CAP

- hydraulic valve body SINGLE AND DUAL CONTROL UNIT

1шт.

1/4" X 3/4" N.C. RHD. MACH. SCREW W/LOCKWASHER HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

3шт.

1/4" X 3/4" N.C. FLAT HD. MACH. SCREW W/LOCKWASHER HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

A9391

BODY - hydraulic dual valve (Used regular on late tractors and as a replacement for 6071A, A6071A and B6071A) (Consists of: 1-6506A body, 4-O8409AB seats, 1-O9572AB sleeve and 5-1/8" hex. socket hd. plugs SINGLE AND CONTROL UNIT

1шт.

SCREW - 1/2" x 1-1/2" hex. hd. cap, N.C. thread HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

A11027

GASKET

"O" RING - spool shifter shaft, lower HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

A20156

PUMP

VALVE - hydraulic dual, with 15 gal. per min. hydraulic pump assembly SINGLE AND CONTROL UNIT

1шт.

6072A

X

HEAD - R.H., hydraulic dual valve SINGLE AND CONTROL UNIT

1шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thread HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

SCREW - 3/8" x 1-3/4" hex. hd. cap, N.C. thread HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

3шт.

WASHER - 3/8" std. lock HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

6073A

HEAD - L.H., hydraulic dual valve SINGLE AND CONTROL UNIT

1шт.

SCREW - 3/8" x 2-3/4" hex. hd. cap, N.C. thread HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

WASHER - 3/8" std. lock HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

6074A

X

CAP - hydraulic dual valve body (Use A7353) SINGLE AND DUAL CONTROL UNIT

1шт.

6506A

WHEEL (STEERING)

BODY (Use A9391) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

3769AA

X

ADAPTER - swivel angle HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

3837AA

X

SHAFT AND LEVER - spool shifter, lower HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

3848AA

LEVER

SHAFT AND LEVER - spool shifter, upper HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

4202AA

VALVE - hydraulic dual (Use A20156) SINGLE AND DUAL CONTROL UNIT

1шт.

4551AA

VALVE - hydraulic dual, with 20 gal. per min. hydraulic pump assembly (See A20156) SINGLE AND CONTROL UNIT

1шт.

O7210AB

X

BALL - hydraulic valve return (1/2" dia.) SINGLE AND DUAL CONTROL UNIT DUAL

4шт.

O8296AB

X

BALL - valve outlet (5/8" dia.) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL

4шт.

O8377AB

X

"O" RING - outlet ball check HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8394AB

X

SPOOL - hydraulic valve SINGLE AND DUAL CONTROL UNIT DUAL

2шт.

O8396AB

X

ARM - spool shifter, small (See O8554AB) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

SCREW - 1/4" x 3/4" fillister hd. mach., N.F. thread HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

WASHER - 1/4" std. lock HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8398AB

X

WASHER - felt, spool shifter shaft, upper (See O8555AB) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8399AB

X

RETAINER - spool shifter shaft upper felt washer (See O8556AB) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8409AB

X

SEAT - outlet ball check HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8410AB

X

GUIDE - outlet ball check spring HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8411AB

X

SPOOL - auxiliary HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8414AB

X

SPRING - return ball check HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8420AB

X

GASKET - swivel angle adapter HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8421AB

SPRING

- relief valve ball HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL

2шт.

O8422AB1

X

GASKET - hydraulic valve body SINGLE AND DUAL CONTROL UNIT DUAL

1шт.

O8554AB

X

ARM - spool shifter, large (See O8396AB) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

SCREW - 1/4" x 1" fillister hd. mach., N.F. thread HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

WASHER - 1/4" std. lock HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8555AB

X

WASHER - felt, spool shifter shaft, lower (See O8398AB) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8556AB

X

RETAINER - spool shifter shaft lower felt washer (See O8399AB) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8557AB

X

WASHER - spool shifter shaft seal, for O8555AB felt HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8563AB

GASKET - body cap HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8564AB

X

GASKET - valve head, R.H. HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL

1шт.

O8565AB

X

GASKET - valve head, L.H. HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL

1шт.

O8568AB

X

WASHER - spool shifter seal, for O8398AB felt HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8569AB

X

"O" RING - spool shifter shaft, upper HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

1шт.

O8635AB

X

BALL - relief valve (1/4" dia.) HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL

2шт.

O8734AB

X

SPRING - outlet ball check HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

4шт.

O8808AB

PLUNGER - spool HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

2шт.

O8809AB

X

SPRING - spool plunger HYDRAULIC SINGLE AND DUAL CONTROL UNIT HYDRAULIC DUAL VALVE

2шт.
