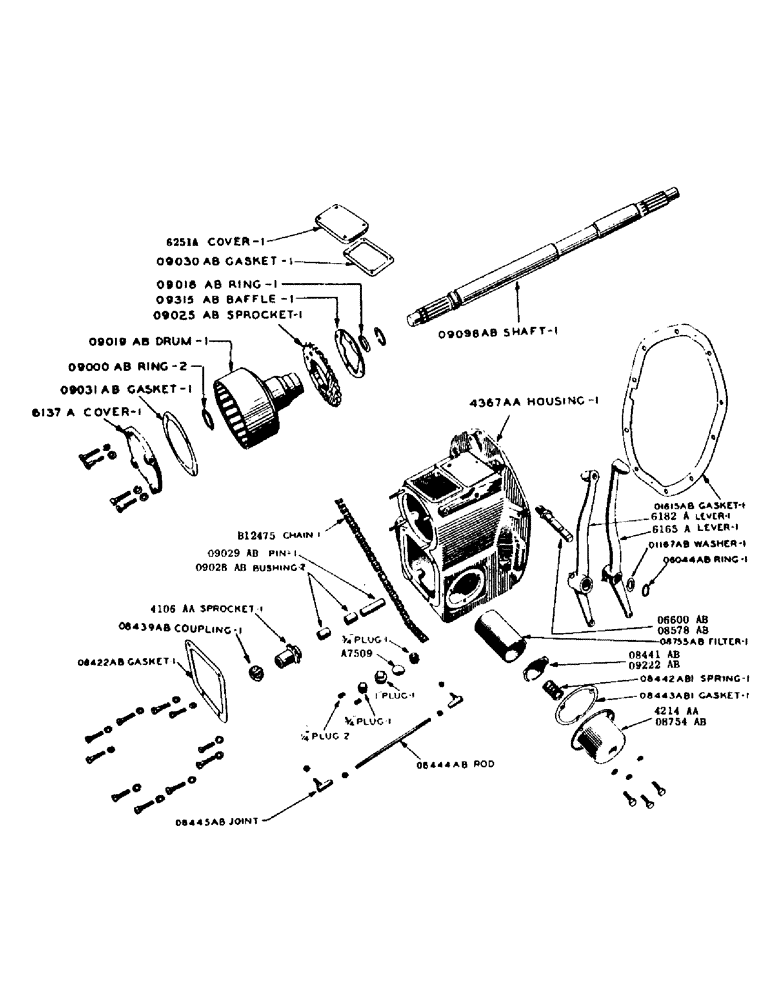

Запчасти Case IH SO-SERIES (112) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE, S, SC, SO (08) - HYDRAULICS

A7509

PLUG

- Welch, hydraulic pump housing (1-3/8" dia.)

1шт.

B12475

CHAIN (AG)

CHAIN - 20 links of no. 50 roller chain

2шт.

B12505

LINK

- connecting, for B12475 roller chain

1шт.

B12506

LINK

- offset, for B12475 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, for B12475 roller chain

1шт.

6135A

HOUSING (Use 4367AA)

1шт.

6136A

COVER - (Use 6251A)

1шт.

6137A

COVER - PTO shaft opening

1шт.

SCREW - 1/2" x 1-3/4" hex. hd. cap, N.C. thread w/lockwasher

4шт.

6148A

COVER - (Use A6148A)

1шт.

A6148A

COVER - hydraulic pump opening (Replaced 6148A) (S, SO)

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (S, SO)

4шт.

6165A

LEVER - hand, single valve control (S, SC)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (S, SC)

1шт.

6211A

LEVER - hand, single valve contorl (SO)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (SO)

1шт.

6251A

COVER - main housing top (Replaces 6136A)

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

4106AA

X

SPROCKET - with bushing, hydraulic pump, driven

1шт.

4214AA

COVER - hydraulic pump filter, with tube and elbow (See O8754AB) (SC)

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.C. thread (SC)

3шт.

WASHER - 3/8" Shakeproof lock, #1220 internal tooth (SC)

3шт.

4367AA

HOUSING - PTO and hydraulic pump, with pin and plugs. (Includes housing with 1-O9029AB pin, 2-1/4", 1-1/2" and 1 - 1" sq. hd. pipe plugs, 1-3/4" magnetic plug and 2-VT3399 Welch plugs - 1" dia.)

1шт.

ELBOW - 1/2" - 45 degree street

1шт.

PLUG - 3/4" sq. hd. pipe

1шт.

SCREW - 1/2" x 1-1/4" hex. hd. cap, N.C. thread w/lockwasher

4шт.

SCREW - 1/2" x 1-3/4" hex. hd. cap, N.C. thread w/lockwasher

6шт.

FITTING - 1/8" - 45 degree no. 5200

1шт.

O1167AB

X

WASHER - control hand lever

1шт.

O1615AB

X

GASKET - hydraulic main housing

1шт.

O6044AB

X

SNAP RING - hand lever stud

1шт.

O6600AB

STUD - single valve control hand lever (See O8578AB)

1шт.

WASHER - 3/4" std. lock

1шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8439AB1

X

COUPLING - pump drive

1шт.

O8441AB

X

RETAINER - hydraulic pump filter (See O9222AB) (S, SO)

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8444AB

ROD - hydraulic valve control

1шт.

NUT - 5/16" hex. jam, N.F. thread

2шт.

O8445AB

X

JOINT - ball, hydraulic valve control rod

2шт.

WASHER - 5/16" std. lock

2шт.

O8754AB

COVER - hydraulic pump filter (See 4214AA) (S, SO)

1шт.

SCREW - 3/8" x 3/4" hex.hd. cap, N.C. thread (S, SO)

3шт.

WASHER - 3/8" Shakeproof lock, #1220 internal tooth (S, SO)

3шт.

O8755AB

X

FILTER - oil, hydraulic pump (3" O.D. x 4-1/4" long)

1шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.F. thread w/lockwasher

4шт.

O9028AB

X

BUSHING - hydraulic pump driven sprocket (4106AA)

2шт.

O9029AB

X

PIN - hydraulic pump driven sprocket bearing

1шт.

O9030AB

X

GASKET - main housing top cover

1шт.

O9031AB

X

GASKET - PTO shaft opening cover

1шт.

O9098AB

SHAFT - PTO and hydraulic drive

1шт.

O9222AB

X

RETAINER - hydraulic pump filter (See O8441AB) (SC)

1шт.

O9223AB

HOSE - valve to filter cover (3/8" I.D. x 13" long) (SC)

1шт.

VT3399

PLUG - Welch, hydraulic pump housing (1" dia.)

2шт.

A7509

PLUG

- Welch, hydraulic pump housing (1-3/8" dia.)

1шт.

B12475

CHAIN (AG)

CHAIN - 20 links of no. 50 roller chain

2шт.

B12505

LINK

- connecting, for B12475 roller chain

1шт.

B12506

LINK

- offset, for B12475 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, for B12475 roller chain

1шт.

6135A

HOUSING (Use 4367AA)

1шт.

6136A

COVER (Use 6251A)

1шт.

6137A

COVER - PTO shaft opening

1шт.

SCREW - 1/2" x 1-3/4" hex. hd. cap, N.C. thread w/lockwasher

4шт.

6148A

COVER (Use A6148A)

1шт.

A6148A

COVER - hydraulic pump opening (Replaces 6148A) (S, SO)

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (S, SO)

4шт.

615A

EXCITER

LEVER - hand, dual valve control, outer (S, SC)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (S, SC)

1шт.

6182A

LEVER - hand, dual valve control, inner (S, SC)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (S, SC)

1шт.

6211A

LEVER - hand, dual valve control, outer (SO)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (SO)

1шт.

6212A

LEVER - hand, dual valve control, inner (SO)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (SO)

1шт.

6251A

COVER - main housing top (Replaces 6136A)

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

4106AA

X

SPROCKET - driven, with 2 - O9028AB bushings, for 15 gal. per min. hydraulic pump (See 4507AA)

1шт.

4214AA

COVER - hydraulic pump filter, with tube and elbow (For tractors with Eagle hitch) (See O8754AB) (S, SC)

1шт.

3/8" X 3/4" N.C. HEX. HD. CAP SCREW (S, SC)

3шт.

3/8" SHAKEPROOF LOCKWASHER, #1220 internal tooth (S, SC)

3шт.

4367AA

HOUSING - PTO and hydraulic pump, with pin and plugs (Includes housing with 1-O9029AB pin, 2-1/4", 1-1/2" and 1-1" sq. hd. pipe plugs, 1-3/4" magnetic plug and 2-VT3399 Welch plugs - 1" dia.)

1шт.

ELBOW - 1/2" - 45 degree street

1шт.

PLUG - 3/4" sq. hd. pipe

1шт.

SCREW - 1/2" x 1-1/4" hex. hd. cap, N.C. thread w/lockwasher

4шт.

SCREW - 1/2" x 1-3/4" hex. hd. cap, N.C. thread w/lockwasher

6шт.

FITTING - 1/8" 45 degree Lincoln no. 5200

1шт.

4507AA

SPROCKET - driven, with 2 - O9028AB bushings, for 20 gal. per min. hydraulic pump (See 4106AA)

1шт.

O1167AB

X

WASHER - for O8578AB stud (See O9639AB)

1шт.

O1615AB

X

GASKET - hydraulic main housing

1шт.

O6044AB

X

SNAP RING - for O8578AB stud (See O9639AB)

1шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8439AB1

X

COUPLING - pump drive

1шт.

O8441AB

X

RETAINER - hydraulic pump filter (See O9222AB) (S, SO)

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8444AB

ROD - hydraulic valve control

2шт.

NUT - 5/16" hex. jam, N.F. thread

4шт.

O8445AB

X

JOINT - ball, hydraulic valve control rod

4шт.

WASHER - 5/16" std. lock

4шт.

O8578AB

STUD (Use 1 - O8578AB1 and 1 - O9639AB "E" ring)

1шт.

O8578AB1

STUD - dual valve control hand lever

1шт.

O8754AB1

COVER - hydraulic pump filter (See 4214AA) (S, SO)

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.C. thread (S, SO)

3шт.

WASHER - 3/8" Shakeproof lock, #1220 internal tooth (S, SO)

3шт.

O8755AB

X

FILTER - oil, hydraulic pump (3" O.D. x 4-1/4" long)

1шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.F. thread

4шт.

WASHER - 3/8" std. lock

4шт.

O9028AB

X

BUSHING - hydraulic pump driven sprocket (4106AA)

2шт.

O9029AB

X

PIN - hydraulic pump driven sprocket bearing

1шт.

O9030AB

X

GASKET - main housing top cover

1шт.

O9031AB

X

GASKET - PTO shaft opening cover

1шт.

O9098AB

SHAFT - PTO and hydraulic drive

1шт.

O9222AB

X

RETAINER - hydraulic pump filter (See O8441AB) (SC)

1шт.

O9223AB

HOSE - valve to filter cover (3/8" I.D. x 13" long) (SC)

1шт.

O9639AB

X

"E" RING - retaining, for O8578AB1 stud

1шт.

VT3399

PLUG - Welch, hydraulic pump housing (1" dia.)

2шт.
