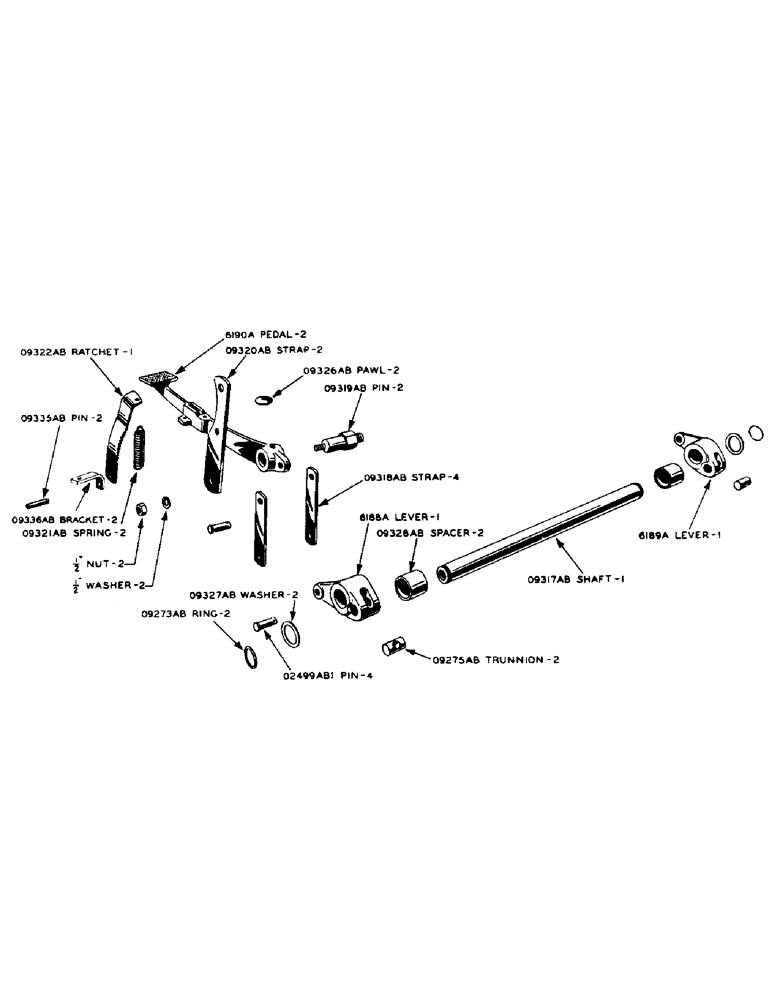

Запчасти Case IH SO-SERIES (061) - BRAKE PEDALS AND CROSS SHAFT, FOR SO TRACTORS (07) - BRAKES

6177A

LEVER - cross shaft (S, SC)

1шт.

SCREW - 1/2" x 2" hex. hd. cap, N.C. thread (S, SC)

1шт.

WASHER - 1/2" std. lock (S, SC)

1шт.

6178A

PEDAL - brake, R.H. (Prior to tractor no. 8027115) (See 6246A) (S, SC)

1шт.

6179A

PEDAL - brake, L.H. (Prior to tractor no. 8027115) (See 6247A) (S, SC)

1шт.

6188A

LEVER - cross shaft, R.H. (SO)

1шт.

6189A

LEVER - cross shaft, L.H. (SO)

1шт.

6190A

PEDAL - brake (SO)

2шт.

FITTING - 1/8" str. Lincoln no. 5000 (SO)

2шт.

6246A

PEDAL - brake, R.H. (Tractor no. 8027115 and after) (See 6178A) (S, SC)

1шт.

6247A

PEDAL - brake, L.H. (Tractor no. 8027115 and after) (See 6179A) (S, SC)

1шт.

1/2" X 2-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (S, SC)

1шт.

4234AA

RATCHET - brake pedal (S, SC)

1шт.

O2499AB1

X

PIN - tension strap (SO)

4шт.

PIN - 1/8" x 1" cotter (SO)

4шт.

O6182AB

CLIP - for O9280AB handle (S, SC)

1шт.

BOLT - 1/4" x 5/8" carr., with hex. nut (S, SC)

1шт.

WASHER - 1/4" std. lock (S, SC)

1шт.

O6698AB

PIN - lock, brake pedal (S, SC)

1шт.

PIN - 3/8" x 2" type 1 tapered groove (S, SC)

1шт.

O7183AB

X

PAWL - brake pedal (S, SC)

1шт.

SCREW - 3/8" x 7/8" hex. hd. cap, N.C. thread (S, SC)

1шт.

WASHER - 3/8" std. lock (S, SC)

1шт.

O8651AB

X

KEY - "C" Woodruff, brake cross shaft (S, SC)

2шт.

O9272AB

SHAFT - cross (S, SC)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (S, SC)

2шт.

O9273AB

SNAP RING - cross shaft (S, SC)

1шт.

O9273AB

SNAP RING - cross shaft (SO)

2шт.

O9275AB

X

TRUNNION - brake rod

2шт.

O9276AB

X

SPRING - pedal return (S, SC)

2шт.

O9279AB

STUD - pedal ratchet (S, SC)

1шт.

O9280AB

HANDLE - brake pedal ratchet (S, SC)

1шт.

O9317AB

SHAFT - cross (SO)

1шт.

FITTING - 1/8" str. Lincoln no. 5000 (SO)

2шт.

O9318AB

STRAP - tension (SO)

4шт.

O9319AB

PIN - fulcrum, brake pedal (SO)

2шт.

NUT - 1/2" hex., light, N.F. thread (SO)

2шт.

WASHER - 1/2" std. lock (SO)

2шт.

O9320AB

STRAP - pedal pin support (SO)

2шт.

SCREW - 5/8" x 1-1/4" hex. hd. cap, N.C. thread (SO)

4шт.

WASHER - 5/8" std. lock (SO)

4шт.

O9321AB

X

SPRING - pedal return (SO)

2шт.

O9322AB

RATCHET - pedal, R.H. (SO)

1шт.

O9323AB

RATCHET - pedal, L.H. (SO)

1шт.

O9326AB

X

PAWL - brake pedal (SO)

2шт.

SCREW - 3/8" x 7/8" rd. hd. machine (SO)

2шт.

WASHER - 3/8" std. lock (SO)

2шт.

O9327AB

WASHER - cross shaft (S, SC)

1шт.

O9327AB

WASHER - cross shaft (SO)

2шт.

O9328AB

SPACER - cross shaft (S, SC)

1шт.

O9328AB

SPACER - cross shaft (SO)

2шт.

O9335AB

PIN - brake ratchet (SO)

2шт.

PIN - 3/32" x 5/8" cotter (SO)

4шт.

O9336AB

BRACKET - brake ratchet (SO)

2шт.

SCREW - 3/8" x 3-3/4" hex. hd. cap, N.F. thread (SO)

2шт.

NUT - 3/8" hex., light, N.F. thread (SO)

2шт.

WASHER - 3/8" std. lock (SO)

2шт.
