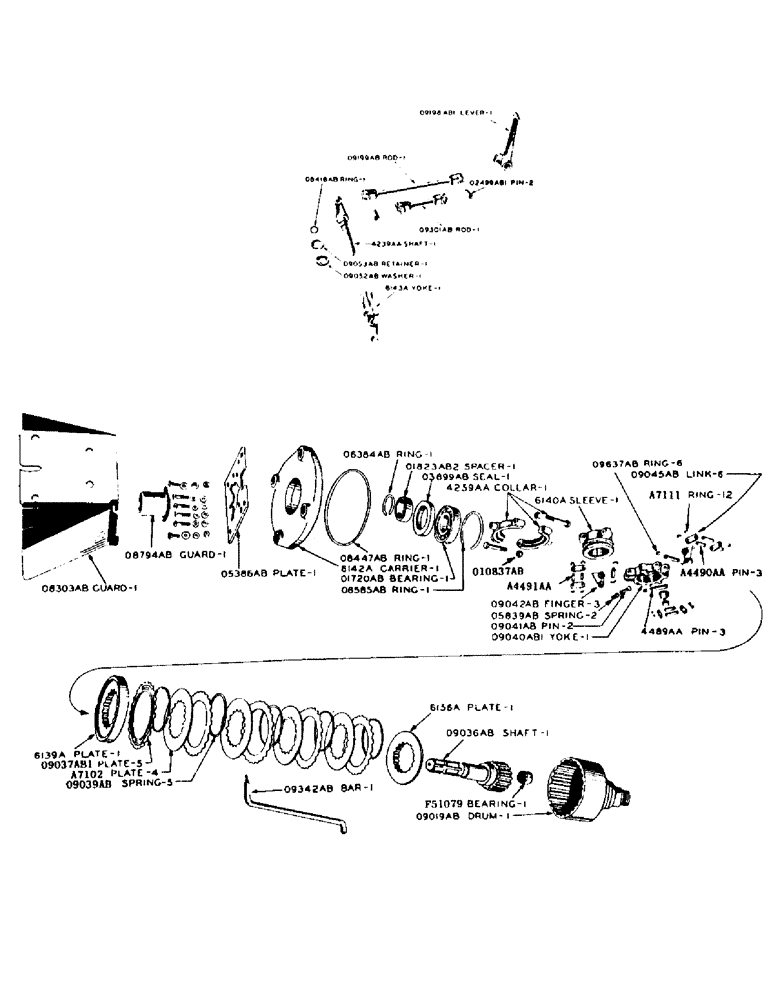

Запчасти Case IH SO-SERIES (110) - PTO CLUTCH AND STUB SHAFT, S, SC, SO (06) - POWER TRAIN

A7102

CLUTCH DRIVING PLATE

PLATE - PTO clutch driven (Steel ground finish surface) (Tractor no. 8040383 and after) (See O9038AB)

4шт.

A7111

SNAP RING,#25, Ext

Ring, Snap, , clutch lever link pin (Only used as required) #25, Ext

12шт.

A8823

PIN,6.29mm OD x 26.99mm L

- PTO clutch lever link, upper

3шт.

A8824

PIN

- PTO clutch lever link, lower

3шт.

A11027

GASKET

"O" RING - PTO clutch throwout shaft

1шт.

A1127

CATALOG

PLATE - PTO clutch drive (Bronze circular corrugations)

5шт.

A20483

GUARD

- tubular, PTO shaft

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.F. thread w/hex. nut

2шт.

WASHER - 3/8" Shakeproof lock, no. 4020-26

2шт.

F51079

NEEDLE BEARING

BEARING - PTO pilot (Torrington no. JH16160H)

1шт.

6139A

X

PLATE - PTO clutch pressure

1шт.

6140A

X

SLEEVE - PTO clutch sliding

1шт.

6141A

X

COLLAR - PTO clutch throwout (Use 4259AA)

1шт.

6142A

CARRIER - PTO rear bearing

1шт.

6143A

X

YOKE - PTO clutch throwout

1шт.

SCREW - 5/16" x 1-1/4" hex. hd. cap, N.C. thread w/lockwasher

2шт.

6156A

PLATE - PTO clutch backing

1шт.

4239AA

SHAFT AND ARM - clutch throwout

1шт.

KEY - #9 Woodruff

2шт.

4259AA

X

COLLAR - PTO clutch throwout. (Consists of 2-6141A collars with 2-5/16" x 2" N.F. hex. hd. cap screws with elastic stop nuts)

1шт.

4489AA

X

PIN - PTO clutch finger. (Includes pin with 2-O9637AB rings)

3шт.

O1167AB

X

WASHER - clutch hand lever mounting pin (Used with 4209AA and 4245AA seat channel brackets) (See O9639AB)

1шт.

O1720AB

BEARING

- PTO shaft, rear (New Departure no. 1207)

1шт.

O1823AB2

X

SPACER - PTO shaft

1шт.

O2499AB1

X

PIN - PTO clutch hand control rod end

2шт.

PIN - 1/8" x 1" cotter

2шт.

O3899AB

X

OIL SEAL - stub shaft

1шт.

O5386AB

PLATE - mounting, PTO guard

1шт.

BOLT - 3/8" x 1" carr., with hex. nut and Shakeproof lockwasher #4020-26

2шт.

SCREW - 1/2" x 1-3/4" hex., hd. cap, N.C. thread w/lockwasher

4шт.

O5839AB

X

SPRING - PTO clutch adjusting lock pin

2шт.

O6044AB

X

SNAP RING - clutch hand lever mounting pin (Used with 4209AA and 4245AA seat channel brackets) (See O9639AB)

1шт.

O6384AB

SNAP RING - stub shaft

1шт.

O8303AB

X

GUARD - power take-off

1шт.

BOLT - 3/8" x 1" carr., with hex. nut and Shakeproof lockwasher #4020-26

2шт.

O8447AB

X

"O" RING - PTO rear bearing carrier

1шт.

O8585AB

X

SNAP RING - stub shaft rear bearing carrier

1шт.

O9019AB

DRUM - PTO clutch

1шт.

O9036AB

X

SHAFT - PTO stub

1шт.

O9038AB

X

PLATE - PTO clutch driven (Steel unfinished sureface) (Prior to Tractor no. 8040383) (See A7102 also see note)

4шт.

O9039AB

SPRING

- PTO clutch drive plate seperator

5шт.

O9040AB1

X

YOKE - PTO clutch adjusting

1шт.

O9041AB

X

PIN - PTO clutch adjusting lock

2шт.

O9042AB

X

FINGER - PTO clutch

3шт.

O9043AB

X

PIN (Use 4489AA)

1шт.

O9044AB

RING, SNAP

RING - retaining, PTO clutch finger pin (Used with O9043AB pin) (See O9637AB)

6шт.

O9045AB

LINK - PTO clutch lever

6шт.

O9046AB

X

PIN (Use A8823)

1шт.

O9047AB

X

PIN (Use A8824)

1шт.

O9048AB

RING - retaining, PTO clutch lever link pin (Used with O9046AB and O9047AB pins) (See O9636AB)

12шт.

O9052AB

X

WASHER - felt, PTO clutch throwout shaft

1шт.

O9053AB

X

RETAINER - PTO clutch throwout shaft felt washer

1шт.

O9198AB1

LEVER - hand, PTO clutch

1шт.

FITTING - 1/8" - 90 degree Lincoln no. 5400

1шт.

O9199AB

ROD - PTO clutch hand control (S, SC)

1шт.

O9301AB

ROD - PTO clutch throwout (SO)

1шт.

O9342AB

BAR - clutch adjusting

1шт.

O9636AB

X

RING - retaining, PTO clutch lever link pin (Use A7111)

12шт.

O9637AB

X

RING - retaining, PTO clutch finger pin. (See O9044AB)

6шт.

O9639AB

X

"E" RING - retaining, for clutch hand lever mounting pin on 4433AA and A4245AA seat channel brackets. (See O1167AB and O6044AB)

1шт.
