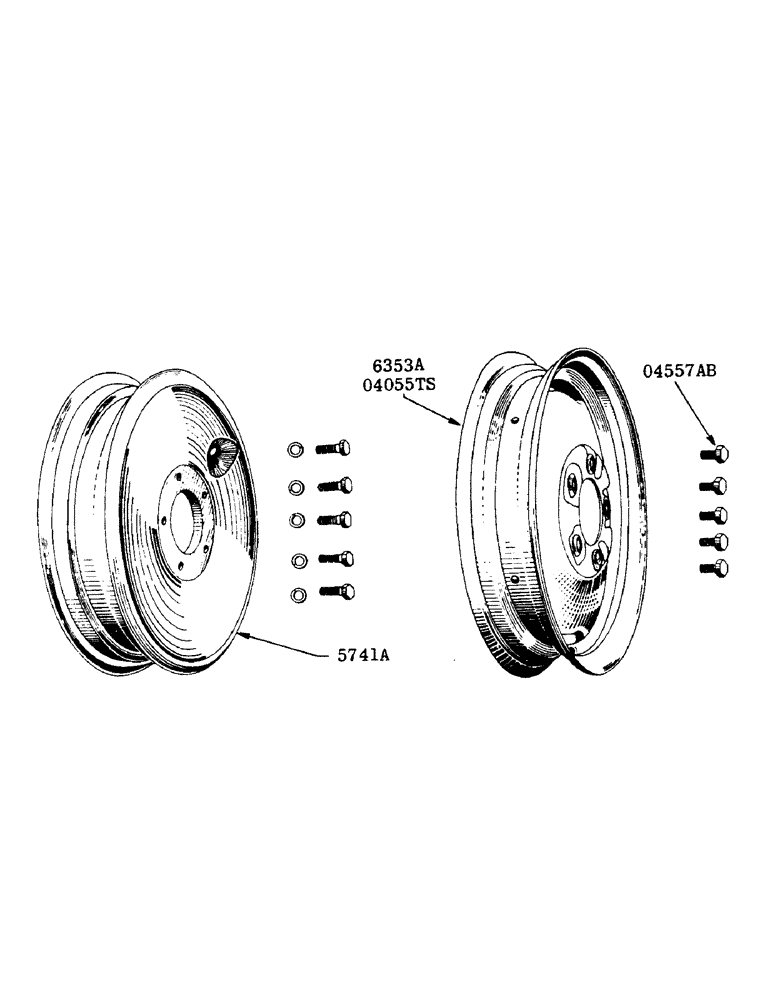

Запчасти Case IH SO-SERIES (092) - FRONT WHEELS FOR PNEUMATIC FARM TIRES, FOR S AND SO TRACTORS (06) - POWER TRAIN

5643A

HUB - front wheel (Use 3806AA)

1шт.

5741A

WHEEL - front, less hub. for 5.00 x 15 tire (See 6353A and O4055TS) (S)

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LOCKWASHER (S)

10шт.

6253A

HUB - front wheel (Use 447AA)

1шт.

6353A

WHEEL - front less hub, for 5.50 x 16 tires for "S" - "SO" tractors and 6.00 x 16 tires for "SO" tractors with Eagle hitch attachment (See 5741A and O4055TS)

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LOCKWASHER

10шт.

3801AA

X

RETAINER - felt, for 3806AA hub

2шт.

3806AA

HUB - front wheel, with cups (Consists of: 1-5643A, 1-O1461AB and 1-O8509AB) (For 5741A and O4055TS wheels) (See 4447AA)

2шт.

4447AA

HUB - front wheel, with cups (Consists of 1-6253A, 1-O1461AB and 1-O8509AB) (For 6353A wheel) (See 3806AA)

2шт.

O882AB

WASHER - front wheel spindle

2шт.

O1456AB

CONE

- front wheel inner bearing (Timken no. 2788)

2шт.

O1461AB

X

CUP - front wheel outer bearing (Timken no. 14274)

2шт.

O1462AB

X

CONE - front wheel outer bearing (Timken no. 14125)

2шт.

O4554AB

CAP - front wheel hub

2шт.

O4557AB

BOLT - for O4055TS front wheel

10шт.

O5824AB

FELT

WASHER - felt, front wheel hub

4шт.

O8509AB

X

CUP - front wheel inner bearing (Timken no. 2726)

2шт.

O8513AB

X

SEAL - felt retainer, for 3806AA hub

2шт.

O4055TS

WHEEL - front, less hub, for 5.50" x 16-4 ply tire (See 5741A and 6353A)

2шт.
