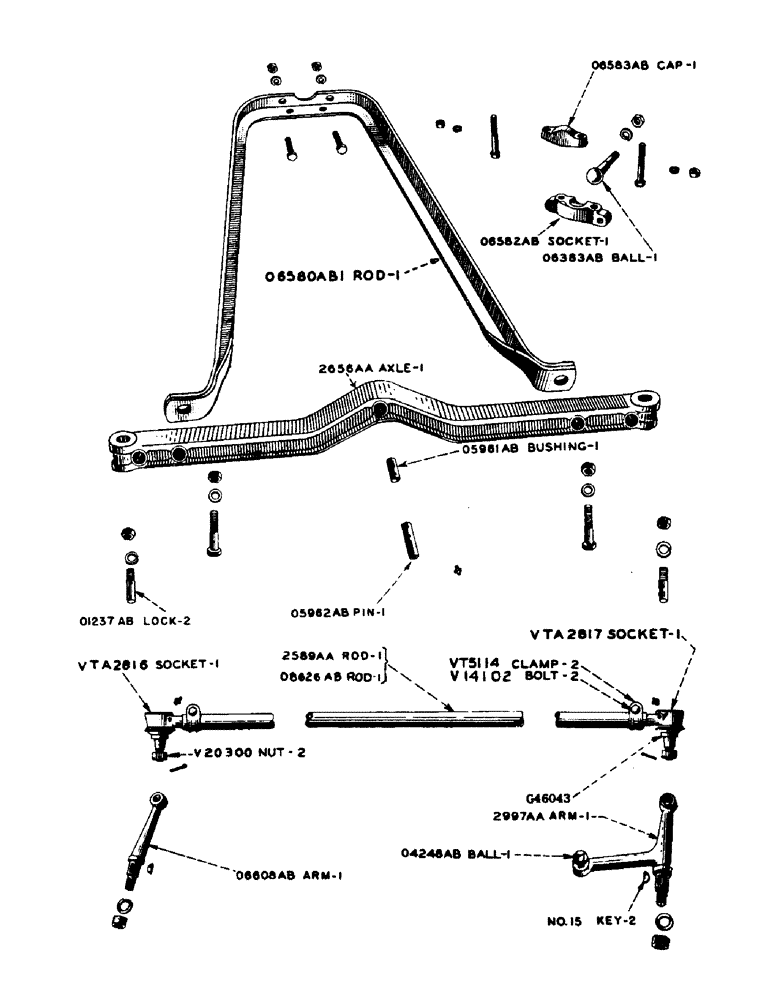

Запчасти Case IH SO-SERIES (088) - FRONT AXLE, FOR S AND SO TRACTORS, PARTS FOR 2589AA FRONT AXLE TIE ROD (06) - POWER TRAIN

2589AA

ROD - front axle tie

1шт.

PIN - 3/32" x 1" cotter

2шт.

FITTING - 1/8" str. Lincoln no. 5000

2шт.

2656AA

AXLE - front, with pivot pin bushing

1шт.

2997AA

ARM - steering spindle, with ball, L.H.

1шт.

KEY - no. 15 Woodruff

1шт.

NUT - 7/8" hex., light, N.F. thread

1шт.

WASHER - 7/8" std. lock

1шт.

O1237AB

X

LOCK - front axle king pin

2шт.

NUT - 1/2" hex., light, N.F. thread

2шт.

WASHER - 1/2" std. lock

2шт.

O4248AB

BALL - steering spindle arm, L.H.

1шт.

O5961AB

BUSHING - front axle pivot pin

1шт.

O5962AB

PIN - front axle pivot

1шт.

FITTING - 1/8" str. Lincoln no. 5000

1шт.

O6383AB

BALL - radius rod pivot

1шт.

NUT - 5/8" hex., light, N.F. thread

1шт.

WASHER - 5/8" std. lock

1шт.

O6580AB1

ROD - radius

1шт.

SCREW - 3/4" x 3-1/2" hex. hd. cap, N.F. thread

2шт.

NUT - 3/4" hex., light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

O6582AB

SOCKET - radius rod ball

1шт.

SCREW - 1/2" x 2" hex. hd. cap, N.F. thread

2шт.

NUT - 1/2" hex., light, N.F. thread

2шт.

WAASHER - 1/2" std. lock

2шт.

O6583AB

CAP - radius rod ball socket

1шт.

SCREW - 1/2" x 3-1/4" hex. hd. cap, N.F. thread

2шт.

NUT - 1/2" hex., light, N.F. thread

2шт.

WASHER - 1/2" std. lock

2шт.

O6608AB

ARM - steering spindle, R.H.

1шт.

KEY - no. 15 Woodruff

1шт.

NUT - 7/8" hex., light, N.F. thread

1шт.

WASHER - 7/8" std. lock

1шт.

G46043

COVER

- dust PARTS FOR 2589AA FRONT AXLE TIE ROD

2шт.

V14102

SEAL KIT

BOLT - VT5114 clamp PARTS FOR 2589AA FRONT AXLE TIE ROD

2шт.

NUT - 5/16" hex., N.F. thread PARTS FOR 2589AA FRONT AXLE TIE ROD

2шт.

WASHER - 5/16" std. lock PARTS FOR 2589AA FRONT AXLE TIE ROD

2шт.

V20300

OPERATOR MANUAL

NUT - slotted hex., for VTA2816 or VTA2817 socket ends PARTS FOR 2589AA FRONT AXLE TIE ROD

2шт.

PIN - 1/8" x 1-1/4" cotter PARTS FOR 2589AA FRONT AXLE TIE ROD

2шт.

VT5114

CLAMP

- tie rod PARTS FOR 2589AA FRONT AXLE

2шт.

VTA2816

END - socket, with dust cover washers and nuts, R.H. thread PARTS FOR 2589AA FRONT AXLE TIE ROD

1шт.

VTA2817

END - socket, with dust cover washers and nuts, L.H. thread PARTS FOR 2589AA FRONT AXLE TIE ROD

1шт.

O8597AB

X

COVER - dust (Use G46043) PARTS FOR 2589AA FRONT AXLE TIE ROD

1шт.

O8598AB

X

WASHER - dust cover (Use G46043) PARTS FOR 2589AA FRONT AXLE TIE ROD

1шт.

O8599AB

X

SEAL - rubber, dust cover (Use G46043) PARTS FOR 2589AA FRONT AXLE TIE ROD

1шт.

O8626AB

ROD - tie, less ends PARTS FOR 2589AA FRONT AXLE TIE ROD

1шт.
