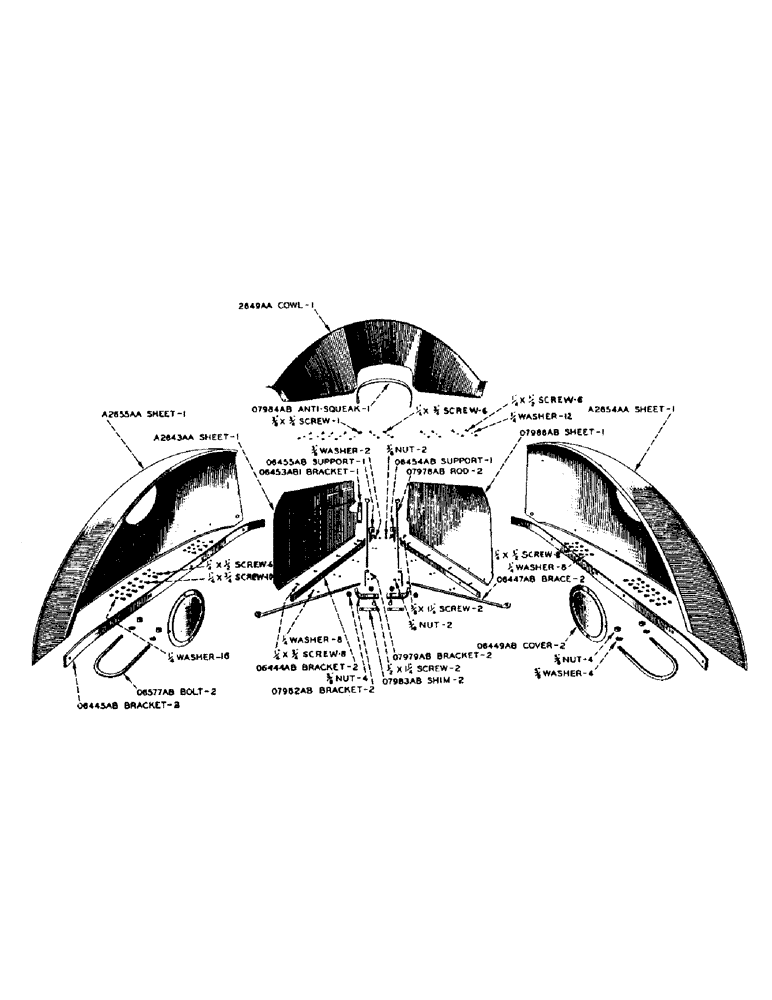

Запчасти Case IH SO-SERIES (076) - ORCHARD SIDE FENDERS AND COWL, FOR SO TRACTOR (06) - POWER TRAIN

O6639A

SPRING - battery service door catch

1шт.

O6444AB

BRACKET - fender extension front

2шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.F thread

2шт.

NUT - 3/8" hex. light, N.F. thread

2шт.

WASHER - 3/8" std. lock

2шт.

O6445AB

BRACKET - fender extension rear

2шт.

O6447AB

BRACE - fender extension

2шт.

NUT - 5/8" hex., light, N.F. thread

4шт.

O6449AB

COVER - fender extension hand hole

2шт.

SCREW - 1/4" x 1/2" truss head machine, N.C. thread, with hex. nut

8шт.

WASHER - 1/4" std. lock

8шт.

O6451AB

CATCH - battery service door

1шт.

O6452AB

PIN - battery service door catch

1шт.

PIN - 3/32" x 5/8" cotter

1шт.

WASHER - 1/4" plain

1шт.

O6453AB1

BRACKET - air cleaner to fender extension sheet

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.F. thread

1шт.

O6454AB

SUPPORT - fender extension front, R.H.

1шт.

SCREW - 1/2" x 2-1/4" hex. hd. cap, N.F. thread

1шт.

O6455AB

SUPPORT - fender extesnion front, L.H.

1шт.

SCREW - 1/2" x 2-1/4" hex. hd. cap, N.F. thread

1шт.

O7978AB

ROD - cowl tension

2шт.

NUT - 5/16" hex., light, N.F. thread

2шт.

O7979AB

BRACKET - cowl tension rod

2шт.

O7982AB

BRACKET - fender extension brace

2шт.

SCREW - 1/2" x 1-1/4" hex. hd. cap, N.C. thread

2шт.

WASHER - 1/2" std. lock

2шт.

O7983AB

SHIM - fender

2шт.

O7984AB

ANTI-SQUEAK - cowl

1шт.

O7986AB

SHEET - front extension, R.H. fender

1шт.

SCREW - 1/4" x 3/4" truss hd. mach., with hex. nut and lockwasher

4шт.

A2643AA

SHEET - front extension, L.H. fender, with battery service door

1шт.

SCREW - 1/4" x 1/2" truss hd. mach., with hex. nut and lockwasher

1шт.

SCREW - 1/4" x 3/4" truss hd. mach., with hex. nut and lockwasher

4шт.

2649AA

COWL - with reinforcement rod

1шт.

SCREW - 1/4" x 1/2" truss hd. mach., with hex. nut and lockwasher

6шт.

SCREW - 1/4" x 3/4" truss hd. mach., with hex. nut and lockwasher

6шт.

A2654AA

SHEET - outer extension, R.H. fender

1шт.

BOLT - 1/2" x 2" carriage, with hex. nut and lockwasher

1шт.

SCREW - 1/4" x 1/2" truss hd. mach., with hex. nut and lockwasher

2шт.

SCREW - 1/4" x 3/4" truss hd. mach., with hex. nut and lockwasher

5шт.

A2655AA

SHEET - outer extension, L.H. fender

1шт.

BOLT - 1/2" x 2" carriage, with hex. nut and lockwasher

1шт.

SCREW - 1/4" x 1/2" truss hd. mach., with hex. nut and lockwasher

2шт.

SCREW - 1/4" x 3/4" truss hd. mach., with hex. nut and lockwasher

5шт.
