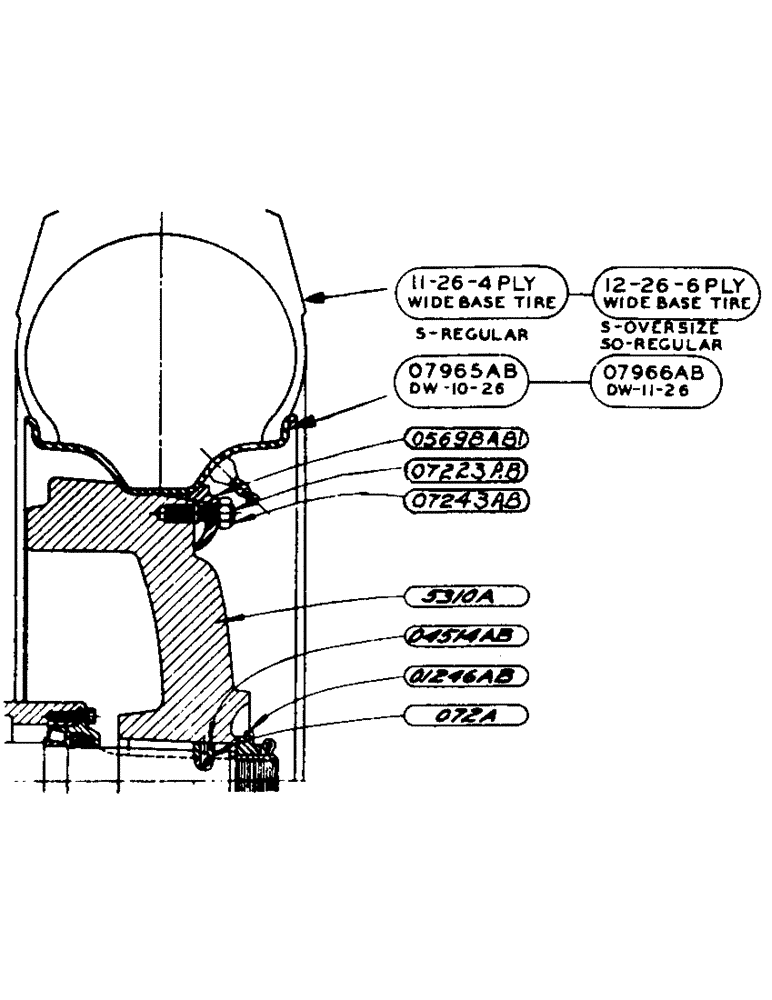

Запчасти Case IH SO-SERIES (067) - REAR WHEELS FOR PNEUMATIC FARM TIRES, S, SC, SO (06) - POWER TRAIN

A20330

KIT

BOLT - for (6424A) 5005AA rear wheel hub. Includes 7/8" N.F. hex. nut and lockwasher (SC)

8шт.

A20331

KIT

BOLT - for (5698A) 2669AA rear wheel hub. Includes 3/4" N.F. hex. nut and lockwashers (SC)

8шт.

5250A

LUG - locating for rear wheel (SC)

12шт.

5/8" X 3" N.C. SQ. HD. MACHINE BOLT, less nut (SC)

12шт.

5310A

WHEEL - rear (S, SO)

2шт.

5698A

WHEEL - rear (Use 2669AA)

1шт.

5699A

CAP FOR 2669AA (5698A) REAR WHEEL (SC)

2шт.

6424A

WHEEL - rear (Use 5005AA)

1шт.

6425A

CAP - hub for 5005AA (6424A) rear wheel (SC)

2шт.

6487A

X

CLAMP - rear wheel drive for 5005AA wheels (SC)

8шт.

5/8" X 3" N.C. FINISHED HEX. BOLTS (SC)

8шт.

2669AA

WHEEL - rear. Consists of: 1-5698A wheel, 1-5699A cap, 4-A20331 bolts with nuts and lockwashers (SC)

2шт.

BOLT - 5/8" x 3" sq. hd. machine, less nut (SC)

24шт.

4936AA

LUG - clamp bolt locking for 5005AA wheel (SC)

12шт.

5005AA

WHEEL - rear. Consist of 1-6424A wheel, 1-6425A cap, 4-A20330 bolts with nuts and lockwashers (SC)

2шт.

O4514AB

KEY - 5310A rear wheel hub (S, SO)

2шт.

O5698AB1

X

CLAMP - rear wheel rim

12шт.

BOLT - 5/8" x 3" sq. hd. machine, less nut (SC)

12шт.

O6477AB

BOLT - hub cap, for 5698A rear wheel (Use A20331)

1шт.

O6904AB

KEY - 5698A rear wheel hub (SC)

2шт.

O7223AB

X

STUD - rear wheel rim for O5698AB1 clamp (S, SO)

12шт.

07243AB

NUT - rear wheel rim for O7223AB stud also bolts for 5250A and O5698AB1 and O10854AB clamps (S, SO)

12шт.

O7243AB

X

NUT - rear wheel rim for O7223AB stud also bolts for 5250A and O5698AB1 and O10854AB clamps (SC)

24шт.

O7959AB

RIM - DW9-38 Goodyear wide base deep well, with drivers, for 10-38 tires (SC)

2шт.

O7960AB

RIM - DW10-38 Goodyear wide base deep well, with drivers, for 11-38 tires (SC)

2шт.

O7965AB

RIM - DW10-26 Goodyear wide base deep well, with drivers, for 11-26 tires (S, SO)

2шт.

O7966AB

RIM - DW11-26 Goodyear wide base deep well, with drivers, for 12-26 tires (S, SO)

2шт.

O9565AB

BOLT - rear wheel hub, for 6424A rear wheel (Use A20330)

1шт.

O10611AB

RIM - W9-38 double bevel, for 10-38 tires on 5005AA wheel (SC)

2шт.

O10854AB

X

CLAMP - rear wheel mounting (Male) for 5005AA wheel (SC)

12шт.

5/8" X 3" N.C. FINISHED HEX. BOLTS (SC)

12шт.

O10855AB

X

CLAMP - rear wheel mounting (Female) for 5005AA wheel (SC)

12шт.

O10920AB

RIM - W10-38 double bevel, for 11-38 tires on 5005AA wheel (SC)

2шт.
