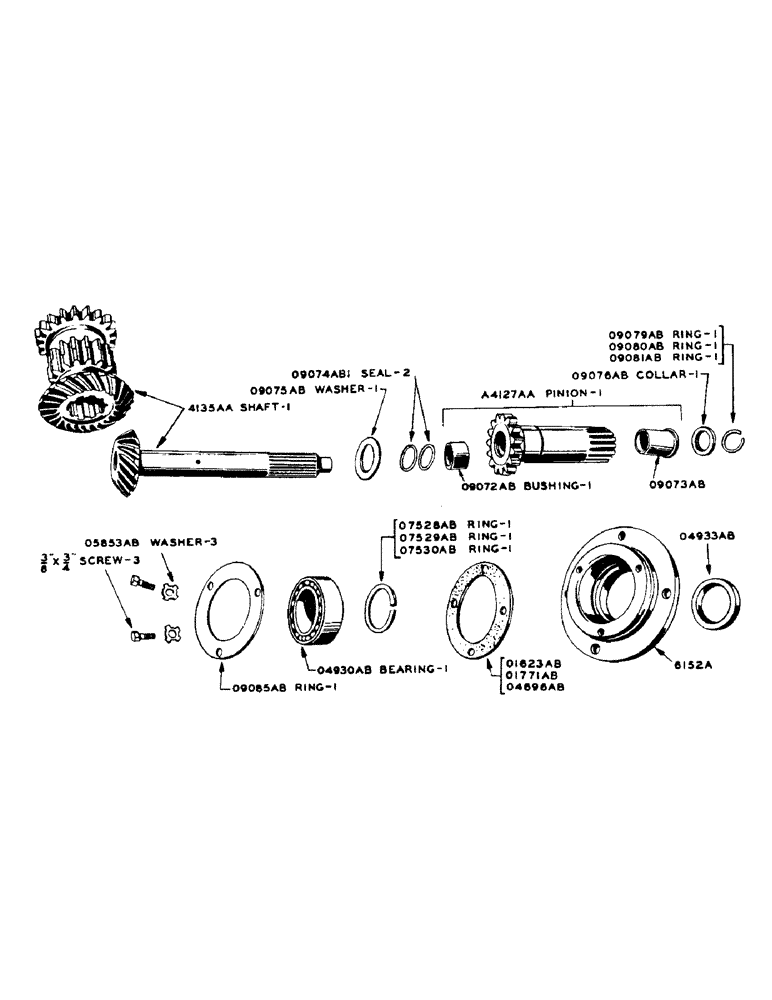

Запчасти Case IH SO-SERIES (051) - CLUTCH SHAFT, S, SC, SO (06) - POWER TRAIN

6152A

CARRIER - clutch shaft bearing (See 6219A)

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

1/2" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

3шт.

6218A

SLEEVE - clutch release bearing (For tractors with foot clutch) (S, SC)

1шт.

6219A

CARRIER - clutch shaft bearing (For tractors with foot clutch) (See 6152A) (S, SC)

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (S, SC)

3шт.

1/2" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (S, SC)

1шт.

A4127AA

PINION - PTO, and sleeve, with bushings

1шт.

4135AA

SHAFT - clutch, with pinion and bevel gear cluster (See note)

1шт.

O1623AB

SHIM - clutch shaft bearing carrier (No. 30 gauge)

4шт.

O1771AB

SHIM - clutch shaft bearing carrier (.005" thick)

3шт.

O4696AB

SHIM - clutch shaft bearing carrier (.003" thick)

4шт.

O4930AB

BEARING - clutch shaft, rear end (New Departure no. 5210)

1шт.

O4933AB

X

OIL SEAL - clutch shaft

1шт.

O5853AB

WASHER - lip, clutch shaft bearing retainer

3шт.

O7528AB

X

SNAP RING - PTO pinion and sleeve (.0800")

1шт.

O7529AB

SNAP RING - PTO pinion and sleeve (.0815")

1шт.

O7530AB

SNAP RING - PTO pinion and sleeve (.0830")

1шт.

O7628AB

GAUGE - for setting bevel gears

1шт.

O8044AB

BEARING - clutch release (Aetna no. A1511) (For tractors with foot clutch) (S, SC)

1шт.

O9072AB

BUSHING - for pinion end of A4127AA sleeve

1шт.

O9073AB

BUSHING - flanged, for A4127AA sleeve

1шт.

O9074AB1

OIL SEAL - clutch shaft and PTO pinion

2шт.

O9075AB

WASHER - thrust, clutch shaft and PTO pinion

1шт.

O9076AB

COLLAR - thrust, clutch shaft

1шт.

O9079AB

SNAP RING - clutch shaft (.0775")

1шт.

O9080AB

SNAP RING - clutch shaft (.0805")

1шт.

O9081AB

SNAP RING - clutch shaft (.0835")

1шт.

O9085AB

RING - retainer, clutch shaft bearing

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.C. thread

3шт.

O9435AB

BEARING - pilot, clutch shaft, fly wheel end (New Departure no. 8504)

1шт.
