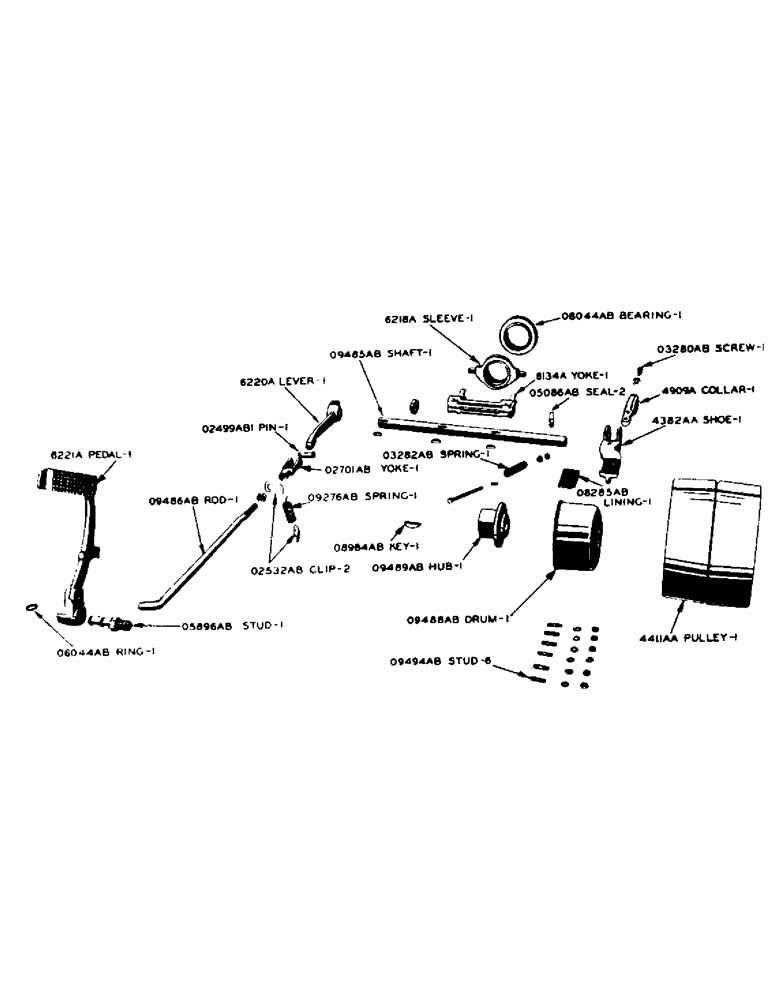

Запчасти Case IH SO-SERIES (050) - FOOT CLUTCH THROWOUT PARTS (06) - POWER TRAIN

4909A

COLLAR - clutch brake adjusting

1шт.

5/16" X 4" N.F. HEX. HD. CAP SCREW W/DBL. HEX. NUT AND PLAIN WASHER

1шт.

3/8" X 1-1/2" N.C. FLAT POINT SET SCREW W/HEX. JAM NUT

1шт.

6134A

YOKE - clutch throwout

1шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

6218A

SLEEVE - clutch release bearing

1шт.

6220A

LEVER - clutch throwout shaft

1шт.

1/2" X 2-1/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

1шт.

6221A

PEDAL - foot clutch

1шт.

1/8" 45 DEGREE LINCOLN FITTING NO. 5200

1шт.

6223A

SHOE - clutch brake (Use 4382AA)

1шт.

4382AA

SHOE - clutch brake, with lining

1шт.

O2499AB1

X

PIN - yoke end, clutch throwout rod

1шт.

1/8" X 1" COTTER PIN

1шт.

O2532AB

CLIP - O9276AB return spring

2шт.

O2701AB

X

YOKE END - adjustable, clutch throwout rod

1шт.

O3280AB

SET SCREW - clutch brake adjusting collar

1шт.

1/2" N.C. HEX. JAM NUT

1шт.

O3282AB

SPRING - clutch brake shoe

1шт.

O5086AB

X

OIL SEAL - clutch throwout shaft

2шт.

O5896AB

STUD - clutch pedal

1шт.

3/4" std. lockwasher

3шт.

O6044AB

X

SNAP RING - clutch pedal stud

1шт.

O8044AB

BEARING - clutch release (Aetna no. A1511)

1шт.

O8285AB

X

LINING - clutch brake shoe

1шт.

.146 X 8/16" BRASS TUBULAR RIVET NO. 2561

6шт.

O9276AB

X

SPRING - foot pedal return

1шт.

O9485AB

SHAFT - clutch throwout

1шт.

#15 WOODRUFF KEY

3шт.

O9486AB

ROD - clutch throwout

1шт.

3/16" X 1-1/4" COTTER PIN

1шт.

1/2" N.F. HEX. NUT, light

1шт.
