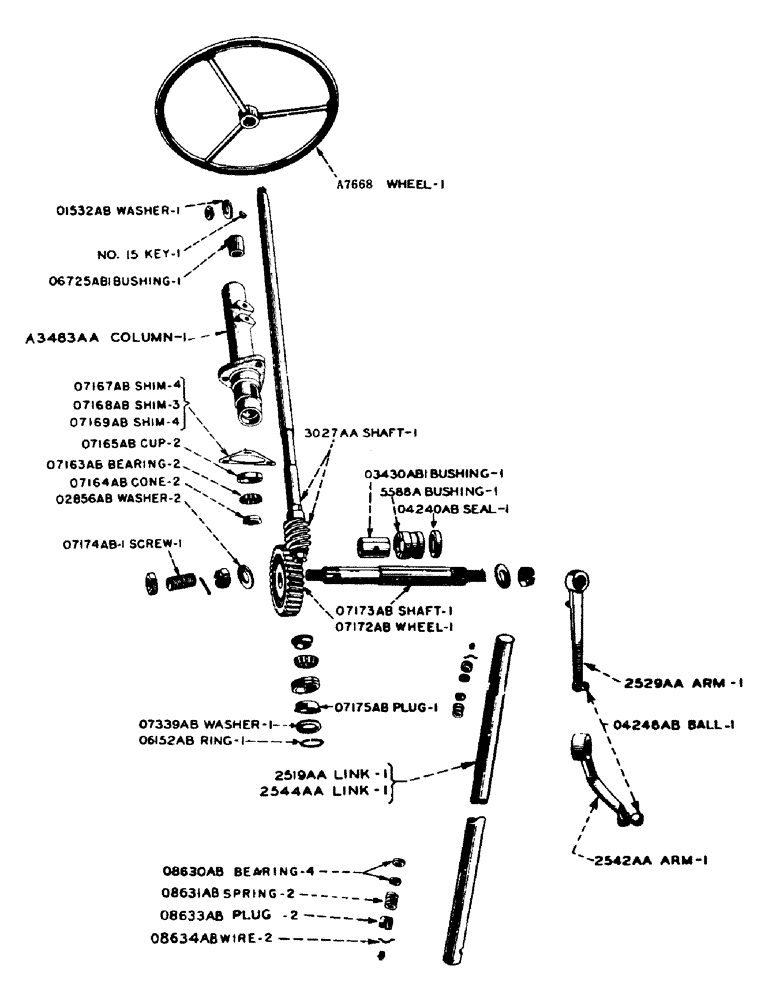

Запчасти Case IH SO-SERIES (100) - STEERING GEAR, TRACTOR S/N 8037655 AND AFTER, S, SC, SC-4, SO (05) - STEERING
№
Артикул
Название
Примечание
Количество
A7668
WHEEL
- steering
1шт.
5588A
BUSHING - steering drop arm shaft, outer
1шт.
5944A
COLUMN (Use A3483AA)
1шт.
2519AA
LINK - steering drag (SC)
1шт.
1/8" STR. LINCOLN FITTING NO. 5000 (SC)
2шт.
2529AA
ARM - steering drop, with O4248AB ball (SC)
1шт.
2542AA
ARM - steering drop, with O4248AB ball (S, SO)
1шт.
2544AA
LINK - steering drag (S, SO)
1шт.
1/8" STR. LINCOLN FITTING NO. 5000 (S, SO)
2шт.
2851AA
ARM - steering drop, with O1241AB ball (SC-4)
1шт.
3027AA
SHAFT AND WORM - steering wheel (S, SC, SC-4)
1шт.
NO. 15 WOODRUFF KEY (S, SC, SC-4)
1шт.
3/4" N.F. HEX. JAM NUT (S, SC, SC-4)
1шт.
A3483AA
COLUMN - steering shaft, with O6725AB1 bushing
1шт.
1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER
3шт.
1/8" STR. LINCOLN FITTING NO. 5000
1шт.
4517AA
LINK - steering drag (SC-4)
1шт.
1/8" STR. LINCOLN FITTING NO. 5000 (SC-4)
2шт.
4799AA
SHAFT AND WORM - steering wheel (SO)
1шт.
NO. 15 WOODRUFF KEY (SO)
1шт.
3/4" N.F. HEX. JAM NUT (SO)
1шт.
O1241AB
BALL - steering drop arm (SC-4)
1шт.
O1532AB
WASHER - steering shaft
1шт.
O2856AB
WASHER - steering drop arm shaft
2шт.
O3430AB1
BUSHING - steering drop arm shaft, inner
1шт.
O4240AB
X
OIL SEAL - steering drop arm shaft
1шт.
O4248AB
BALL - steering drop arm (S, SC, SO)
1шт.
O6152AB
SNAP RING - steering worm bearing retainer washer
1шт.
O6725AB1
X
BUSHING - steering shaft column
1шт.
O7163AB
X
ROLLER - steering gear bearing, assembly (Timken no. 11BC)
2шт.
O7164AB
X
CONE - bearing, steering gear (Timken no. 12CB)
2шт.
O7165AB
X
CUP - bearing, steering gear (Timken no. 13C)
2шт.
O7167AB
SHIM - steering column (.033" thick)
4шт.
O7168AB
SHIM - steering column (.005" thick)
3шт.
O7169AB
SHIM - steering column (No. 30 gauge)
4шт.
O7172AB
WHEEL - steering worm
1шт.
O7173AB
SHAFT - steering drop arm
1шт.
7/8" N.F. CASTELLATED NUT, light
2шт.
1/8" X 1-1/4" COTTER PIN
2шт.
O7174AB1
SCREW - adjusting, steering drop arm shaft
1шт.
1" N.F. HEX. JAM NUT, light
1шт.
O7175AB
PLUG - steering column end
1шт.
O7339AB
WASHER - steering worm bearing retainer
1шт.
O2003AB
X
SCREW - adjusting (Mfrs. no. 20DP3) PARTS FOR 4517AA STEERING DRAG LINK
2шт.
1/8" X 2" COTTER PIN PARTS FOR 4517AA STEERING DRAG LINK
2шт.
O2004AB
BEARING - drag link (Mfrs. no. 20DB3) PARTS FOR 4517AA STEERING
4шт.
O2005AB
X
SPRING - drag link (Mfrs. no. 20DS5) PARTS FOR 4517AA STEERING
2шт.
O3938AB1
X
SEAT AND SPACER - drag link (Mfrs. no. 20DE15) PARTS FOR 4517AA STEERING
2шт.
Выбрано товаров: 48
